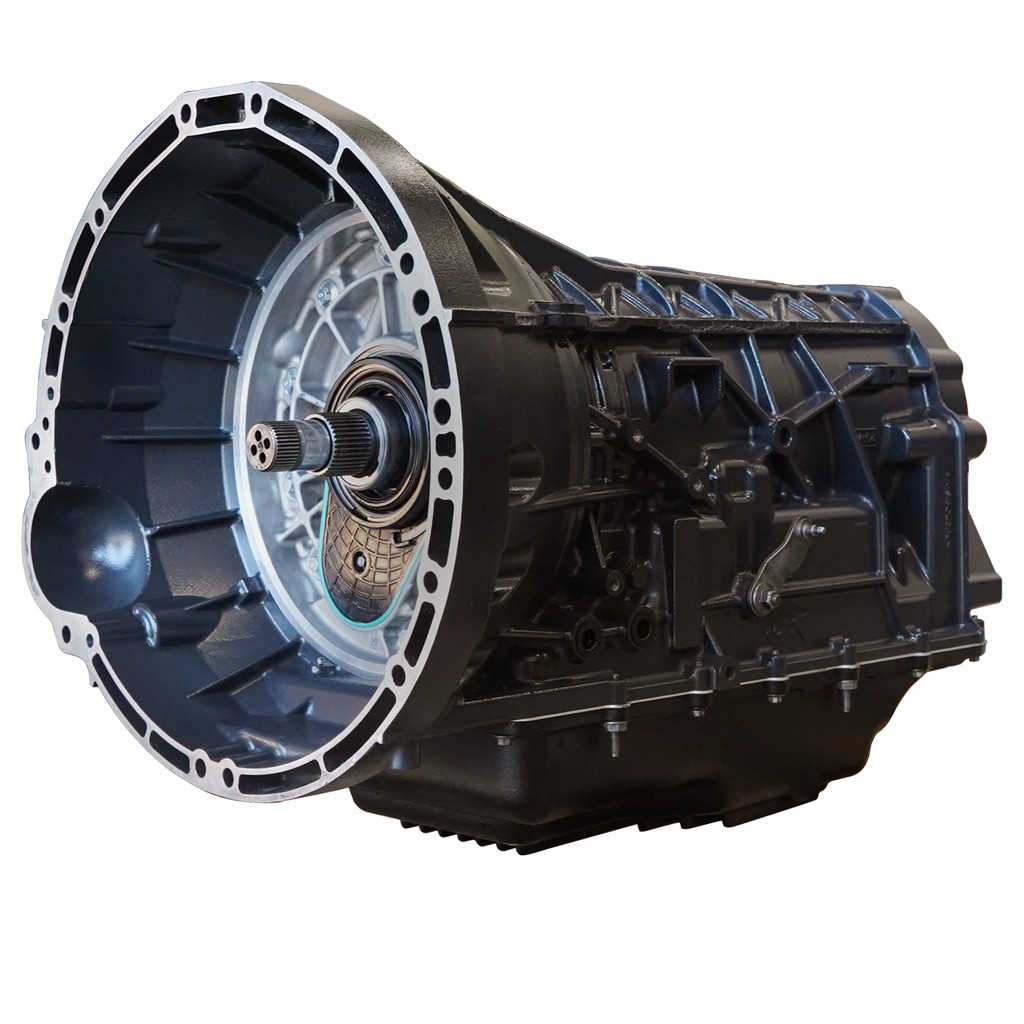

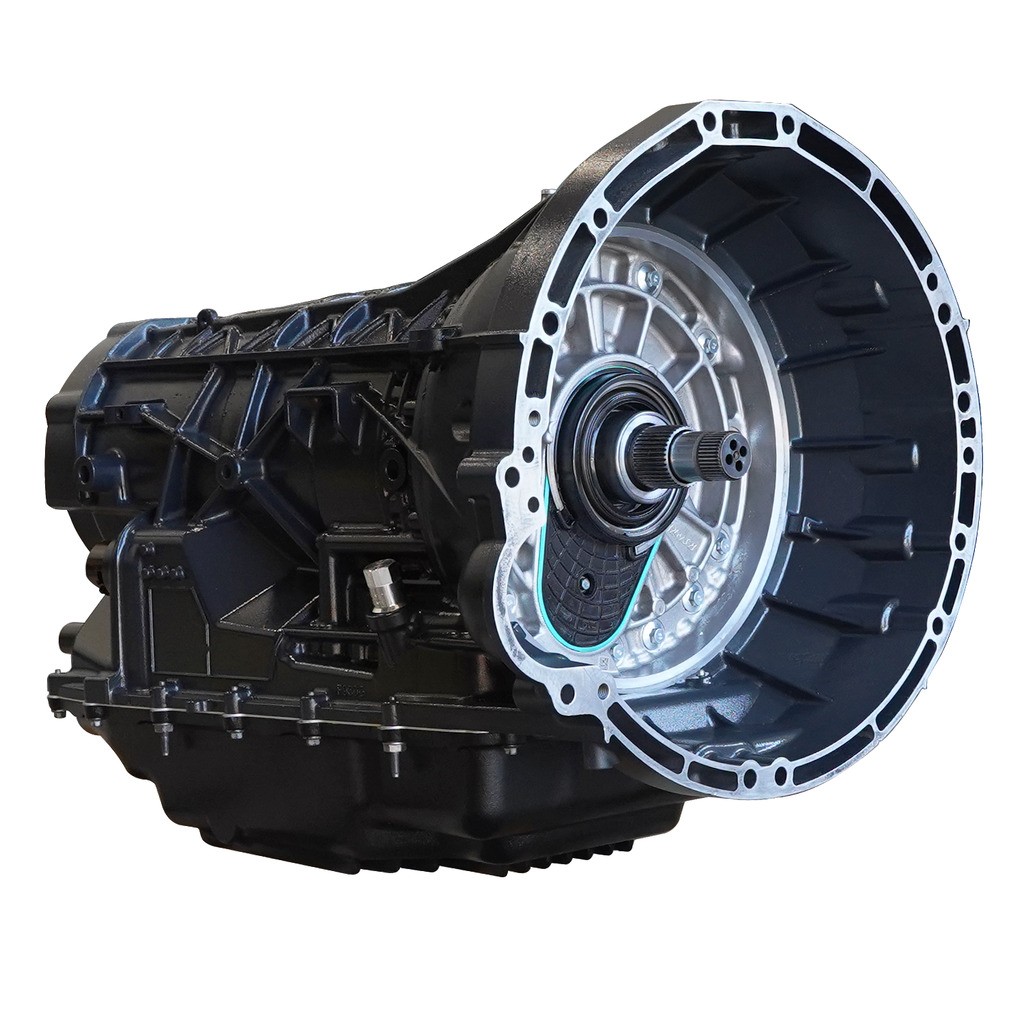

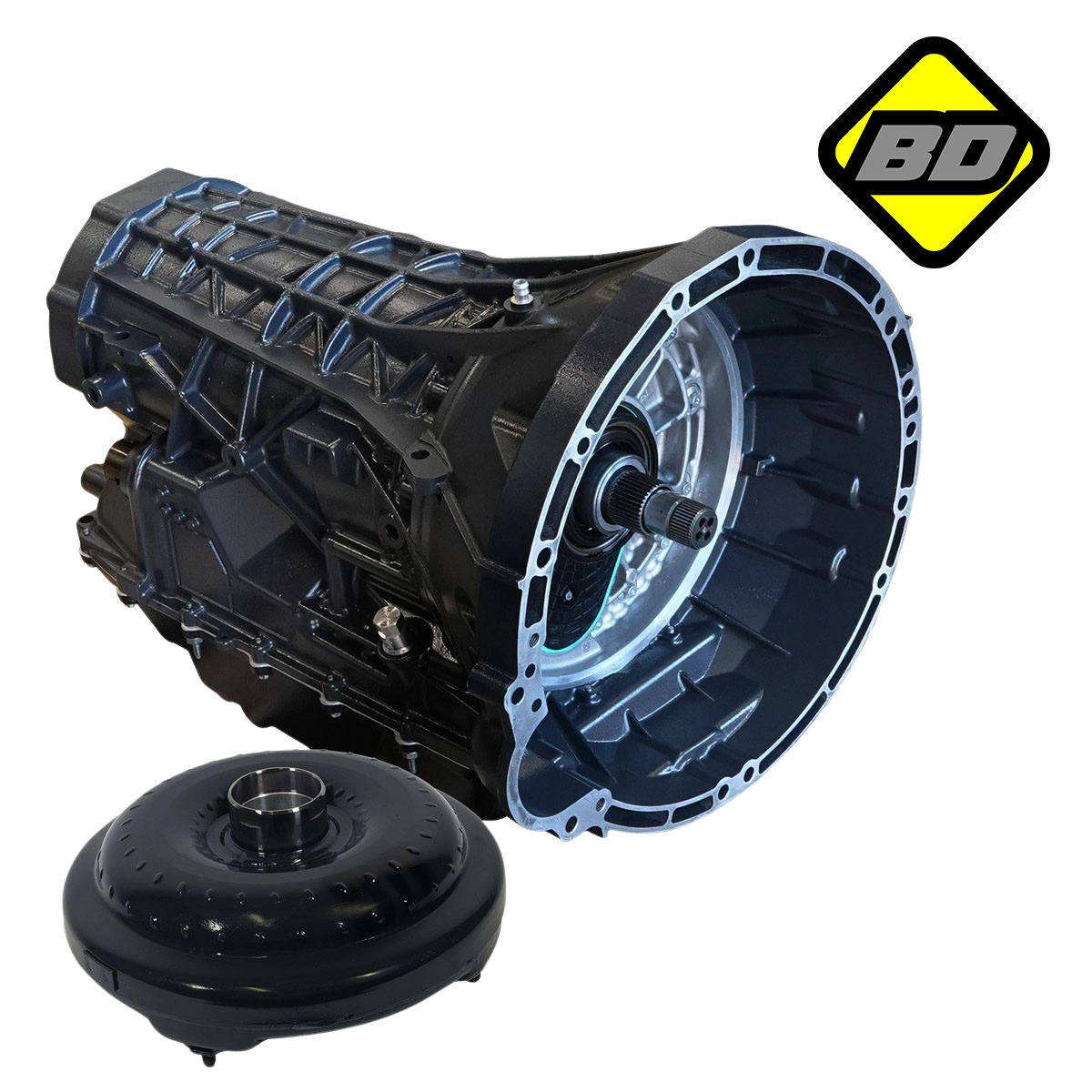

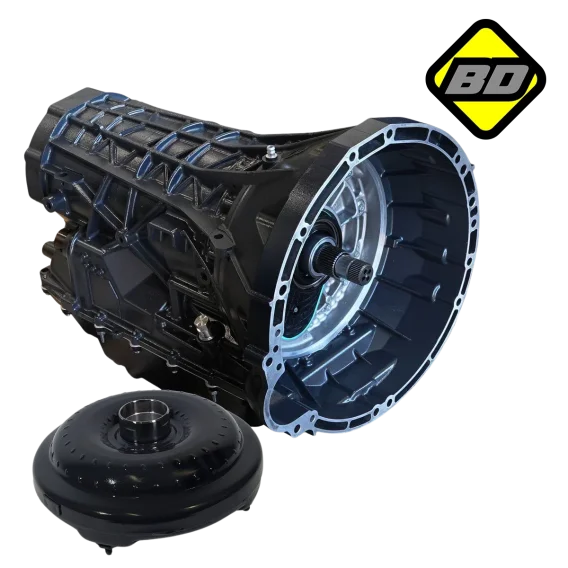

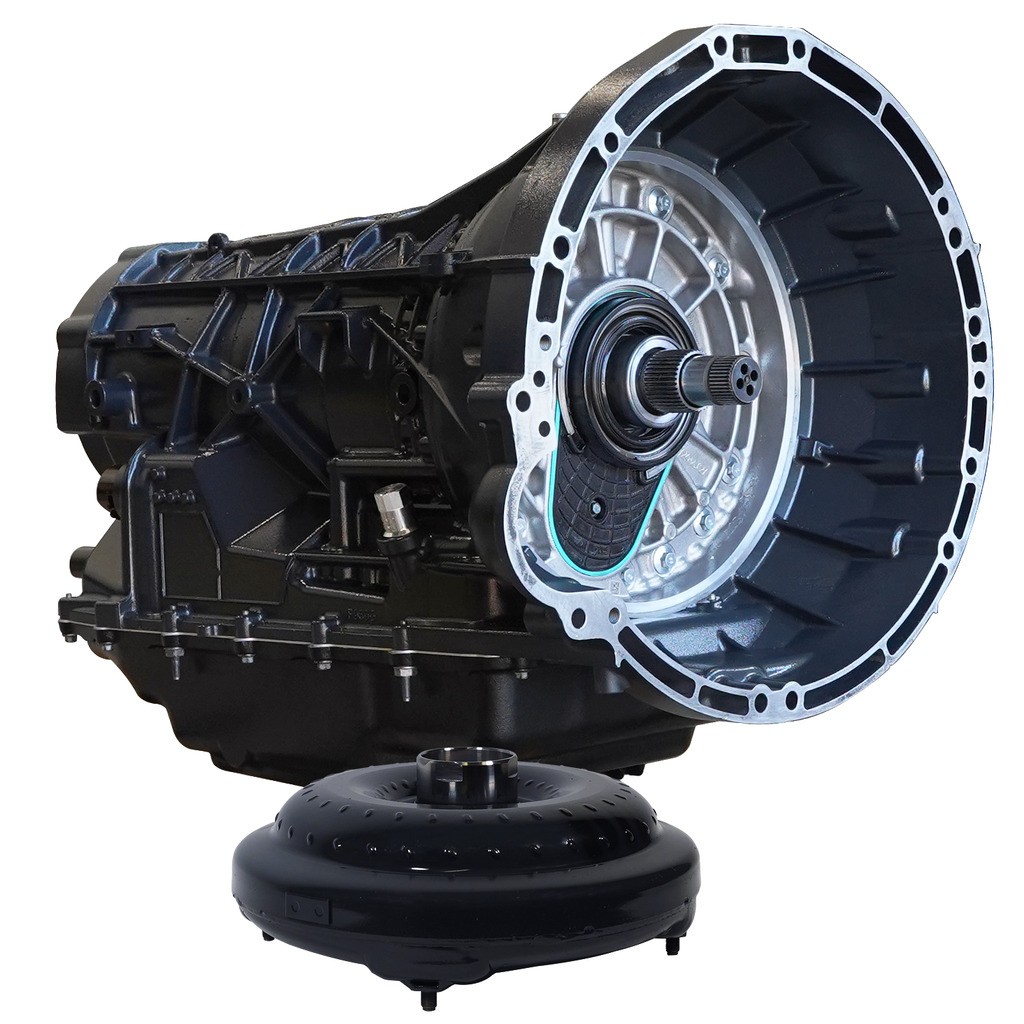

        ROADMASTER FORD 10R80 TRANSMISSION & CONVERTER PACKAGE F-150 5.0L V8 18-2020 4WD

        SKU: 1064624SS-BKJX

        ROADMASTER FORD 10R80 TRANSMISSION & CONVERTER PACKAGE F-150 5.0L V8 2018-2020 4WD

        • Brand new modified valve body to increase line pressure by approx. 30% for increased clutch holding.
        • Easy to flush transmission fluid with drain plug, and can attach a temperature sensor if desired.
        • DOES NOT FIT RAPTOR MODELS

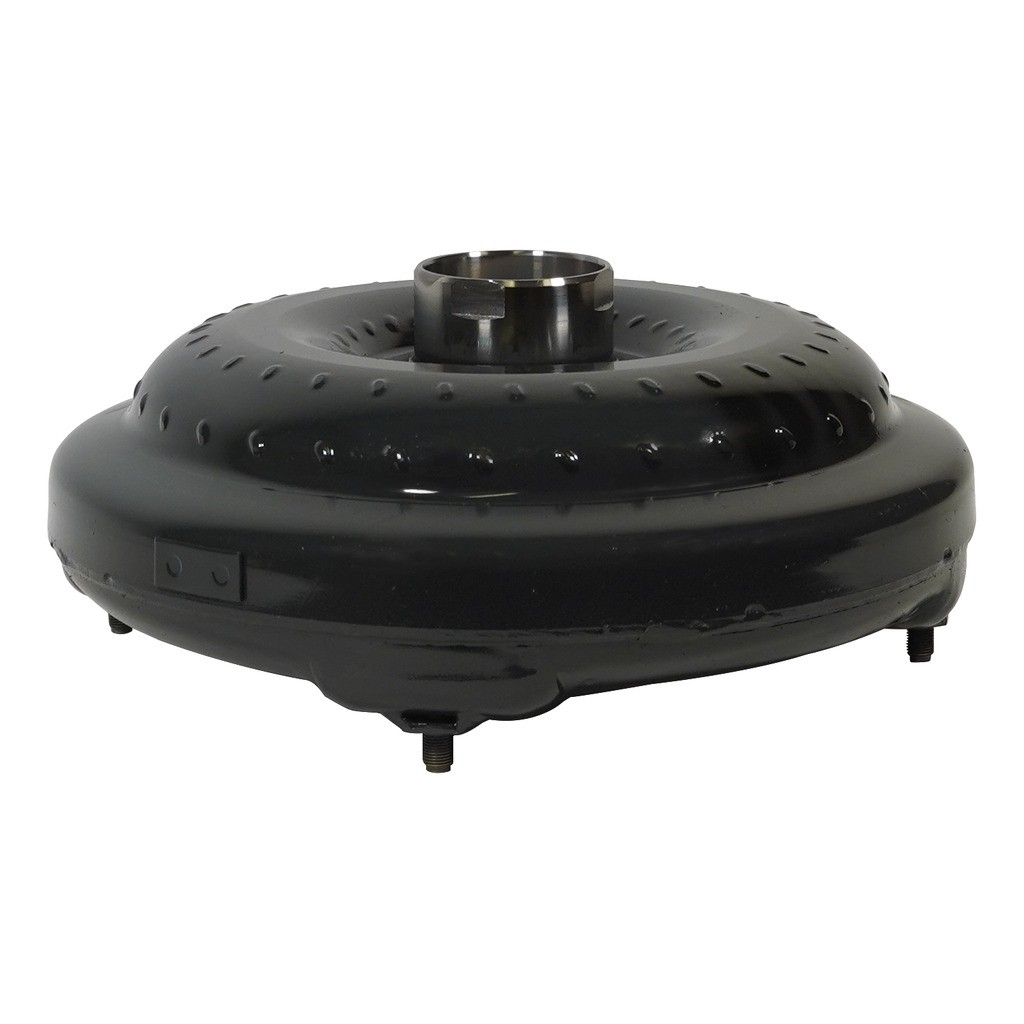

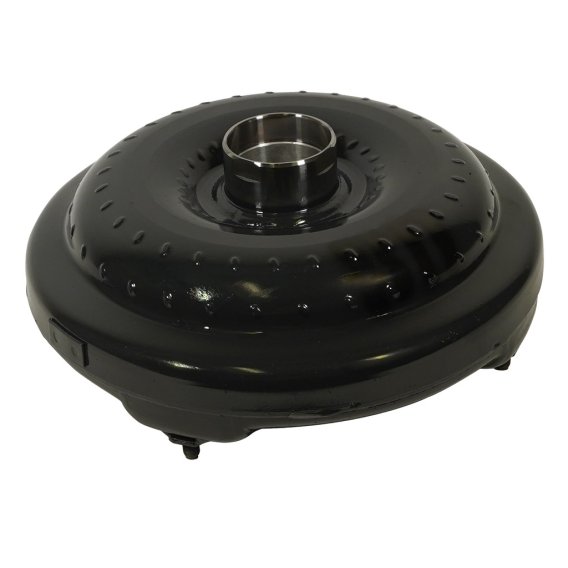

        • ProForce Torque Converter with new friction material.
        • New Deep Sump Transmission Oil Pan. Extra 2 quarts of fluid capacity.
        • Revised CDF drum with retaining feature to prevent sleeve failure common on OEM units.
        • New OEM clutches and steels.
        • Smooth and quick shifts.
        • Increased fluid capacity helps regulate temperature and extend fluid life.
        • Will not have to worry about long shift delays or flares due to the leaking CDF drum.
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $6382.95 +$2750.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        The BD 10R80 RoadMaster Transmission increases reliability and longevity for stock or slightly modified trucks. The common issues, including the leaking CDF Drum, are solved in this transmission. A brand-new modified valve body is installed to increase line pressure by approx. 30% to increase clutch holding capability and comes with a ProForce torque converter with new friction material. The additional fluid capacity held by the deep sump pan helps regulate transmission fluid temperatures and extend fluid service life.

          • SKU
            1064624SS-BKJX
          • Weight
            275 lbs
          • Barcode
            00990011410724
          • Dimensions (L x W x H)
            23.5 x 44.5 x 27.3 in
          • Manufacturer Part #
            1064624SS
        • Category
          Auto Trans & Converter Packages
        • Engine
          Gasoline
        • Make
          Ford
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1057932
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2018FordF-1504wd; Comes with torque converter; Ford scanner or equivalent required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly;; EngineBase: 5.0 L (302 cid) (4951 cc) V8 Bore: 3.63 in.(92.2mm) Stroke: 3.65 in.(92.7mm);
        2019FordF-1504wd; Comes with torque converter; Ford scanner or equivalent required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly;; EngineBase: 5.0 L (302 cid) (4951 cc) V8 Bore: 3.63 in.(92.2mm) Stroke: 3.65 in.(92.7mm);
        2020FordF-1504wd; Comes with torque converter; Ford scanner or equivalent required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly;; EngineBase: 5.0 L (302 cid) (4951 cc) V8 Bore: 3.63 in.(92.2mm) Stroke: 3.65 in.(92.7mm);
