        Scorpion S366SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350

        SKU: 1045802-BKJX

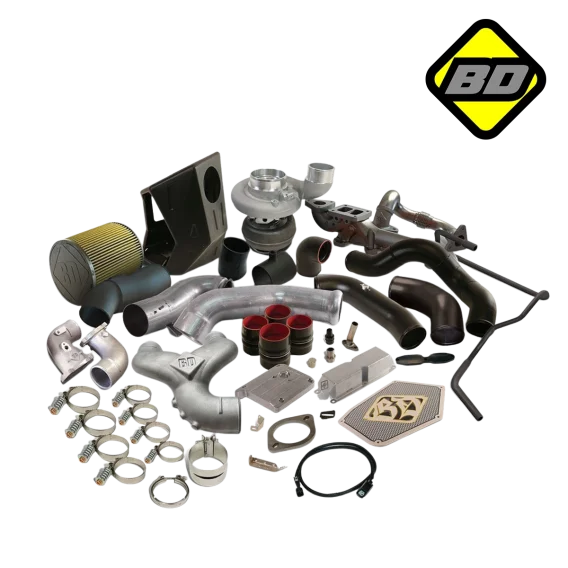

        Scorpion S366SX-E Turbo Kit - Ford 2011-2016 6.7L Power Stroke F250/F350

        • Borg Warner S366SX-E series turbocharger with FMW
        • Race tune required (not included)
        • 1.00 AR Ratio
        • BD 90-deg compressor cover with 2.75in outlet
        • BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
        • BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
        • BD high strength A356 aluminum intake horns
        • BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
        • BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
        • BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
        • BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
        • Stainless heat shield keeps heat in and intake temperatures down
        • Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
        • BD Boot Lock ready with boss positions on intake and outlets
        • Compatible with stock or aftermarket water-to-air intercooler

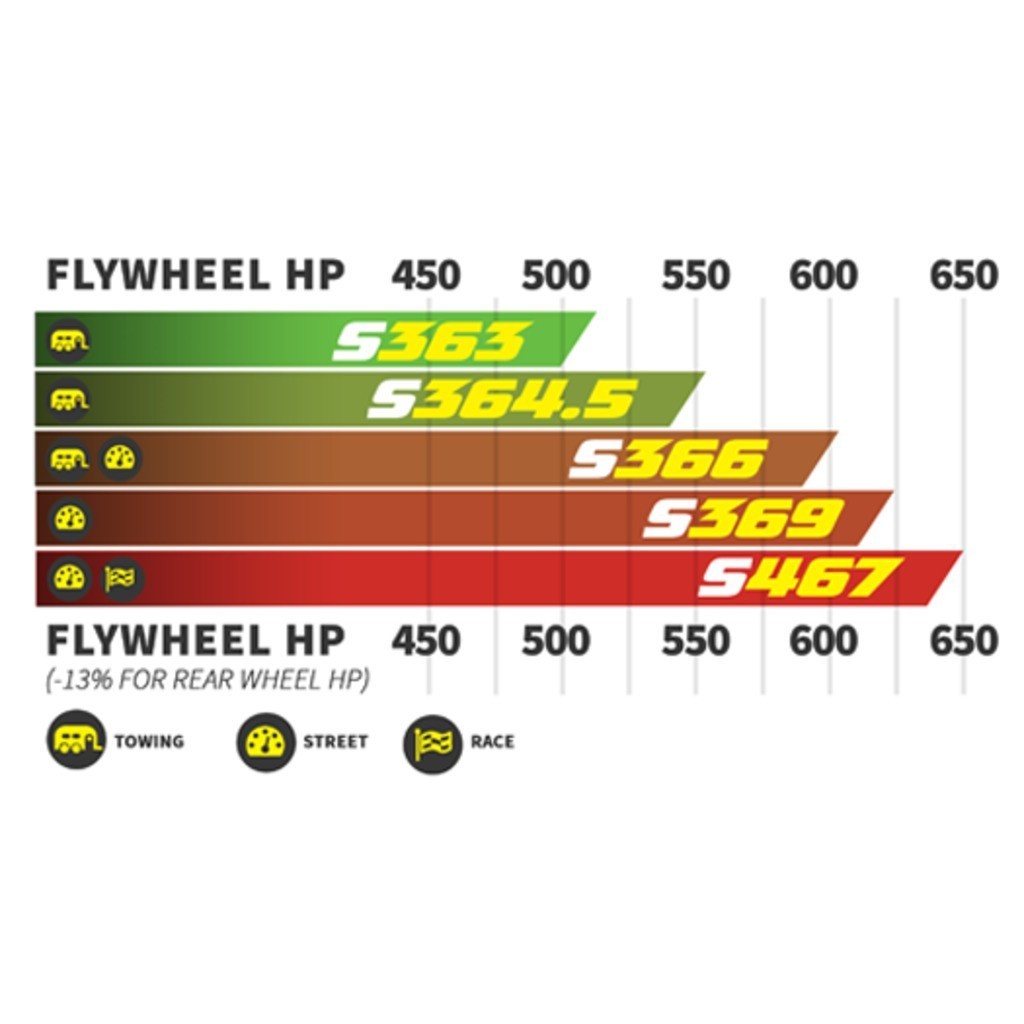

        • Larger turbochargers available for even higher horsepower
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $6128.95

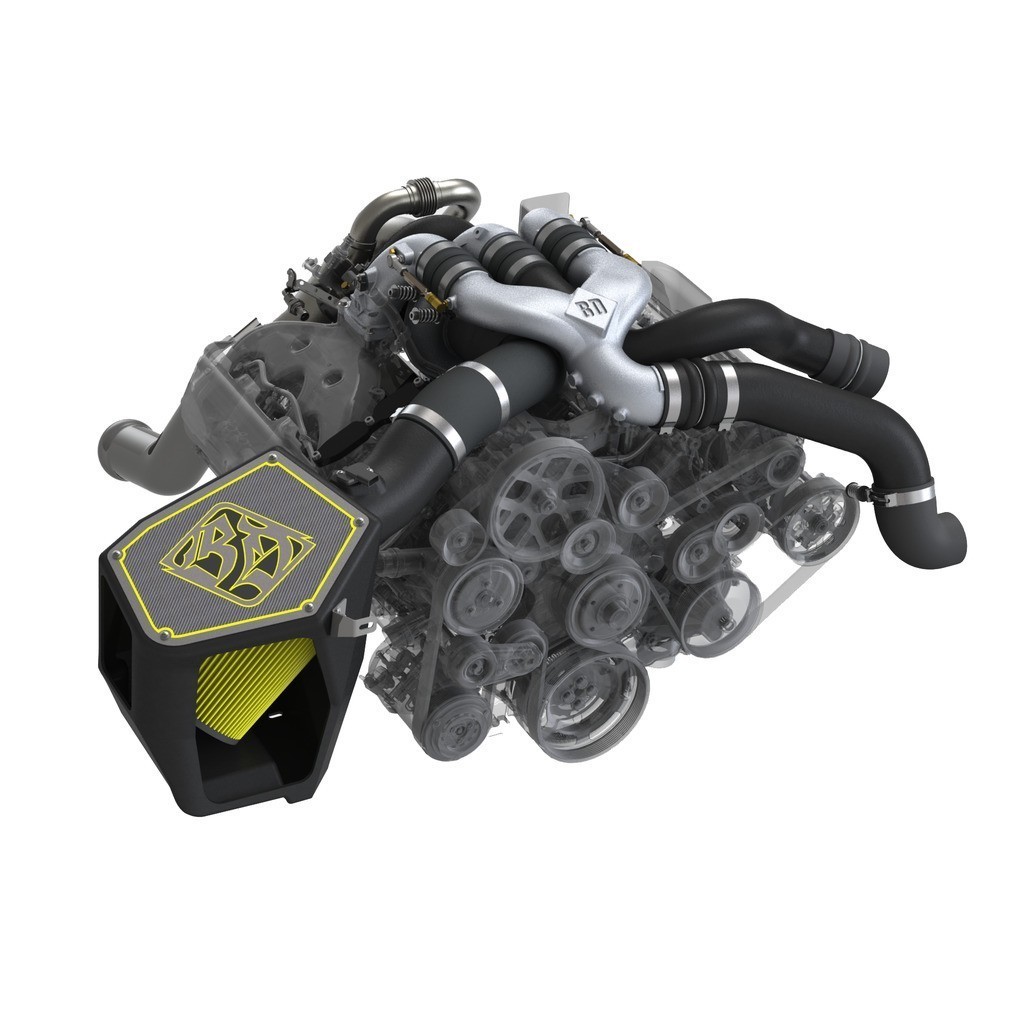

        Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.

          • SKU
            1045802-BKJX
          • Weight
            119 lbs
          • Barcode
            00990011405720
          • Dimensions (L x W x H)
            25 x 25 x 38 in
          • Manufacturer Part #
            1045802
        • Category
          Performance Kits
        • Engine
          6.7L Powerstroke 11-16
        • Make
          Ford
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1050470
        • Box 1 Height
          25.00
        • Box 1 Length
          25.00
        • Box 1 Weight
          89.00
        • Box 1 Width
          25.00
        • Box 2 Height
          13.00
        • Box 2 Length
          16.00
        • Box 2 Weight
          30.00
        • Box 2 Width
          13.00
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Off Road - This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2011FordF-250 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2011FordF-350 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2012FordF-250 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2012FordF-350 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2013FordF-250 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2013FordF-350 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2014FordF-250 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2014FordF-350 Super DutyRace tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2015FordF-250 Super DutyRace tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2015FordF-350 Super DutyRace tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2016FordF-250 Super DutyRace tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
        2016FordF-350 Super DutyRace tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm);
