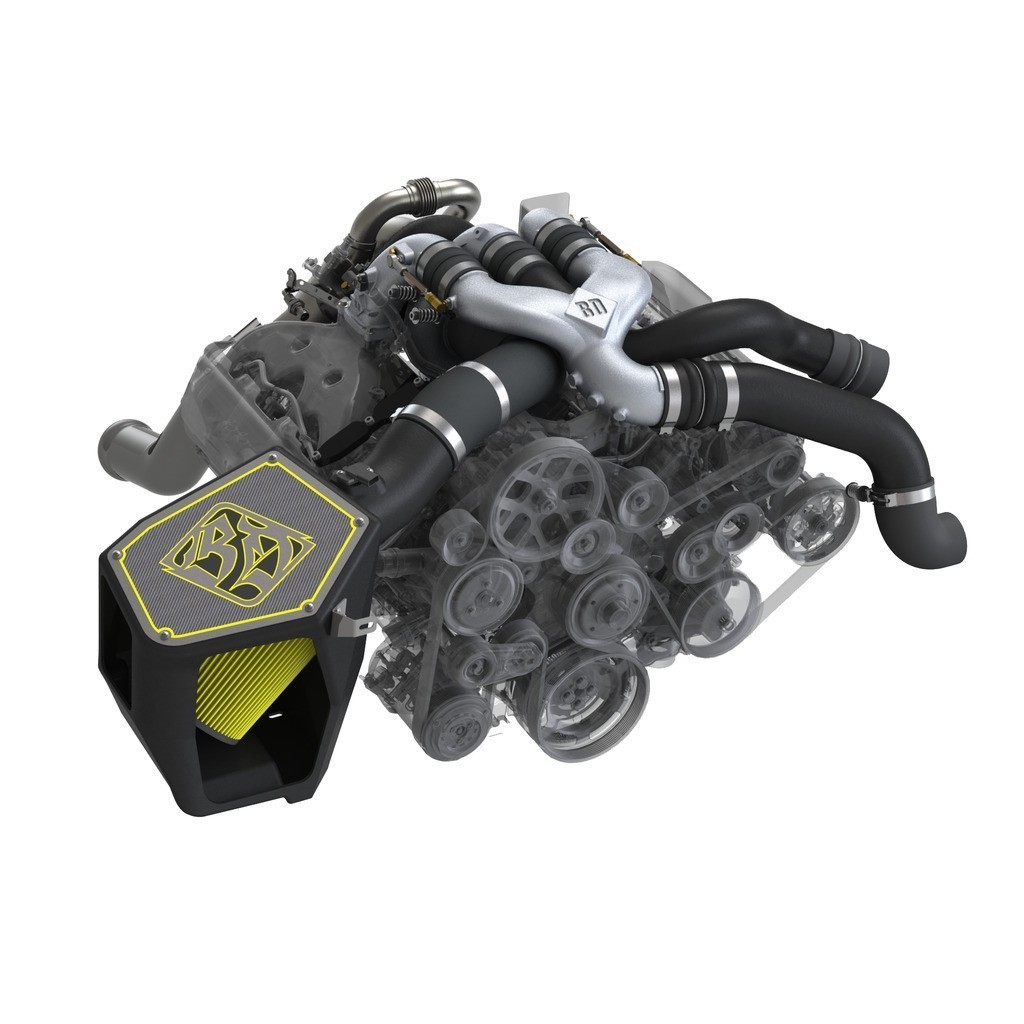

Scorpion S364.5SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350
Scorpion S364.5SX-E Turbo Kit - Ford 2011-2016 6.7L Power Stroke F250/F350
- Borg Warner S364.5SX-E series turbocharger with FMW
- Race tune required (not included)
- 0.91 AR Ratio
- BD 90-deg compressor cover with 2.75in outlet
- BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
- BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
- BD high strength A356 aluminum intake horns
- BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
- BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
- BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
- BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
- Stainless heat shield keeps heat in and intake temperatures down
- Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
- BD Boot Lock ready with boss positions on intake and outlets
- Compatible with stock or aftermarket water-to-air intercooler

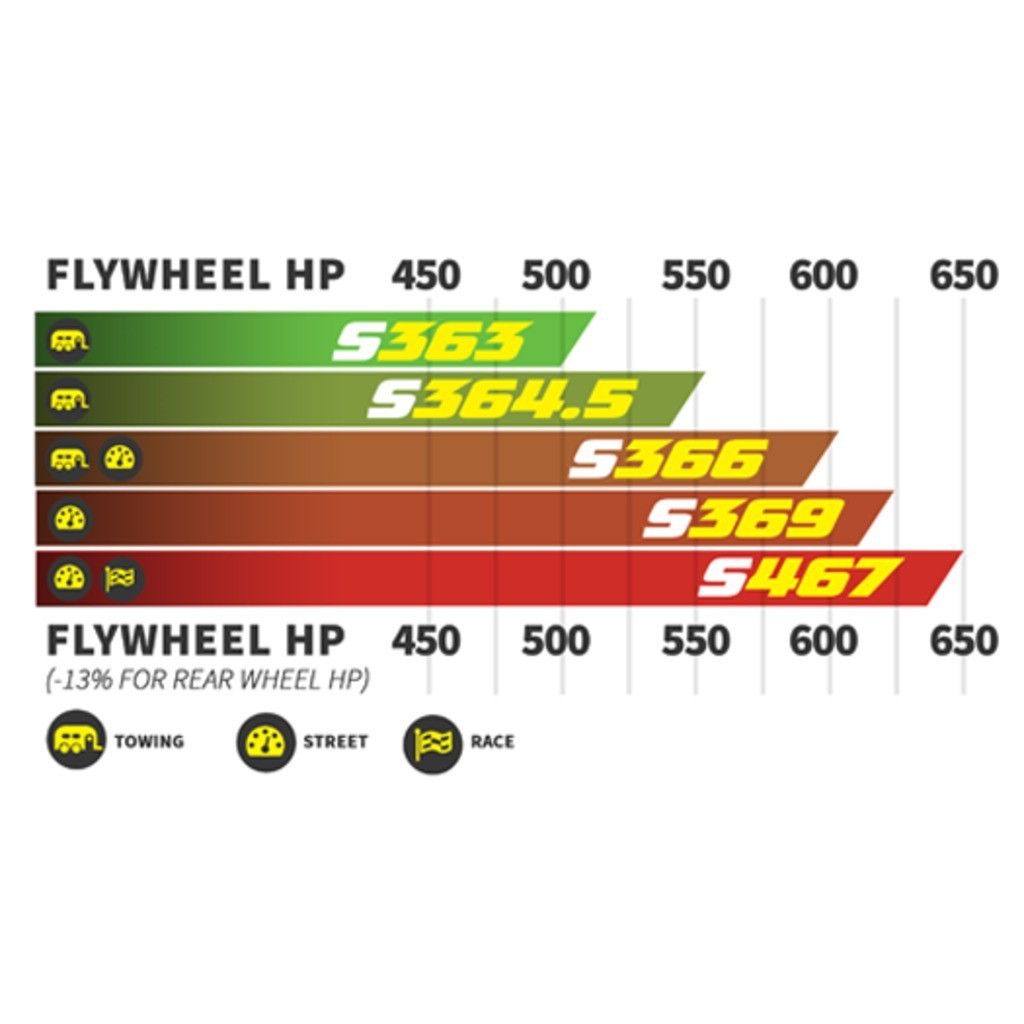

- Larger turbochargers available for even higher horsepower
Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.
- CategoryPerformance Kits
- Engine6.7L Powerstroke 11-16
- MakeFord
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1027150
- Box 1 Height24.00
- Box 1 Length24.00
- Box 1 Weight87.00
- Box 1 Width24.00
- Box 2 Height14.00
- Box 2 Length14.00
- Box 2 Weight41.00
- Box 2 Width14.00
- BrandBD Diesel
- Extended information
- EmissionsOff Road - This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2011 | Ford | F-250 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2011 | Ford | F-350 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2012 | Ford | F-250 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2012 | Ford | F-350 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2013 | Ford | F-250 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2013 | Ford | F-350 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2014 | Ford | F-250 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2014 | Ford | F-350 Super Duty | Race tune required (not included);; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2015 | Ford | F-250 Super Duty | Race tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2015 | Ford | F-350 Super Duty | Race tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2016 | Ford | F-250 Super Duty | Race tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2016 | Ford | F-350 Super Duty | Race tune required (not included); 1045805 Application Kit required for 2015-up;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
