        63mm FMW VNT Cheetah Turbocharger 2011-2016 GM 2500/3500HD Duramax LML Fleece Performance

        SKU: FPE-LML-VNT-63-FMW-N-FQWW

        63mm FMW Duramax VNT Cheetah Turbocharger—drop-in, 2011-2016 Duramax, 650HP, Fleece Performance, forged milled wheel, high flow turbine, fast spool, stock-appearing, variable nozzle, dual purpose, towing, sled pulling, diesel performance, upgrade, 40-45 PSI boost, Garrett internals, 360 thrust bearings, high flow exhaust, aftermarket tuning, torque, throttle response.

        0.0
        Fleece Performance
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: Fleece Performance
        • $3841.00

        Out of stock

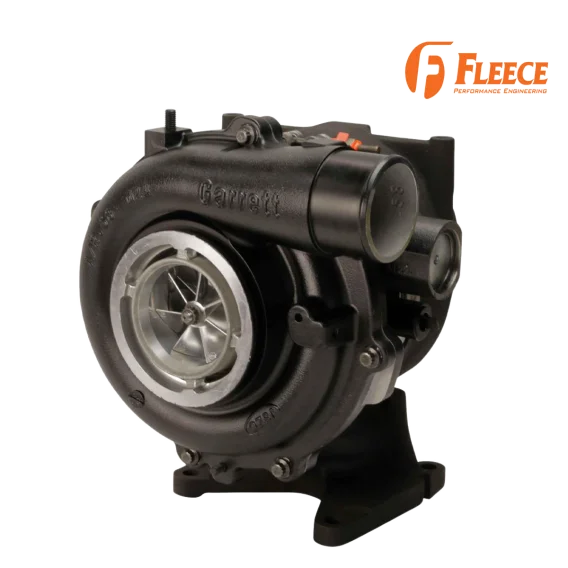

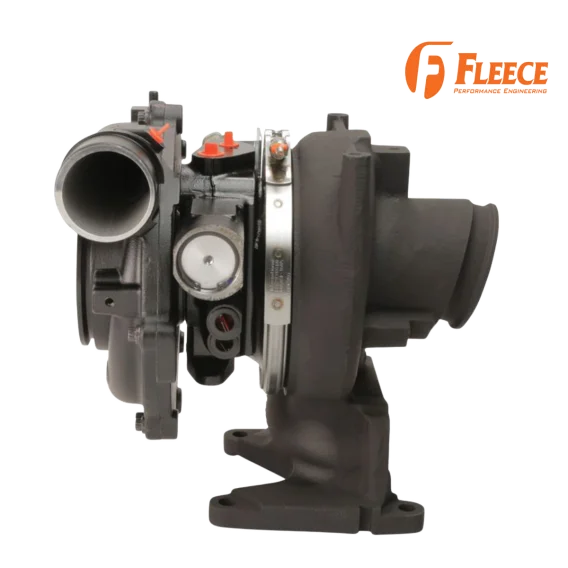

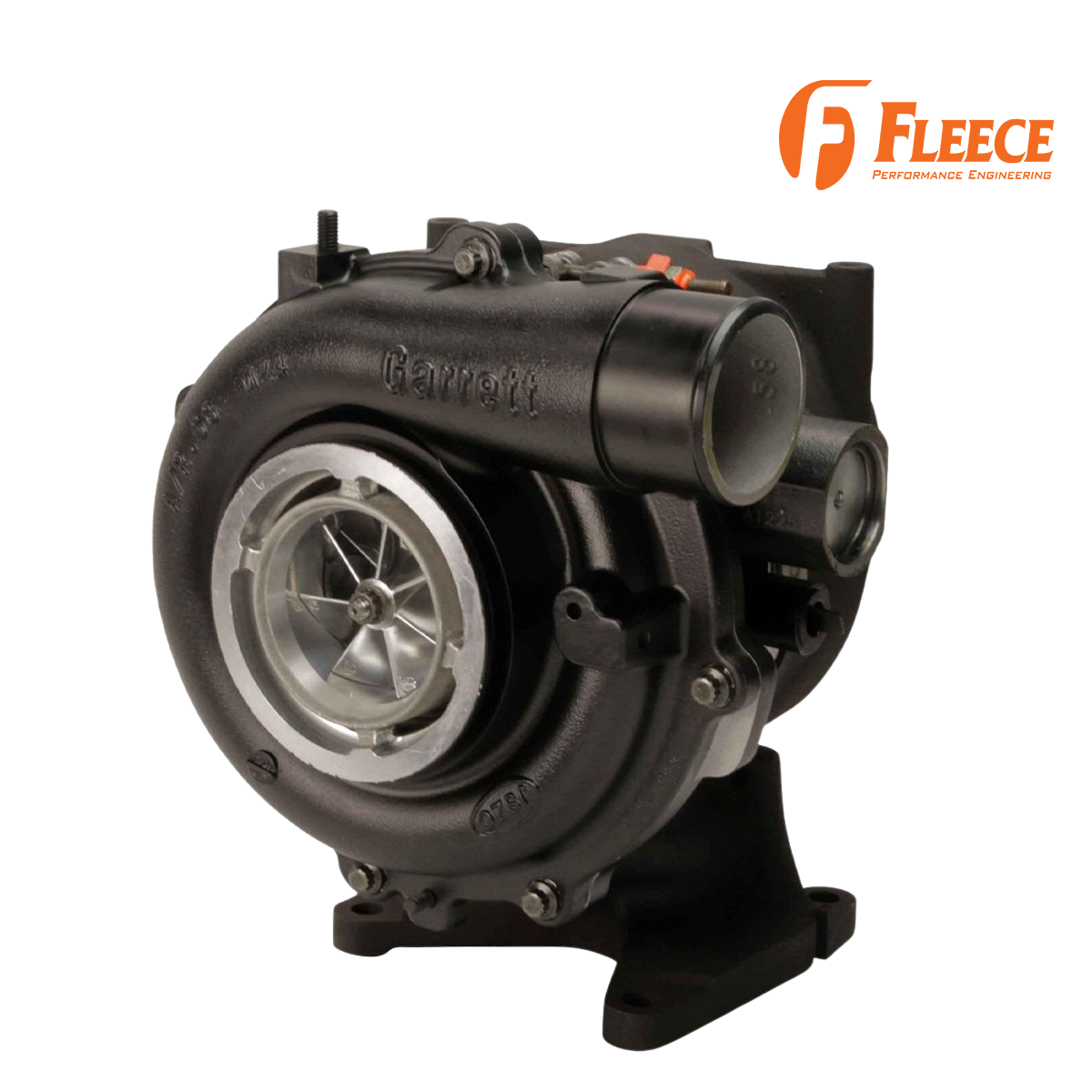

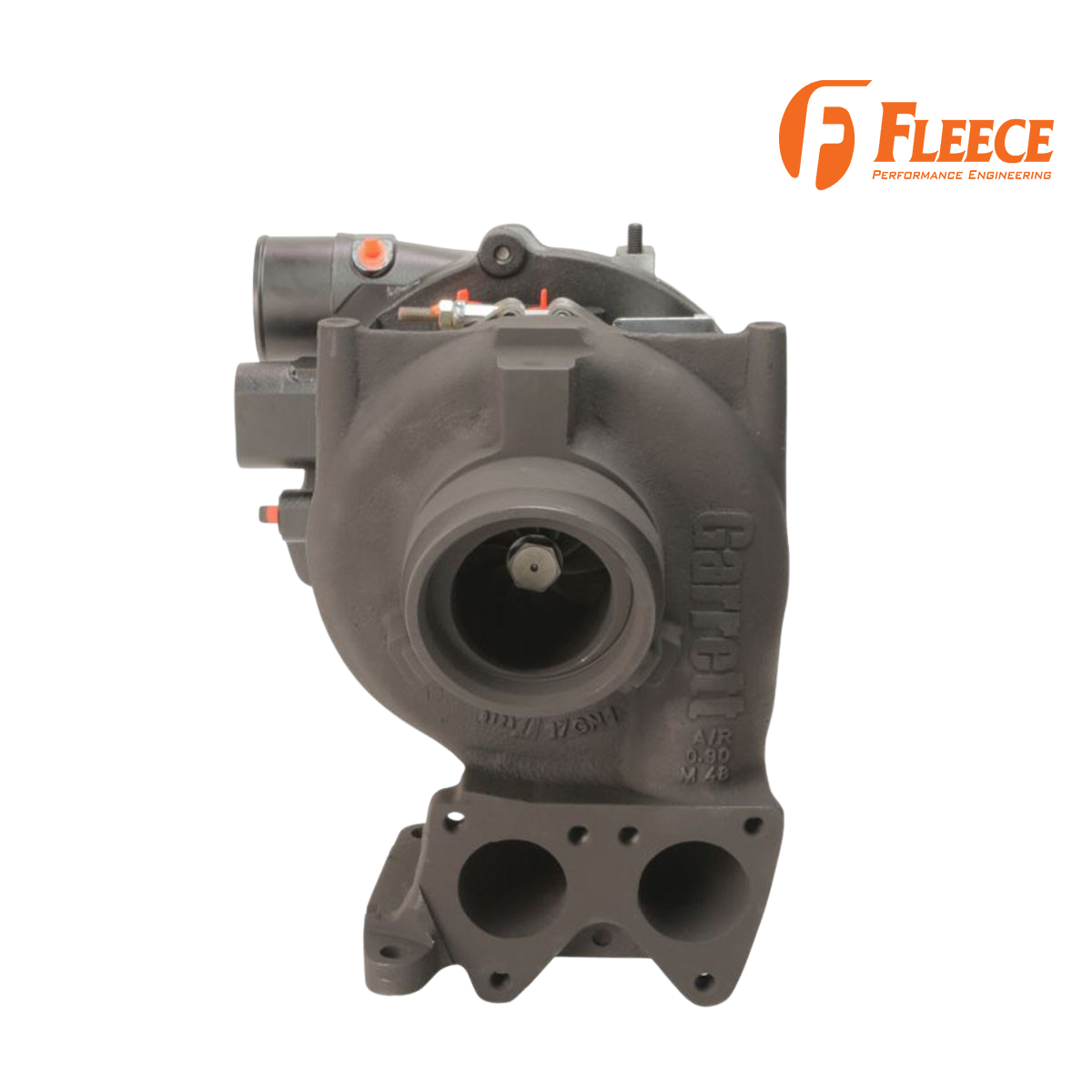

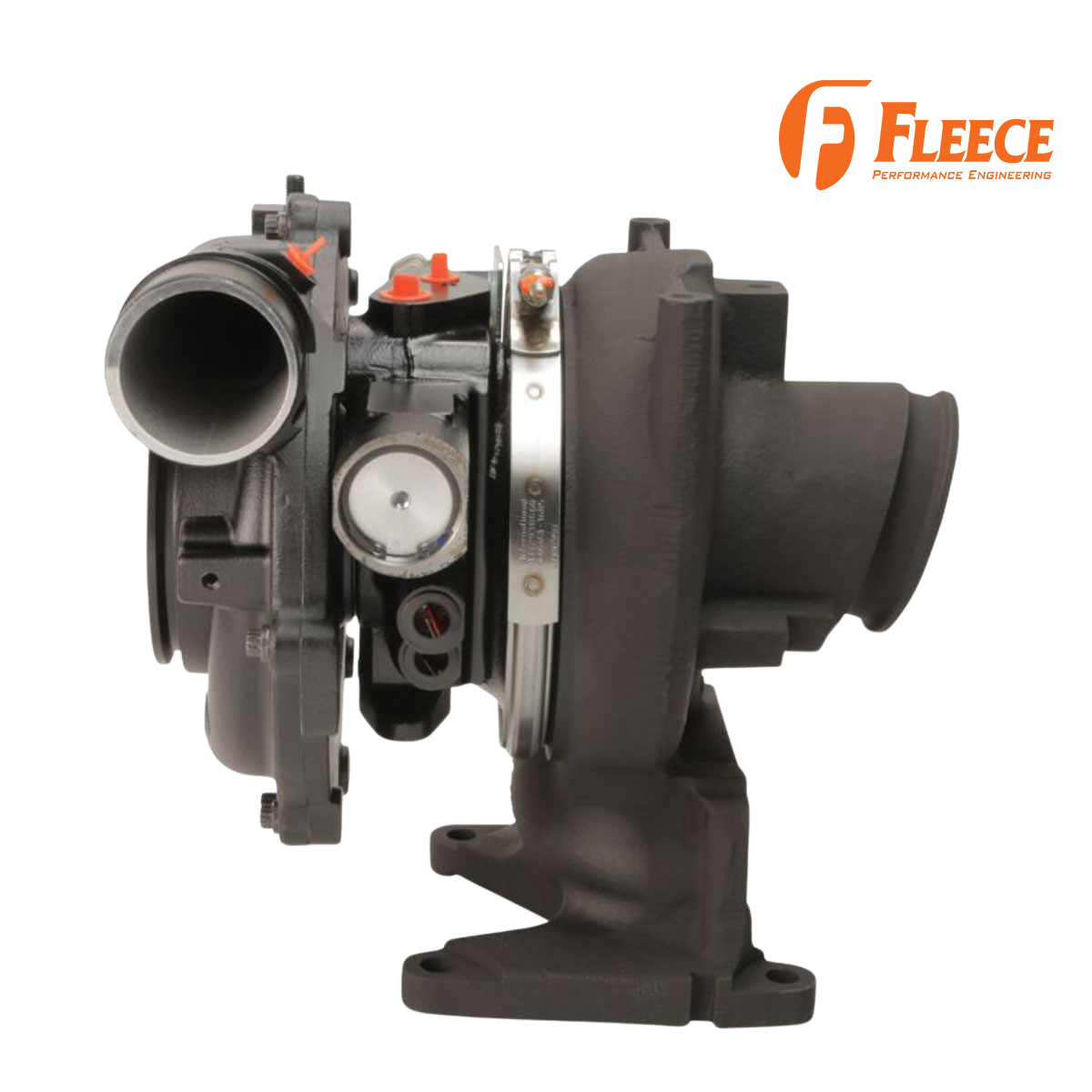

        The 63mm FMW Duramax VNT Cheetah Turbocharger is a drop-in replacement turbocharger for 2011-2016 Duramax diesels. It comes with a Fleece Performance Engineered 63mm FMW compressor wheel and high flow Cheetah turbine wheel.

        This drop-in replacement turbo is guaranteed to enhance your driving experience. You'll enjoy the spool up and throttle response of a small turbo and still get the big top end power you're looking for. Rated at 650 RWHP this is the ultimate combination for dual purpose applications.

        If you are towing during the week, and sled pulling on the weekend, the 63mm VNT Cheetah is just the ticket.

        Aftermarket tuning and aftermarket high flow exhaust are required for installation of this turbo.

        Stock Appearing:

        100 percent Stock Appearing. This turbocharger uses the stock housings with updated internals. This allows you to keep all factory systems intact yet allow you to safely run 40-45 PSI of boost.

        Proven Technology:

        These turbochargers are built with genuine Garrett Turbocharger parts. They feature upgraded shaft bearings and 360 degree thrust bearings. No other drop in replacement aftermarket VNT turbo on the market can offer you that.

        Powerful Yet Responsive:

        These turbochargers spool like stock, thanks to the variable nozzle technology (VNT) which allows the turbo to act smaller upon spool-up and then open up to flow more exhaust on the top end.

        FPE Exclusive FMW Wheel Technology:

        • Forged Milled Wheels are Stronger than Billet
        • Faster Spool-Up
        • Increased Throttle Response
        • Broader Torque Curve
        • 2.5 inch Work Stock Legal
        • The Ultimate Drop-In Replacement Performance Turbocharger
          • SKU
            FPE-LML-VNT-63-FMW-N-FQWW
          • Weight
            50 lbs
          • Barcode
            670875714861
          • Dimensions (L x W x H)
            15 x 15 x 15 in
          • Manufacturer Part #
            FPE-LML-VNT-63-FMW-N
        • Property 65 Warning
          CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
        • Vehicle Type
          Truck/SUV
        • Engine Year
          2011-2016
        • Color
          Black
        • Brand
          Fleece Performance
        • Country of Origin
          USA
        • Sold As
          Each
        • Warranty
          1 year/Unlimited mile nontransferable, limited parts only replacement Warranty
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2011ChevroletSilverado 2500 HD
        2011ChevroletSilverado 3500 HD
        2011GMCSierra 2500 HD
        2011GMCSierra 3500 HD
        2012ChevroletSilverado 2500 HD
        2012ChevroletSilverado 3500 HD
        2012GMCSierra 2500 HD
        2012GMCSierra 3500 HD
        2013ChevroletSilverado 2500 HD
        2013ChevroletSilverado 3500 HD
        2013GMCSierra 2500 HD
        2013GMCSierra 3500 HD
        2014ChevroletSilverado 2500 HD
        2014ChevroletSilverado 3500 HD
        2014GMCSierra 2500 HD
        2014GMCSierra 3500 HD
        2015ChevroletSilverado 2500 HD
        2015ChevroletSilverado 3500 HD
        2015GMCSierra 2500 HD
        2015GMCSierra 3500 HD
        2016ChevroletSilverado 2500 HD
        2016ChevroletSilverado 3500 HD
        2016GMCSierra 2500 HD
        2016GMCSierra 3500 HD
        2001ChevroletSilverado 2500 HD
        2001ChevroletSilverado 3500
        2001GMCSierra 2500 HD
        2001GMCSierra 3500
        2002ChevroletSilverado 2500 HD
        2002ChevroletSilverado 3500
        2002GMCSierra 2500 HD
        2002GMCSierra 3500
        2003ChevroletSilverado 2500 HD
        2003ChevroletSilverado 3500
        2003GMCSierra 3500
        2003GMCSierra 2500 HD
        2004ChevroletSilverado 2500 HD
        2004ChevroletSilverado 3500
        2004GMCSierra 3500
        2004GMCSierra 2500 HD
        2005ChevroletSilverado 2500 HD
        2005ChevroletSilverado 3500
        2005GMCSierra 3500
        2005GMCSierra 2500 HD
        2006ChevroletSilverado 2500 HD
        2006ChevroletSilverado 3500
        2006GMCSierra 3500
        2006GMCSierra 2500 HD
        2007ChevroletSilverado 2500 HD
        2007ChevroletSilverado 3500 HD
        2007ChevroletSilverado 2500 HD Classic
        2007ChevroletSilverado 3500 Classic
        2007GMCSierra 2500 HD
        2007GMCSierra 2500 HD Classic
        2007GMCSierra 3500 HD
        2007GMCSierra 3500 Classic
        2008ChevroletSilverado 2500 HD
        2008ChevroletSilverado 3500 HD
        2008GMCSierra 2500 HD
        2008GMCSierra 3500 HD
        2009ChevroletSilverado 2500 HD
        2009ChevroletSilverado 3500 HD
        2009GMCSierra 2500 HD
        2009GMCSierra 3500 HD
        2010ChevroletSilverado 2500 HD
        2010ChevroletSilverado 3500 HD
        2010GMCSierra 2500 HD
        2010GMCSierra 3500 HD
