        BD TowMaster Ford 4R100 Trans & Converter Package 1999-2003 4wd

        SKU: 1064444SM-BKJX

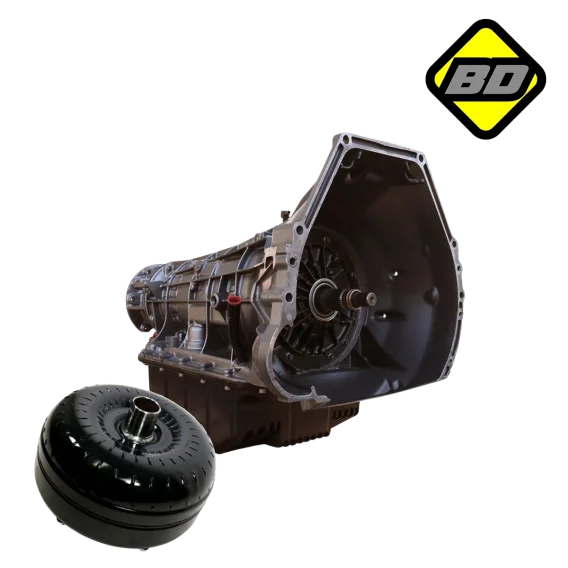

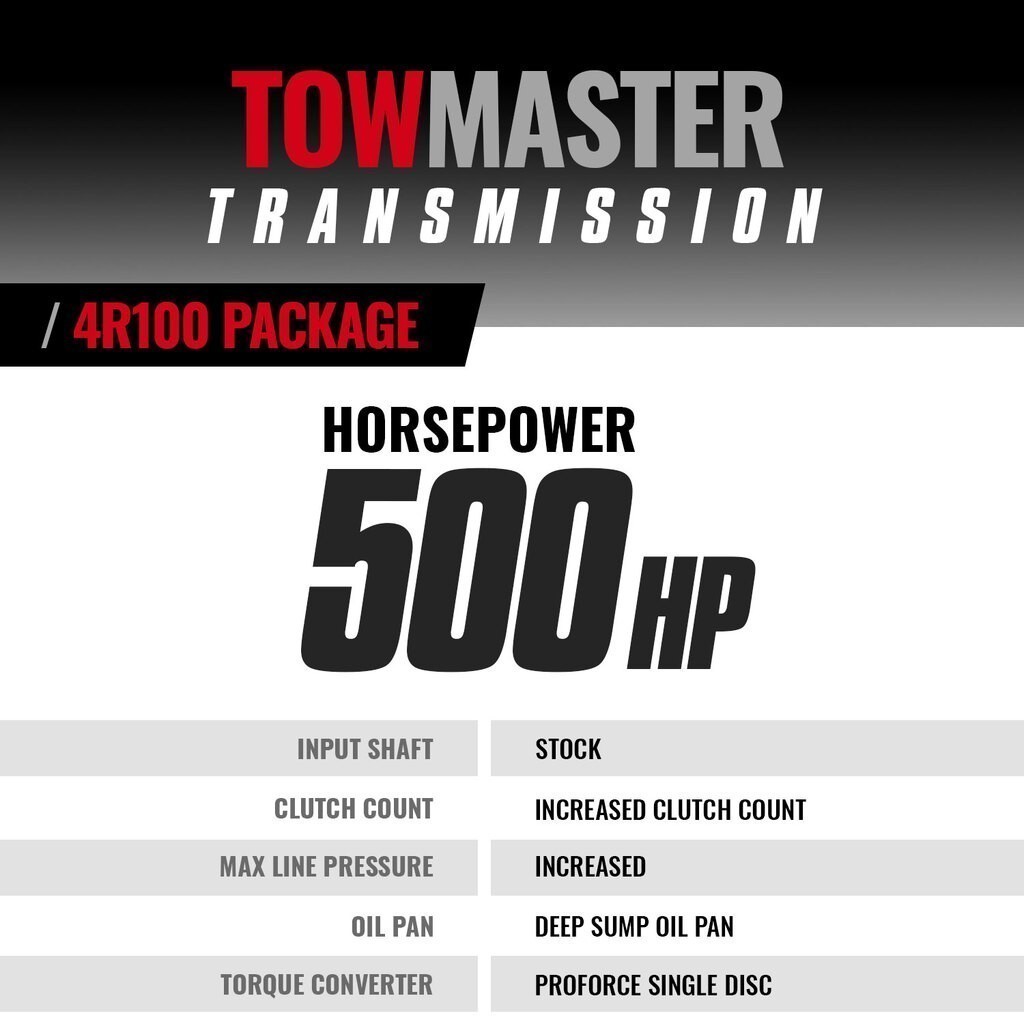

        BD TowMaster Ford 4R100 Transmission & Converter Package - 1999-2003 4wd

        • TRANSMISSION:
        • Increase the durability of your drivetrain
        • Upgraded OD snap ring
        • Enhanced Stall - Street/Towing applications
        • Torque multiplying cast aluminum stators
        • Lower rpm response than the stock converter
        • More efficient operation
        • Less heat and better fuel economy
        • Stamp-forged steel front cover
        • Furnace-brazed fins
        • Up to triple the amount of lock-up clutch material
        • Machined center support
        • Reworked front pump
        • Fully rollerized geartrain
        • Clutch Count: COAST CLUTCH 2
        • Clutch Count: FORWARD 5 (25% increase over stock)
        • Clutch Count: DIRECT 5
        • Clutch Count: LOW REVERSE 7 (17% increase over stock)
        • Clutch Count: INTERMEDIATE 4 (33% increase over stock)
        • Clutch Count: OVERDRIVE 4 (33% increase over stock)
        • BD aluminum HD deep pan, increases oil capacity by 6qt
        • Each transmission is dyno tested
        • 1990-2003 include auxiliary frame mounted full flow filter kit
        • Re-calibrated accumulator body
        • Quicker, firmer shifts
        • Full shift kit with line mod valve to increase pressures
        • Increased pressure to converter
        • Added lube circuits to OD planet
        • Added lube and support to output and intermediate shafts
        • Drilled and tapped direct and intermediate feeds to prevent leaks at case
        • TORQUE CONVERTOR:
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $7378.95 +$2000.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

          • SKU
            1064444SM-BKJX
          • Weight
            335 lbs
          • Dimensions (L x W x H)
            23.5 x 44.5 x 27.3 in
          • Barcode
            00990011406994
          • Manufacturer Part #
            1064444SM
        • Category
          Auto Trans & Converter Packages
        • Engine
          7.3L Powerstroke 99-03
        • Make
          Ford
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        1999FordF-250 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        1999FordF-350 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2000FordF-250 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2000FordF-350 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2001FordF-250 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2001FordF-350 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2002FordF-250 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2002FordF-350 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2003FordF-250 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
        2003FordF-350 Super Duty4wd; Incl. HD Transmission Pan/Filter Kit; Includes multi-disc torque converter;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm);
