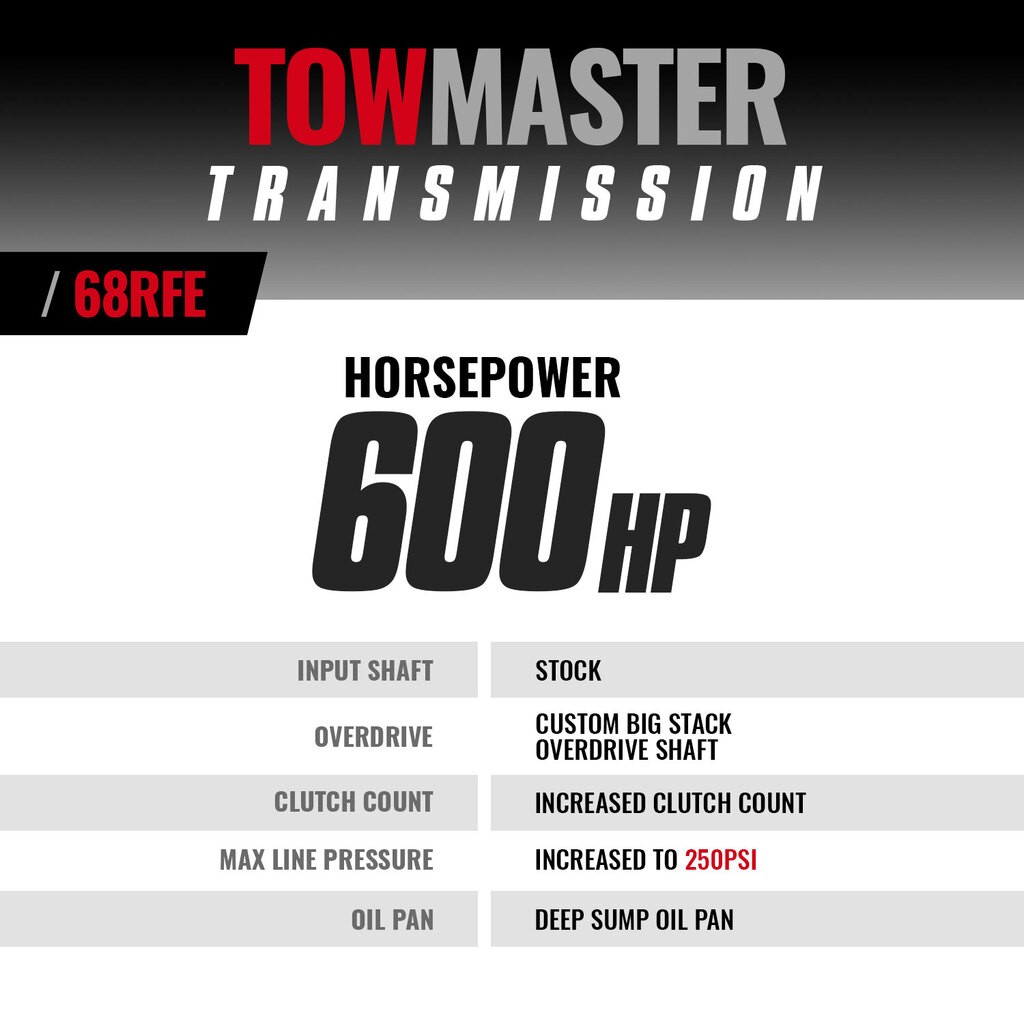

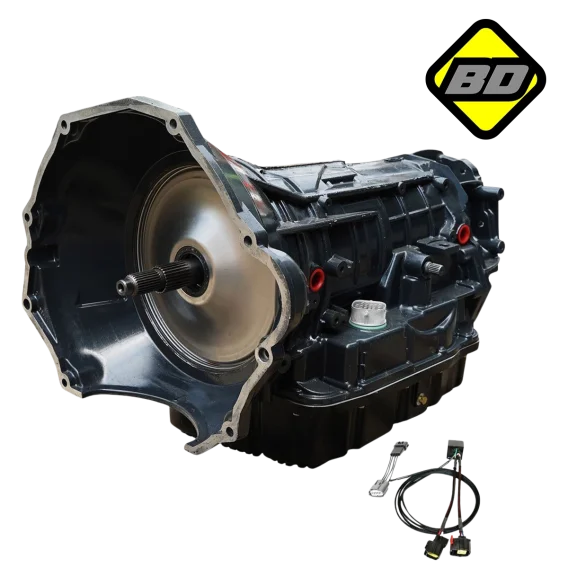

BD TowMaster Dodge 68RFE Transmission 2007.5-2018 4wd
BD TowMaster Dodge 68RFE Transmission - 2007.5-2018 4wd
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity.
- CategoryAutomatic Transmissions
- Engine6.7L Cummins 13-18
- MakeDodge
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1071220X
- BrandBD Diesel
- Extended information
- EmissionsEmission verification to be determined in ACES, vehicle application data.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2007 | Dodge | Ram 2500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2007 | Dodge | Ram 3500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2008 | Dodge | Ram 2500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2008 | Dodge | Ram 3500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2009 | Dodge | Ram 2500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2009 | Dodge | Ram 3500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2010 | Dodge | Ram 2500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2010 | Dodge | Ram 3500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2011 | Ram | 2500 | Includes Heavy Duty Pan; 4wd;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2011 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2012 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2012 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2013 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2013 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2014 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2014 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2015 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2015 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2016 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2016 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2017 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2017 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2018 | Ram | 2500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
2018 | Ram | 3500 | 4wd; Incl. HD Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm); |
