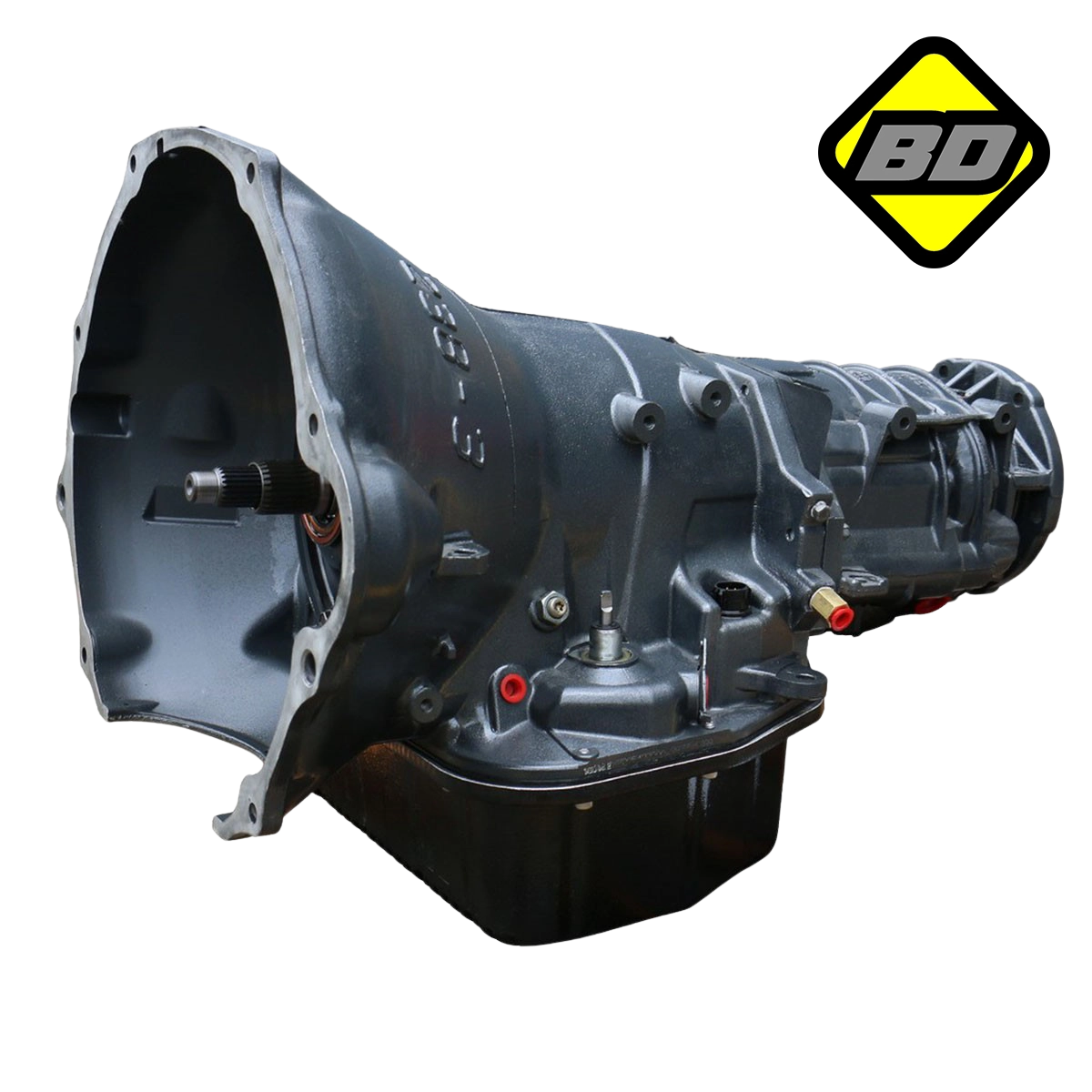

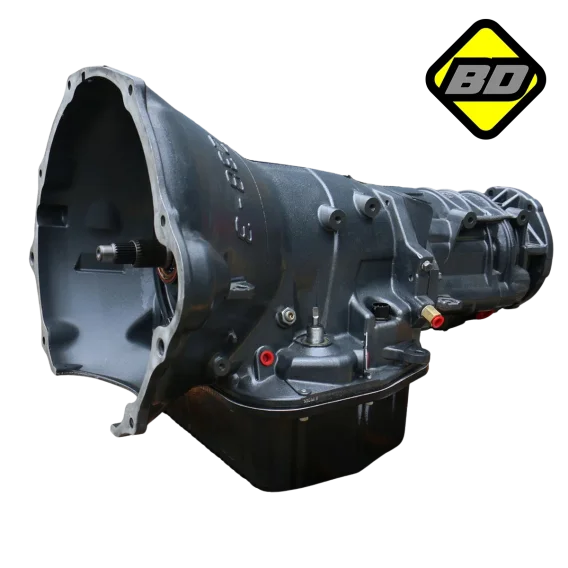

BD TowMaster Dodge 48RE Transmission 2003-2004 4wd
BD TowMaster Dodge 48RE Transmission - 2003-2004 4wd
- Increase the durability of your drivetrain
- Billet band lever
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- High temp/energy Raybestos band
- Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
- Upgraded governor solenoid
- Cooler line case saver in every transmission

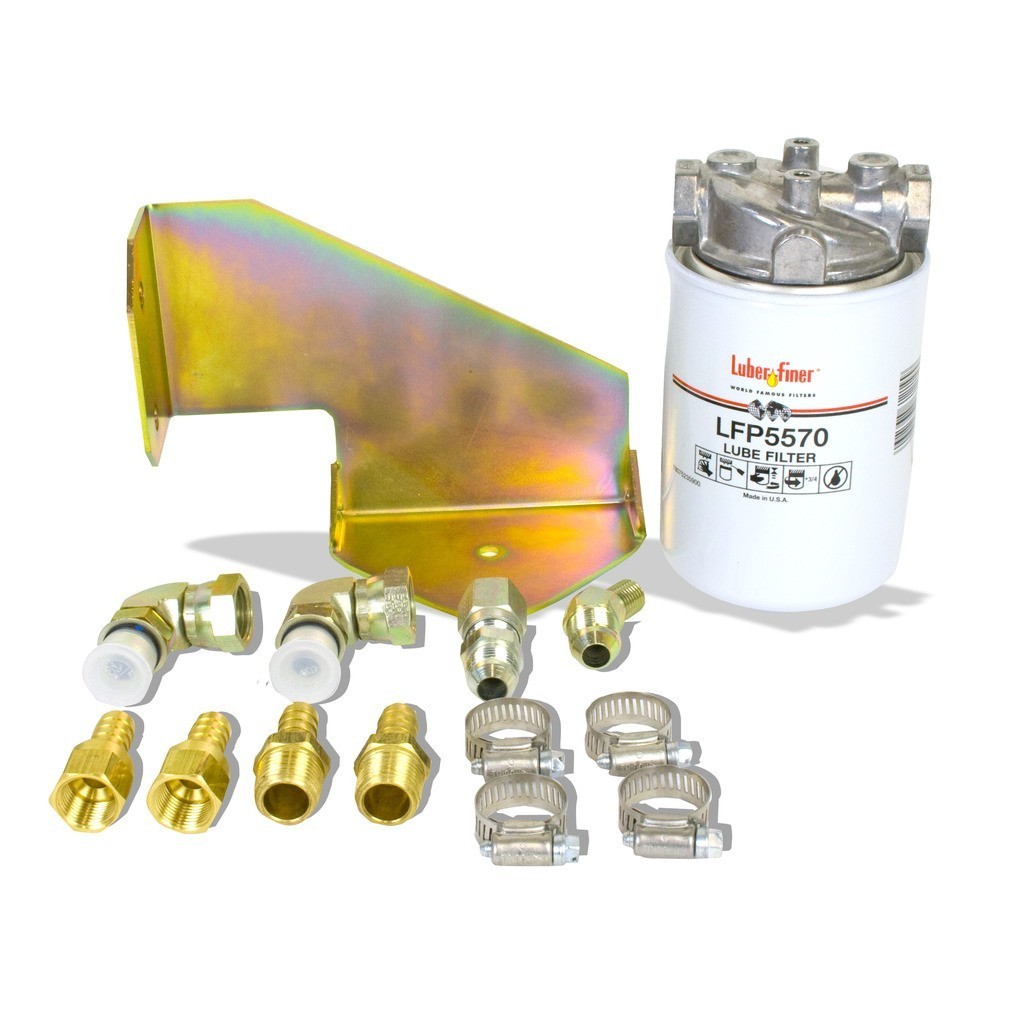

- BD auxiliary full flow filter kit for extra protection
- Stock thrust bushings replaced with roller Torrington bearings
- BD rigid aluminum heavy duty transmission pan
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Pan adds 2qt extra oil capacity
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Valvebody
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Billet band strut
The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!
- CategoryAutomatic Transmissions
- Engine5.9L Cummins 03-04
- MakeDodge
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1070247X
- BrandBD Diesel
- Extended information
- EmissionsEmission verification to be determined in ACES, vehicle application data.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2003 | Dodge | Ram 2500 | 4wd; Includes Heavy Duty Pan And Auxiliary Fluid Filter Kit;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm); |
2003 | Dodge | Ram 3500 | 4wd; Includes Heavy Duty Pan And Auxiliary Fluid Filter Kit;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm); |
2004 | Dodge | Ram 2500 | 4wd; Includes Heavy Duty Pan And Auxiliary Fluid Filter Kit;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm); |
2004 | Dodge | Ram 3500 | 4wd; Includes Heavy Duty Pan And Auxiliary Fluid Filter Kit;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm); |
