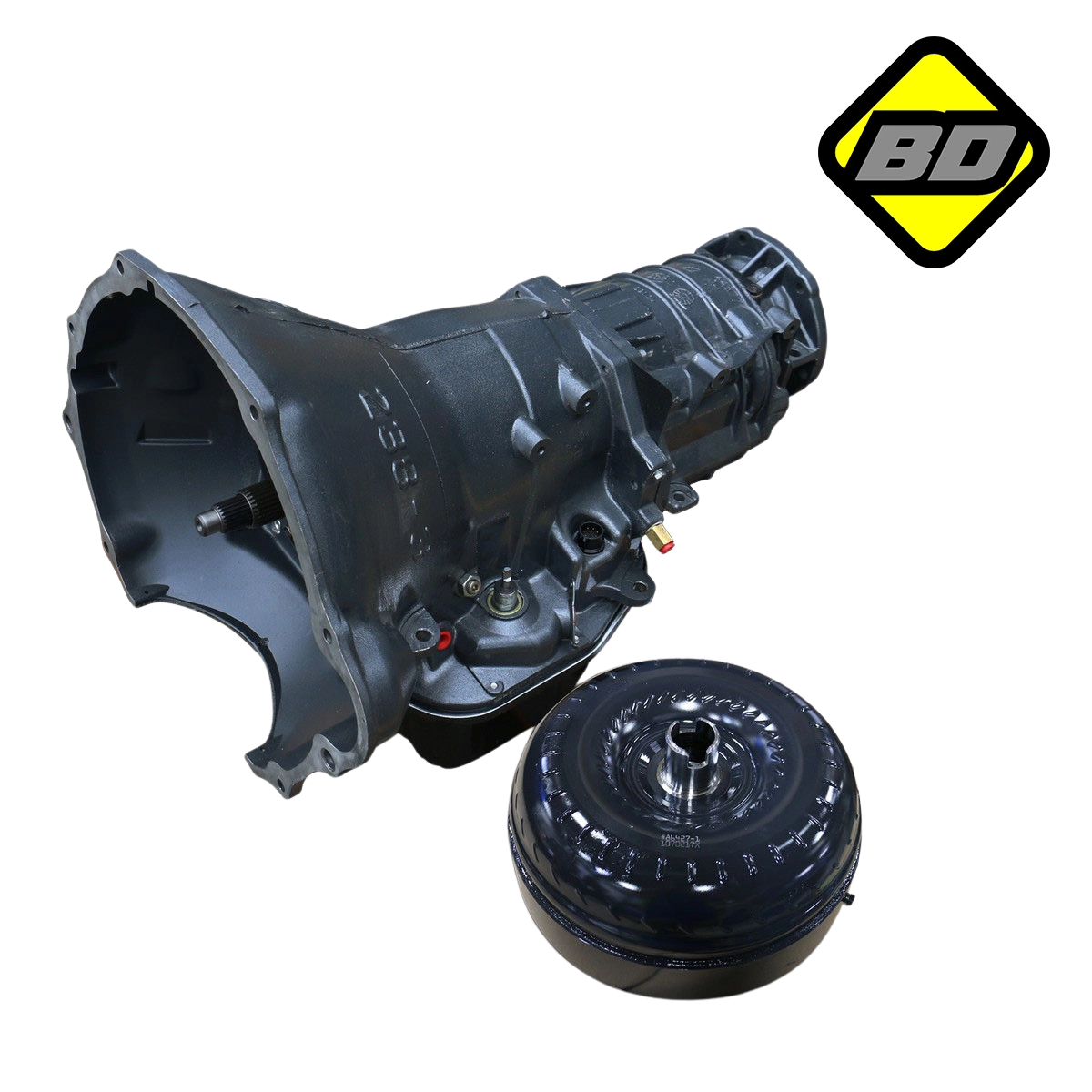

BD TowMaster Dodge 48RE Trans & Converter Package 2003-2004 2wd
BD TowMaster Dodge 48RE Transmission & Converter Package - 2003-2004 2wd
- TRANSMISSION:
- Stock thrust bushings replaced with roller Torrington bearings
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
- Clutch Count: DIRECT 6
- Clutch Count: FORWARD 5
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- High temp/energy Raybestos band
- Upgraded Valvebody
- Billet band lever
- Billet band strut
- Upgraded governor solenoid
- Drilled intermediate shaft for increased lubrication
- Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- BD rigid aluminum heavy duty transmission pan
- Pan adds 2qt extra oil capacity
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Modified manual valve for lube in all positions
- Increase the durability of your drivetrain
- BD auxiliary full flow filter kit for extra protection
- Cooler line case saver in every transmission
- Every transmission is tested on a dyno
- Not warranted for Race or Sled Pull use
- TORQUE CONVERTOR:
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
- CategoryAuto Trans & Converter Packages
- Engine5.9L Cummins 03-04
- MakeDodge
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1041210
- BrandBD Diesel
- Extended information
- EmissionsEmission verification to be determined in ACES, vehicle application data.
- Life Cycle StatusAvailable To Order
