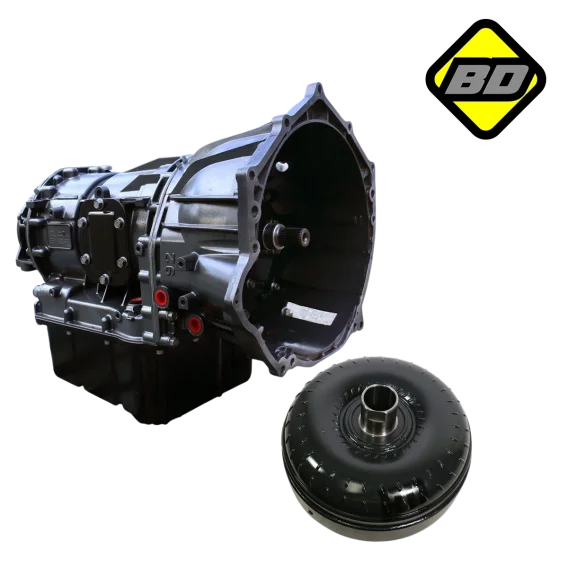

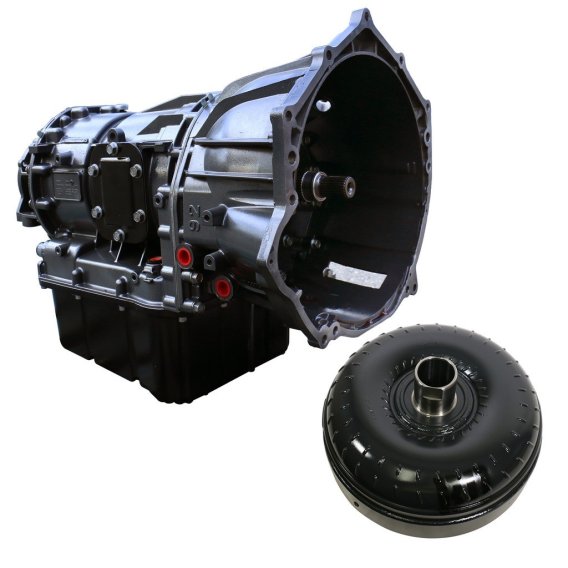

BD TowMaster Chevy Allison Trans & Converter Package 2006-2007 LBZ 2wd
BD TowMaster Chevy Allison 1000 Transmission & Converter Package - 2006-2007 LBZ 6-speed 2wd
- TRANSMISSION:
- Clutch Count: C2 7 clutches (17% increase over stock)
- Clutch Count: C3 7 clutches (75% increase over stock)
- Clutch Count: C4 7 clutches (17% increase over stock)
- Clutch Count: C5 7 clutches (17% increase over stock)
- Each transmission is dyno tested
- TORQUE CONVERTOR:
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
- Utilizes a new double cage stator sprag for increased strength, reduces common stator failures with the OE design.
- BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
- High energy GPZ(TM) frictions
- Revised oil circuits
- New convertor lock up valve to boost lock-up pressures
- New A & B trim valves deliver full line pressure to the clutches
- Increased clutch count
- Clutch Count: C1 8 clutches (14% increase over stock)
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
- CategoryAuto Trans & Converter Packages
- EngineDuramax 6.6L 06-07 LBZ
- MakeChevy/GM
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1062224
- BrandBD Diesel
- Extended information
- EmissionsEmission verification to be determined in ACES, vehicle application data.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2006 | GMC | Sierra 2500 HD | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | GMC | Sierra 3500 | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | Chevrolet | Silverado 2500 HD | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | Chevrolet | Silverado 3500 | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Silverado 2500 HD | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Silverado 3500 HD | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Silverado 3500 Classic | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | GMC | Sierra 2500 HD | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | GMC | Sierra 3500 HD | 2wd; LBZ engine; Incl. HD Transmission Pan; Includes torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
