        BD TorqueMaster Dodge 48RE Transmission 2005-2007 4wd w/TVV

        SKU: 1064234BFT-BKJX

        BD TorqueMaster Dodge 48RE Transmission - 2005-2007 4wd w/TVV Stepper Motor - c/w Auxiliary Filter -& Billet Input - TapShifter

        • Increase the durability of your drivetrain
        • No shuttle shifting problems
        • Drilled intermediate shaft for increased lubrication
        • Modified manual valve for lube in all positions
        • Billet band strut
        • Billet band lever
        • Billet "Big" fine spline input shaft
        • Clutch Count: OD 6
        • Clutch Count: OD DIRECT 10
        • Clutch Count: FORWARD 5
        • Clutch Count: DIRECT 6
        • Provides manual torque converter lock-up clutch control
        • High temp/energy Raybestos band
        • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
        • Upgraded governor solenoid
        • Cooler line case saver in every transmission
        • BD auxiliary full flow filter kit for extra protection
        • BD rigid aluminum heavy duty transmission pan
        • Pan heat-dissipating fins keep temperature down
        • Magnetic drain plug
        • Pan adds 2qt extra oil capacity
        • Not warranted for Race or Sled Pull use
        • Works with stock shifting and has gear limiting function
        • Sealed plug-in wiring, no cutting or tapping of wires required

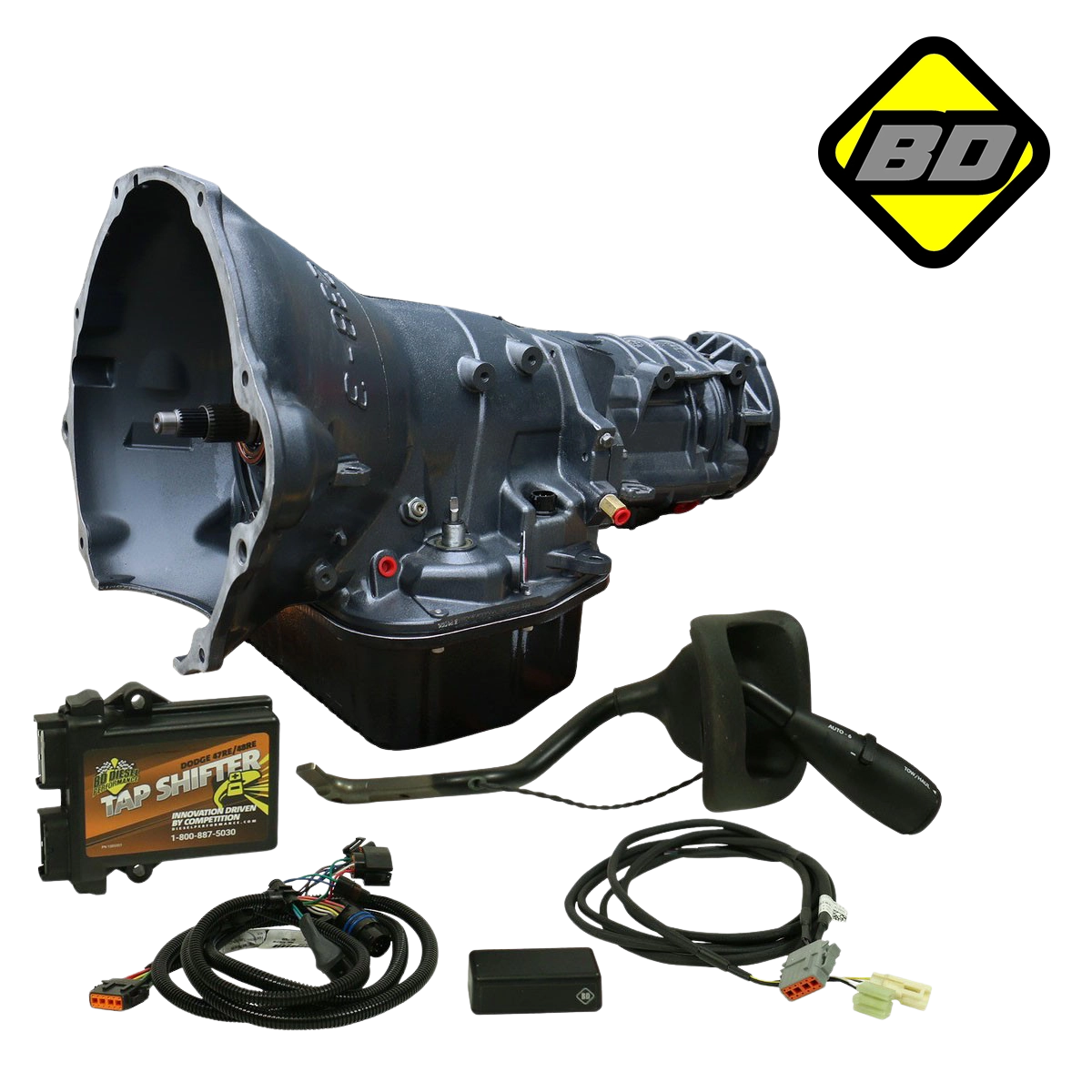

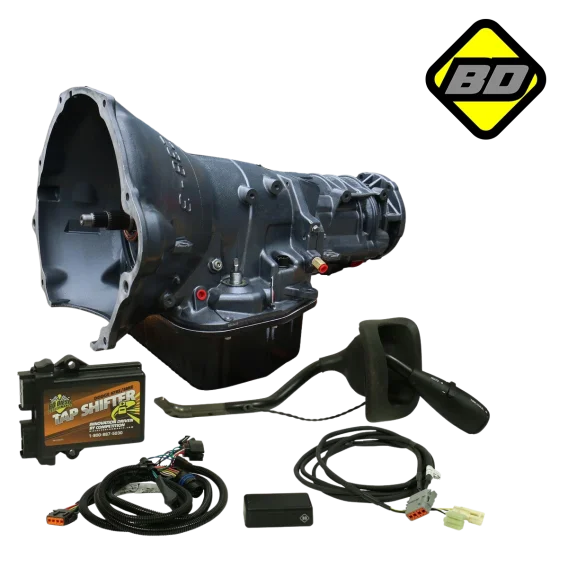

        • Includes new model shift lever, BD control module, BD gear selection display and wiring harness
        • Stock thrust bushings replaced with roller Torrington bearings
        • Every transmission is tested on a dyno
        • Upgraded Valvebody
        • Increased line pressure to 190-200psi
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $8936.95 +$2400.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        This transmission comes BD Tapshift ready which includes a new gear lever, gear selection display, and control module with fingertip shifting. The 48RE Tapshifter unlocks full electronic gear selection, torque converter lock-up control, gear limiting function and a full manual gear mode. The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection! Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque.

          • SKU
            1064234BFT-BKJX
          • Weight
            250 lbs
          • Barcode
            00990011406581
          • Dimensions (L x W x H)
            23.5 x 44.5 x 27.3 in
          • Manufacturer Part #
            1064234BFT
        • Category
          Automatic Transmissions
        • Engine
          5.9L Cummins 04.5-07
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1070247X
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2005DodgeRam 35004wd; Incl. Filter And Billet Input; Includes TapShifter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2005DodgeRam 25004wd; Incl. Filter And Billet Input; Includes TapShifter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2006DodgeRam 25004wd; Incl. Filter And Billet Input; Includes TapShifter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2006DodgeRam 35004wd; Incl. Filter And Billet Input; Includes TapShifter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2007DodgeRam 25004wd; Incl. Filter And Billet Input; Includes TapShifter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2007DodgeRam 35004wd; Incl. Filter And Billet Input; Includes TapShifter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
