        BD TorqueMaster Chevy Allison Trans & Converter Package 2001-2004 LB7 4wd

        SKU: 1064704BM-BKJX

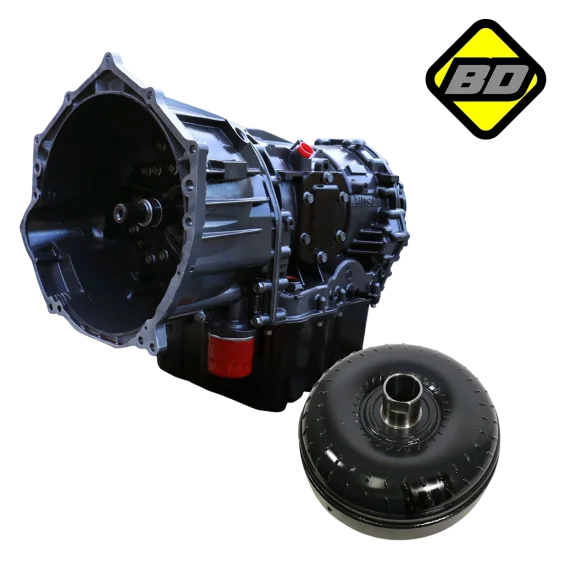

        BD TorqueMaster Chevy Allison 1000 Transmission & Converter Package c/w Billet Input & Triple Torque - 2001-2004 LB7 4wd

        • TRANSMISSION:
        • Clutch Count: C2 7 clutches (17% increase over stock)
        • Clutch Count: C3 7 clutches (75% increase over stock)
        • Clutch Count: C4 7 clutches (17% increase over stock)
        • Clutch Count: C5 7 clutches (17% increase over stock)
        • Each transmission is dyno tested
        • Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
        • TORQUE CONVERTOR:
        • Triple Disc
        • Enhanced Stall - Street/Towing applications
        • Increase the durability of your drivetrain
        • HD springs absorb shock of engagement
        • Stamp forged 1-piece cover
        • Eliminates warpage from clutch heat
        • Taller cover can be rebuilt more often
        • Trapezoid teeth design
        • Engineered tighter tolerances
        • Self-centering trapezoid teeth design increases contact decreases wear and chatter
        • Thrust bearings - not plastic thrust washers
        • Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
        • Cast stator designs maximizes torque
        • BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
        • New sprag components ensure long term durability
        • Furnaced brazed turbine fins for improved fluid coupling efficiency
        • Reduced overall weight by 12lbs compared to competitors
        • Revised oil circuits
        • New convertor lock up valve to boost lock-up pressures
        • New A & B trim valves deliver full line pressure to the clutches
        • High energy GPZ(TM) frictions
        • Increased clutch count
        • Clutch Count: C1 8 clutches (14% increase over stock)
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $9554.95 +$2750.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

          • SKU
            1064704BM-BKJX
          • Weight
            400 lbs
          • Dimensions (L x W x H)
            23.5 x 44.5 x 27.3 in
          • Barcode
            00990011407281
          • Manufacturer Part #
            1064704BM
        • Category
          Auto Trans & Converter Packages
        • Engine
          Duramax 6.6L 01-04 LB7
        • Make
          Chevy/GM
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1062204
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number.
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2001ChevroletSilverado 2500 HD4wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2001ChevroletSilverado 35004wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2002ChevroletSilverado 2500 HD4wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2002ChevroletSilverado 35004wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2003ChevroletSilverado 2500 HD4wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2003ChevroletSilverado 35004wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2004ChevroletSilverado 2500 HD4wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2004ChevroletSilverado 35004wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2004GMCSierra 2500 HD4wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2004GMCSierra 35004wd; LB7 engine; Incl. HD Transmission Pan; Includes multi-disc torque converter;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
