        BD ROADMASTER DODGE 48RE TRANSMISSION & CONVERTER PACKAGE 2003-2004 4WD

        SKU: 1064144SS-BKJX

        BD RoadMaster Dodge 48RE Transmission & Converter Package - 2003-2004 5.9L Cummins 4wd

        • TRANSMISSION:
        • Lower rpm response than the stock converter
        • Upgraded BD Valve Body
        • More efficient operation
        • Billet-forged front cover
        • Furnace-brazed turbine fins
        • Upgraded governor solenoid
        • Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
        • Increased line pressure to 190-200psi
        • No shuttle shifting problems
        • Clutch Count: DIRECT 5 (same as OE)
        • Clutch Count: OD DIRECT 10 (same as OE)
        • Clutch Count: FORWARD 4 (same as OE)
        • Clutch Count: OD 5 (same as OE)
        • Billet band strut
        • BD deep sump oil pan with magnetic drain plug
        • Cooler line case saver in every transmission
        • Every transmission is tested on a dyno
        • TORQUE CONVERTER:
        • Enhanced Stall - Street/Towing applications
        • Torque multiplying cast aluminum stators
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $6287.95 +$3250.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

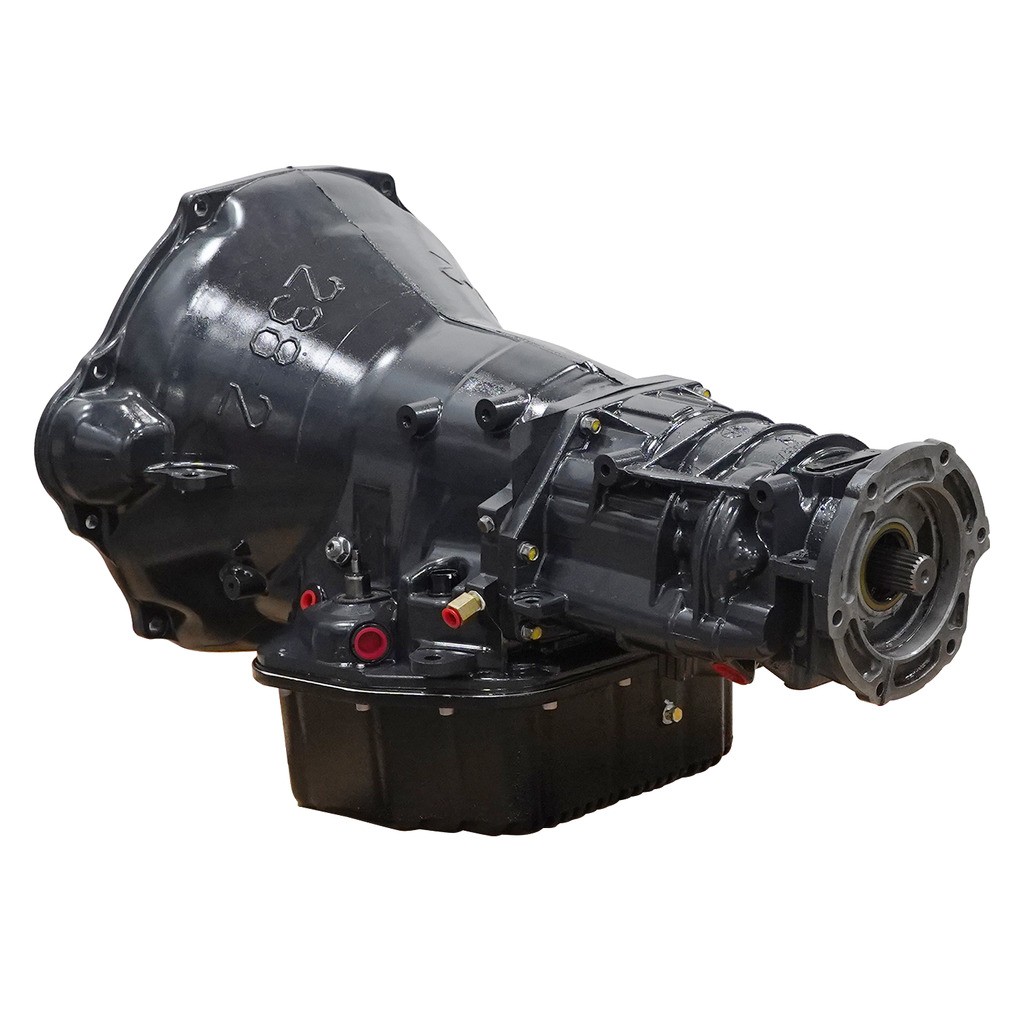

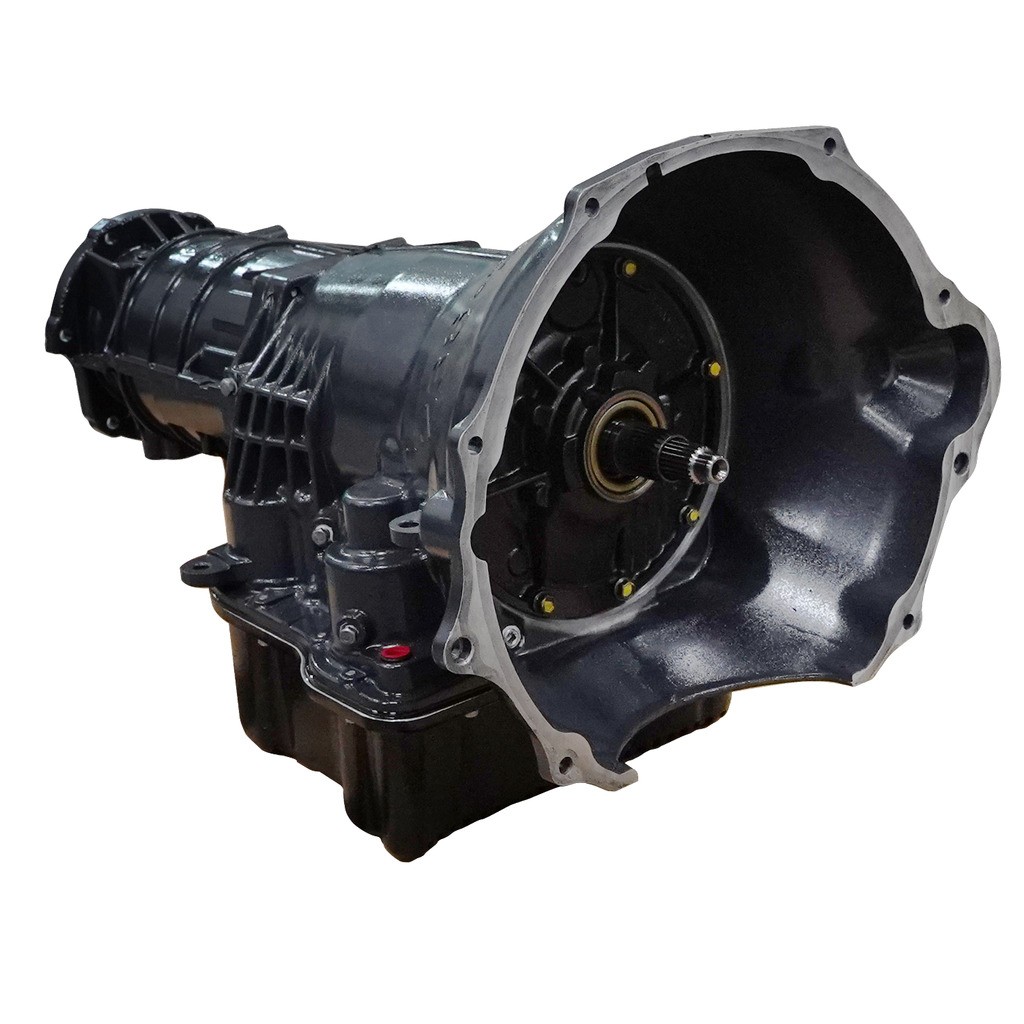

        Fully remanufactured transmission featuring the BD Valve Body! The BD Valve Body has many modifications to improve shift quality and extend transmission life. The valve body is equipped with a new heavy-duty governor pressure solenoid as well as an upgraded pressure transducer kit with twice the burst pressure as stock. The RoadMaster transmission also includes a deep sump oil pan for increased fluid capacity and cooling. Every 48RE RoadMaster transmission comes packaged with a BD ProForce Torque Converter.

          • SKU
            1064144SS-BKJX
          • Weight
            310 lbs
          • Dimensions (L x W x H)
            23.5 x 44.5 x 27.3 in
          • Barcode
            00990011410748
          • Manufacturer Part #
            1064144SS
        • Category
          Auto Trans & Converter Packages
        • Engine
          5.9L Cummins 03-04
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1041210
        • Drivetrain
          4WD
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2003DodgeRam 25004wd; Includes torque converter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2003DodgeRam 35004wd; Includes torque converter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2004DodgeRam 25004wd; Includes torque converter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2004DodgeRam 35004wd; Includes torque converter;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
