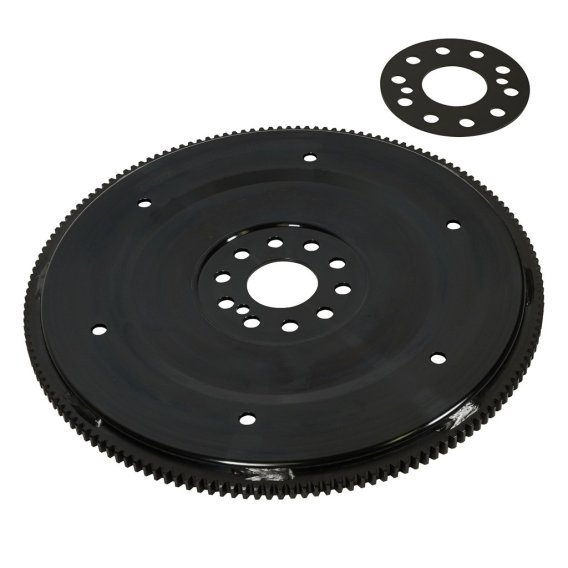

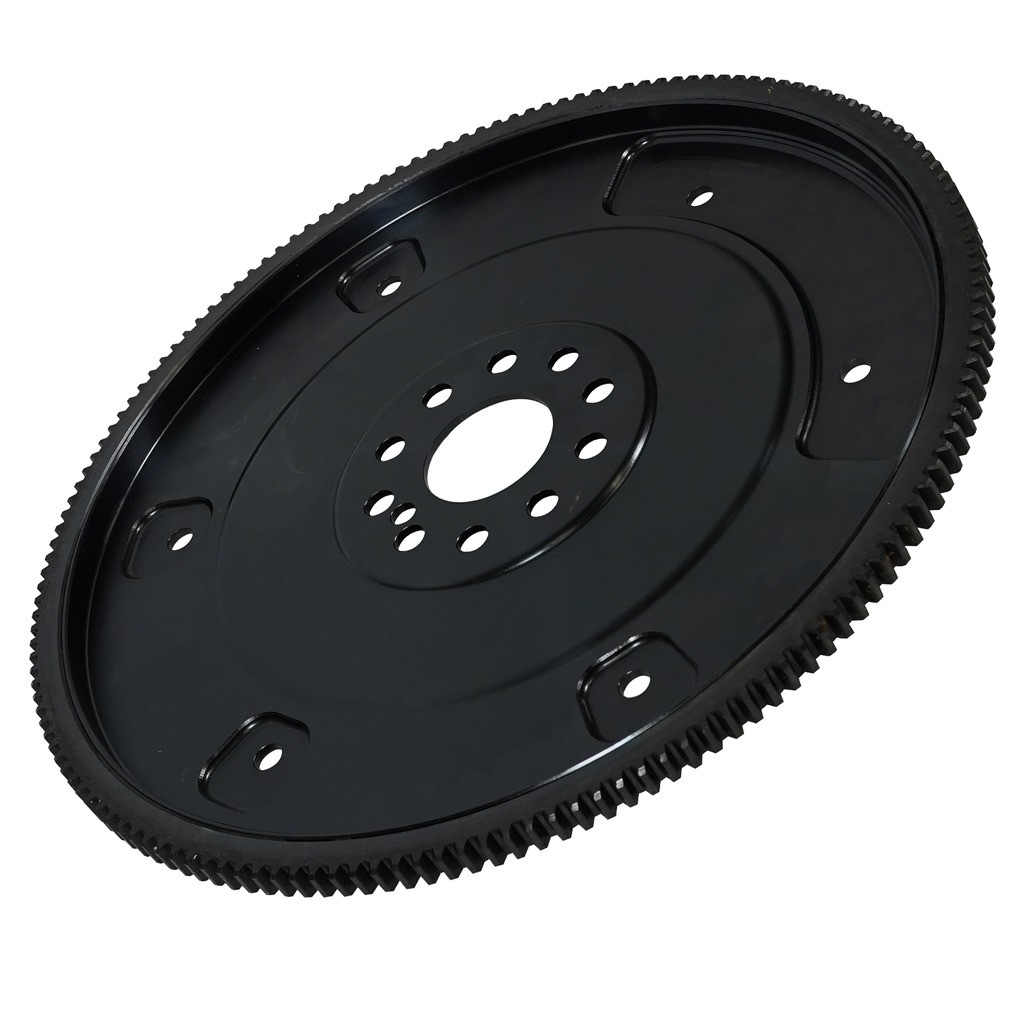

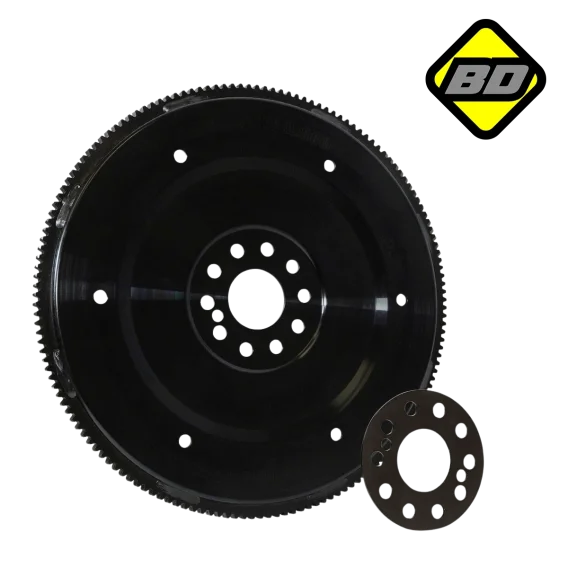

BD 7.3L Powerstroke Flexplate 4R100/E4OD Ford 1994-2003
BD 7.3L Powerstroke Flexplate 4R100/E4OD Ford 1994-2003
- 1.5 times thicker than stock
- Balanced to OE specifications
- One piece billet machined with integrated counterweight
- Manufactured from Quench and Tempered Steel with a Yield strength of 100,000psi
- Not affected by hydrogen embrittlement caused by zinc plating, which can drastically reduce strength
- Black oxide coated
- Heat treated and hardened ring gear to last longer
- Fits any OEM or aftermarket torque converter
BD's FleX-Plate is CNC machined 1.5x thicker out of quench and tempered 100ksi steel. In-house machining incorporates integrated counterweights which are then balanced to better than OE specifications. Black Oxide coated to resist corrosion and prevents hydrogen embrittlement that can cause cracking, these units will fit any OEM or aftermarket torque converter and affordable enough to replace with converter or transmission swap. The BD FleX-Plate is a direct, bolt-in replacement for the stock unit. Great for racing, towing or stock!
- CategoryFlex Plates
- Engine7.3L Powerstroke 99-03
- MakeFord
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1061716
- BrandBD Diesel
- Extended information
- EmissionsEmission verification to be determined in ACES, vehicle application data.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2003 | Ford | E-450 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | E-350 Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | Excursion | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | F-250 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | F-350 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | F-450 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | F-550 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2003 | Ford | E-550 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1996 | Ford | Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1996 | Ford | E-350 Econoline | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1996 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1996 | Ford | F-250 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1996 | Ford | F-350 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1997 | Ford | Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1997 | Ford | E-350 Econoline | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1997 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1997 | Ford | F-350 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1997 | Ford | F-250 HD | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1998 | Ford | Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1998 | Ford | E-350 Econoline | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1998 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | F-250 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | F-350 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | F-450 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | F-550 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1999 | Ford | E-450 Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1995 | Ford | E-350 Econoline | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1995 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1995 | Ford | F-250 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1995 | Ford | F-350 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | Excursion | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | F-250 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | F-350 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | F-450 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | F-550 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2000 | Ford | E-450 Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | Excursion | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | F-250 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | F-350 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | F-450 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | F-550 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2001 | Ford | E-450 Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | E-350 Econoline Club Wagon | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | Excursion | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | F-250 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | F-350 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | F-450 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | F-550 Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | E-450 Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
2002 | Ford | E-550 Econoline Super Duty | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1994 | Ford | F-250 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
1994 | Ford | F-350 | 4R100/E4OD Transmission;; EngineBase: 7.3 L (445 cid) V8 Bore: 4.11 in.(104.4mm) Stroke: 4.18 in.(106.2mm); |
