        BD 68RFE ProTect68 Pressure Control Kit Cummins 6.7L Dodge 2007.5-2018

        SKU: 1030362-BKJX

        BD 68RFE ProTect68 Pressure Control Kit Cummins 6.7L Dodge 2007.5-2018

        • 56% more theoretical holding power
        • No full transmission relearn required - quick relearn suggested
        • A "fresh" stock transmission will have the ability to handle up to 400hp-450hp
        • No tuning required
        • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
        • Heavy duty accumulator plate to prevent accumulator blowout
        • Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
        • Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
        • Dynamic control ramps up the much larger sweep
        • Prevent clutch slippage

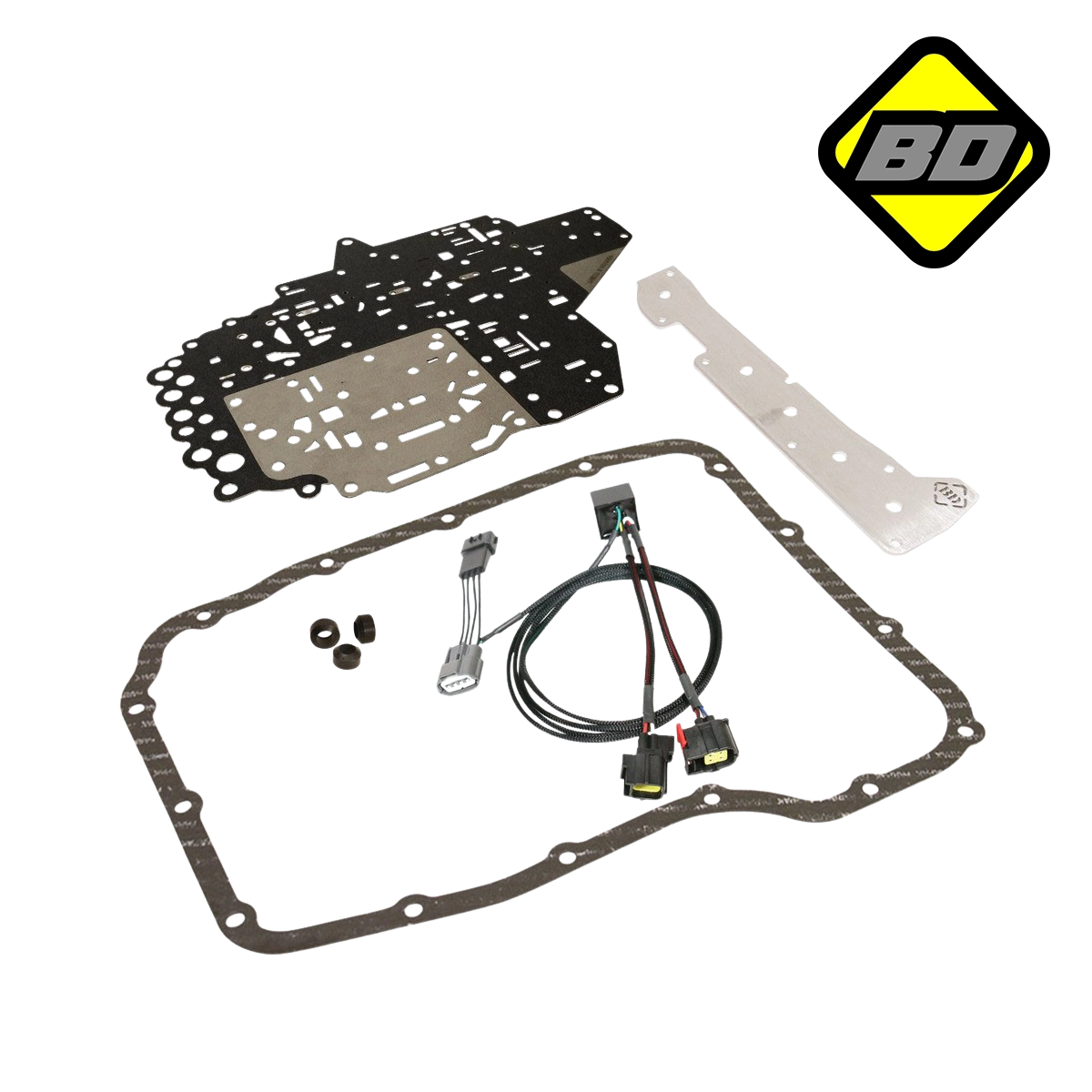

        • Kit includes pan gasket, 3 doughnut seals and check ball
        • Installation takes 2-to-3 hours
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $602.95

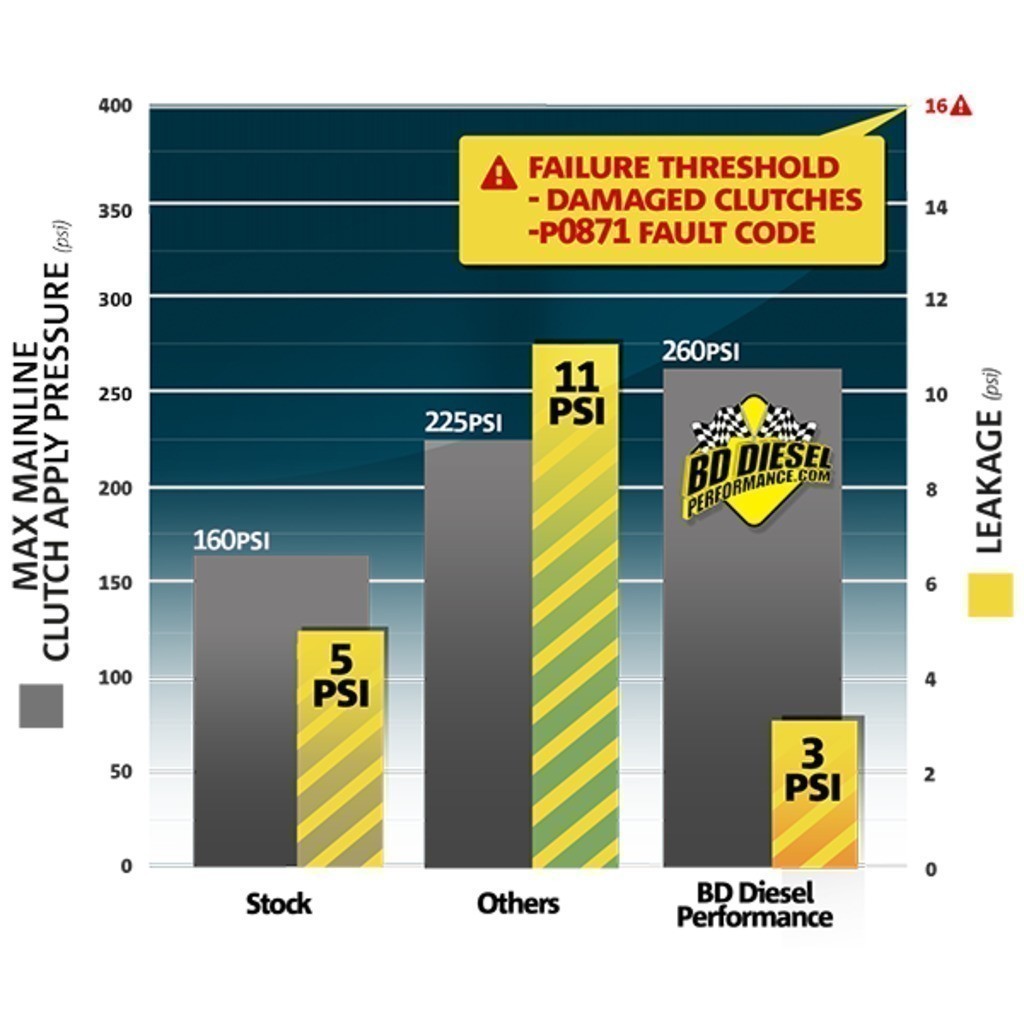

        ProTect68 Trans Pressure Control kit delivers 150% of the torque holding force to stock transmissions like no others can. Industry leading custom bonded gasket valve body separator plate and gaskets substantially reduces cross leaks compared to stock and other aftermarket kits, even with much higher line pressures. Heavy duty accumulator plate to prevent accumulator blow-out. Electronic Pressure Control module that delivers up to 250 PSI clutch apply pressure providing 150% of the holding force prevents clutch slippage. All of this without modifying the transmission pump or removing the transmission. Controller dynamically adjusts the hydraulic apply pressures based on turbo boost/engine load. No tuning required. Installation takes 2-to-3 hours to complete without having to do a full transmission relearn since no internal tolerances have changed. A "fresh" stock transmission will have the ability to handle up to 450hp. For higher power or demands, a complete BD 68RFE transmission with additional clutches and new designed components is recommended.

          • SKU
            1030362-BKJX
          • Weight
            3.5 lbs
          • Dimensions (L x W x H)
            24 x 15 x 4 in
          • Barcode
            00990011405584
          • Manufacturer Part #
            1030362
        • Category
          Shift & Pressure Controls
        • Engine
          6.7L Cummins 13-18
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1062022
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2007DodgeRam 2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2008DodgeRam 2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2008DodgeRam 3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2009DodgeRam 2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2009DodgeRam 3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2010DodgeRam 2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2010DodgeRam 3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2011Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2011Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2012Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2012Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2013Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2013Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2014Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2014Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2015Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2015Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2016Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2016Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2017Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2017Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2018Ram2500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2018Ram3500Incl. Valve Body Separator Plate, Gaskets and Pressure Control Module;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
