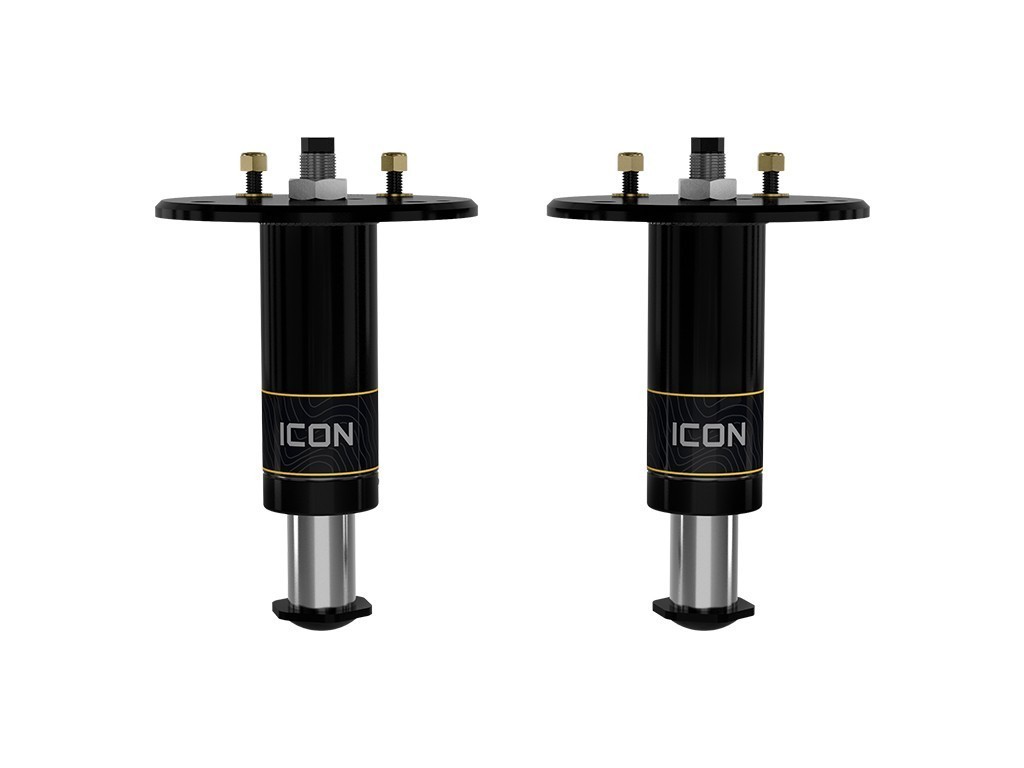

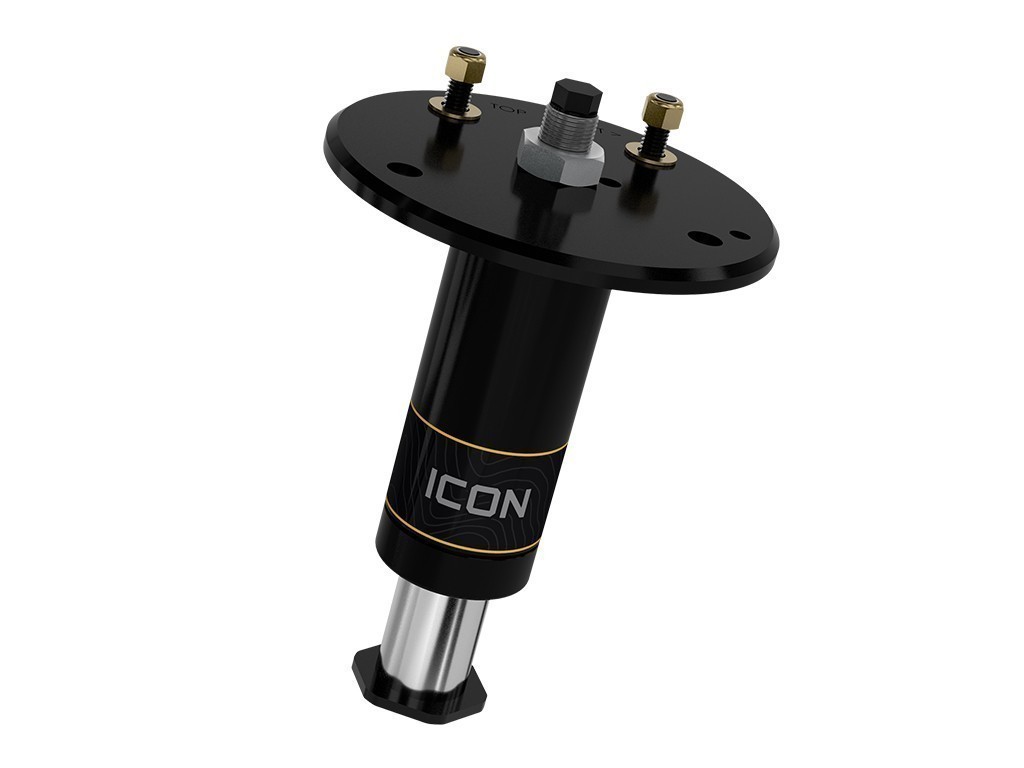

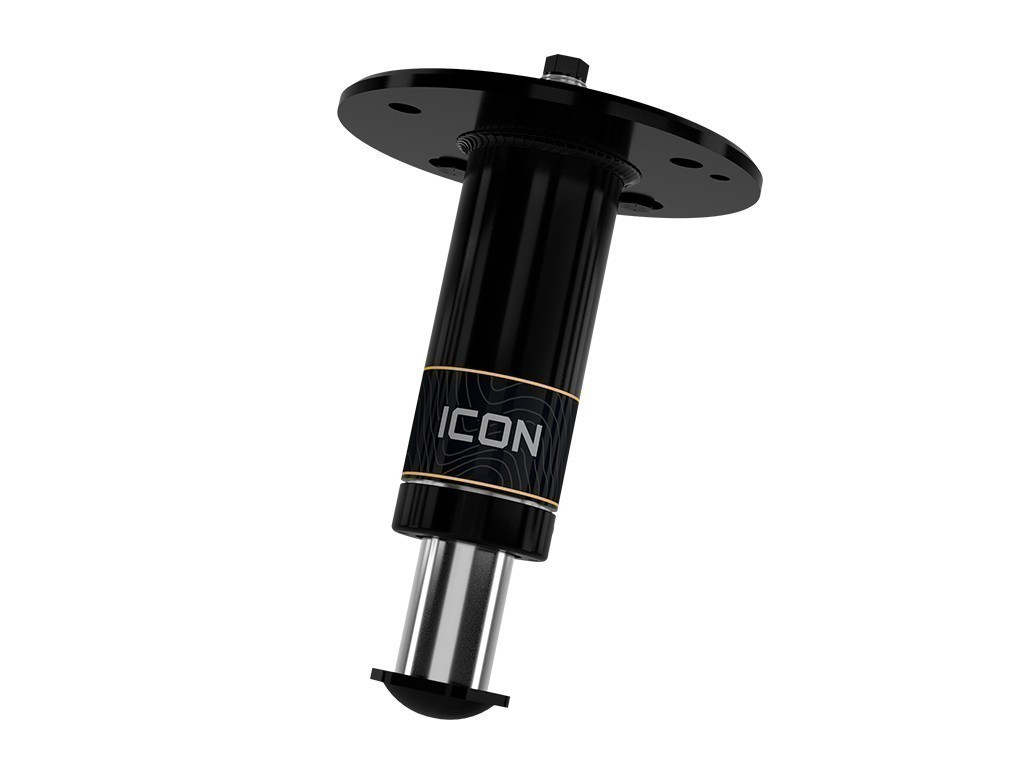

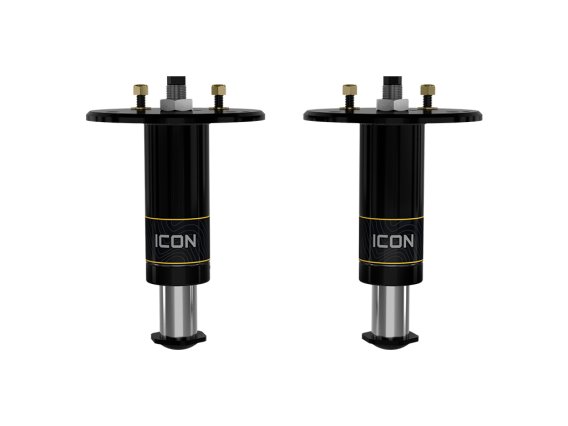

ICON 2021-2023 Ram 1500 TRX, Rear 2.5" Bump Stop Kit, 2.25" Travel
SKU: FRDK-211020
2022-2023 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP KIT
- 2.5” diameter bump stops with 2.25” of travel
- CNC laser cut steel mounting brackets
- Semi-gloss black powder coat finish on brackets for corrosion resistance
- 100% bolt-on installation on top of rear coil springs
- Impact extruded, hard anodized aluminum bump stop bodies
- Heavy duty 1.625" diameter hardened, chrome plated steel shafts
- Internal reservoir design provides more consistent and predictable performance than emulsion bump stops
- Velocity/position sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
- Replaceable, noise reducing striker pads
- CNC machined 6061 billet aluminum components
- Bump stops are fully rebuildable and re-tunable
Vehicle Specific
Check if this part fits your vehicle.
While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2021-2023 Ram 1500 TRX Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the damping force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. This system features 2.5” diameter, one-piece impact extruded and hard anodized aluminum bump stop bodies with an internal reservoir design for improved damping and more consistent, predicable performance than 2.0” diameter, emulsion style bump stops. To compliment the larger body diameter, these bump stops also incorporate heavy duty 1.625” diameter hardened chrome plated shafts.
- California Proposition 65WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- 10Steel
- 17Gray
- 2168No
- 252.5
- 30yes
- 3390Performance
- 705Performance
- AAP_UDA_12EA
- AAP_UDA_221
- AAP_UDA_455
- Attachment TypeBolt On
- Bumper MaterialHydraulic
- Bumper TypeHydraulic
- Diameter2.5
- Travel Length2.25
- BrandICON Vehicle Dynamics
- Extended information
- EmissionsInfo missing
- Life Cycle StatusAvailable To Order
