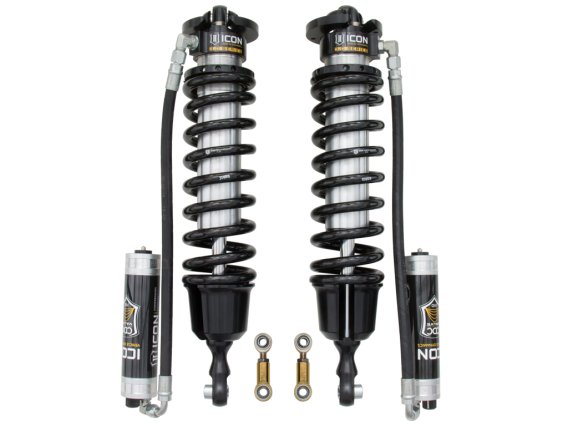

        ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDCV

        SKU: FRDK-58755

        These ICON coilovers feature 3.0 Series shocks and coil springs optimized for this application. The shock’s larger 3.0” body and increased piston area improves damping ability and ride quality across varying types of terrain.

        • Significant increase in damping ability for excellent performance in extreme off-road conditions
        • Multi stage CAD plated shock body with hard anodized piston and top cap
        • Direct bolt-in to OEM shock location makes for an easy install
        • Fully serviceable
        • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
        • Adjustable coilovers provide 1.63-3.5” of front lift height over stock
        • Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
        • ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
        • Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
        • 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
        • High quality ICON-engineered coil springs offer increased travel and performance
        • PTFE lined COM12 spherical bearings ensure maximum strength and durability
        • Heavy duty 1” CNC machined shock shafts
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $5293.51

        Only 2 left in stock
        While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few drivers seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.
          • SKU
            FRDK-58755
          • Weight
            85 lbs
          • Dimensions (L x W x H)
            33 x 15 x 10 in
          • Barcode
            00840103404554
          • Manufacturer Part #
            58755
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2007ToyotaTundra
        2008ToyotaSequoia
        2008ToyotaTundra
        2009ToyotaSequoia
        2009ToyotaTundra
        2010ToyotaSequoia
        2010ToyotaTundra
        2011ToyotaSequoia
        2011ToyotaTundra
        2012ToyotaSequoia
        2012ToyotaTundra
        2013ToyotaTundra
        2013ToyotaSequoia
        2014ToyotaTundra
        2014ToyotaSequoia
        2015ToyotaSequoia
        2015ToyotaTundra
        2016ToyotaSequoia
        2016ToyotaTundra
        2017ToyotaTundra
        2017ToyotaSequoia
        2018ToyotaSequoia
        2018ToyotaTundra
        2019ToyotaTundra
        2019ToyotaSequoia
        2020ToyotaTundra
        2020ToyotaSequoia
        2021ToyotaSequoia
        2021ToyotaTundra
        2022ToyotaSequoia
