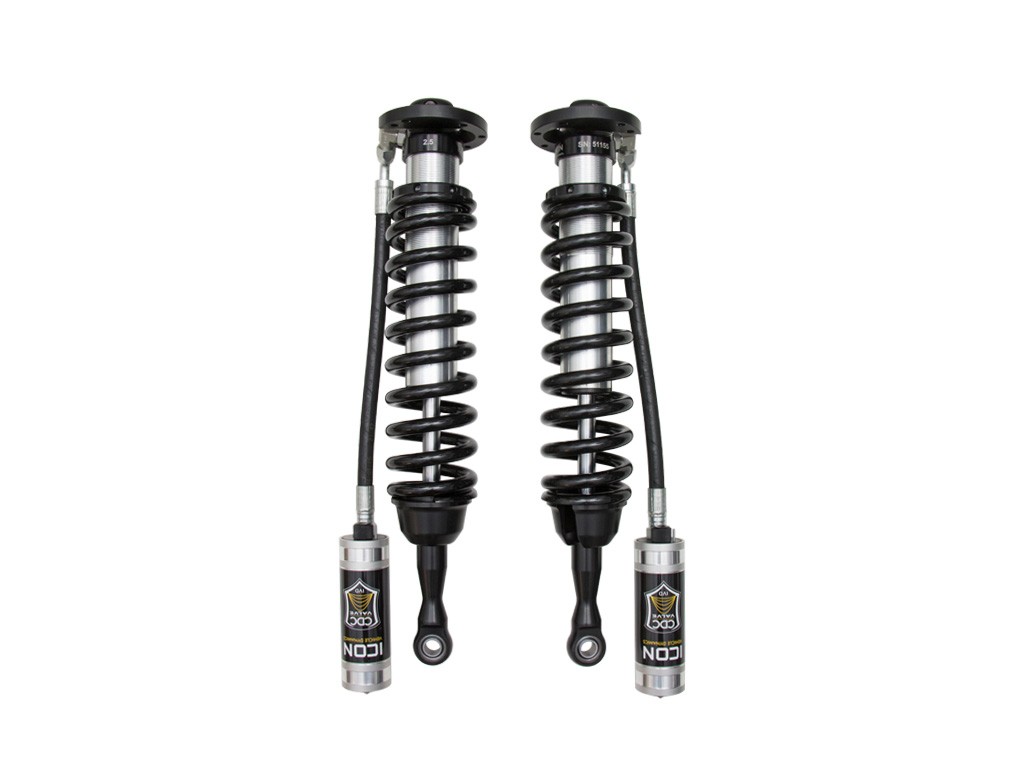

ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
- Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Vehicle specific shock length yields maximum wheel travel
- Height-adjustable coilovers offer 1.-3" of lift height adjustment over stock
- 2.5" diameter shock bodies with remote reservoirs
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- California Proposition 65WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- 3390Performance
- 408Center of Eylet
- 409Top of Upper Mount Plate
- 48Eyelet
- 49Mounting Plate
- 50No
- 522.5
- AAP_UDA_12EA
- AAP_UDA_221
- AAP_UDA_455
- Add-On Part51046 - 07-21 TUNDRA/200 SERIES BUMP STOP SPACER KIT
- Coil Over Springs IncludedYes
- Damping TypeOil
- Dust ShieldNo
- MaterialSteel
- Maximum Lift3
- OEM Wheels & Tires FitmentYes
- Recommended Aftermarket Tires35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket WheelsICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
- Service Parts611025 - 07 TUNDRA CO HARDWARE KIT PAIR
- Shaft Diameter0.875
- Spring ColorBlack
- Spring MaterialSteel
- Spring Rate TypeLinear
- 2917yes
- 51yes
- 8703No
- Spring Rate600
- Remote ReservoirYes
- Adjustable DampingYes
- Damping Adjustment TypeManual
- Minimum Lift1
- BrandICON Vehicle Dynamics
- Extended information
- EmissionsInfo missing
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2007 | Toyota | Tundra | |
2008 | Toyota | Sequoia | |
2008 | Toyota | Tundra | |
2009 | Toyota | Sequoia | |
2009 | Toyota | Tundra | |
2010 | Toyota | Sequoia | |
2010 | Toyota | Tundra | |
2011 | Toyota | Sequoia | |
2011 | Toyota | Tundra | |
2012 | Toyota | Sequoia | |
2012 | Toyota | Tundra | |
2013 | Toyota | Tundra | |
2013 | Toyota | Sequoia | |
2014 | Toyota | Tundra | |
2014 | Toyota | Sequoia | |
2015 | Toyota | Sequoia | |
2015 | Toyota | Tundra | |
2016 | Toyota | Sequoia | |
2016 | Toyota | Tundra | |
2017 | Toyota | Tundra | |
2017 | Toyota | Sequoia | |
2018 | Toyota | Sequoia | |
2018 | Toyota | Tundra | |
2019 | Toyota | Tundra | |
2019 | Toyota | Sequoia | |
2020 | Toyota | Tundra | |
2020 | Toyota | Sequoia | |
2021 | Toyota | Sequoia | |
2021 | Toyota | Tundra | |
2022 | Toyota | Sequoia |
