        STEERING UPGRADE KIT CHEVY/GM DURAMAX 1500HD & 2500HD/3500HD 2001-2010

        SKU: 1032160-BKJX

        STEERING UPGRADE KIT - CHEVY/GM DURAMAX 1500HD 2001-2003 & 2005-2007 & 2500 HD/3500HD SILVERADO / SIERRA 2001-2010 WITH PITMAN/IDLER

        • Forged I-Beam Centerlink 30% stronger than OEM for less deflection
        • Forged Centerlink retains factory geometry for accurate steering
        • Tie rods 1.5x larger than OEM
        • Larger Greaseable Ball Joints for long service life

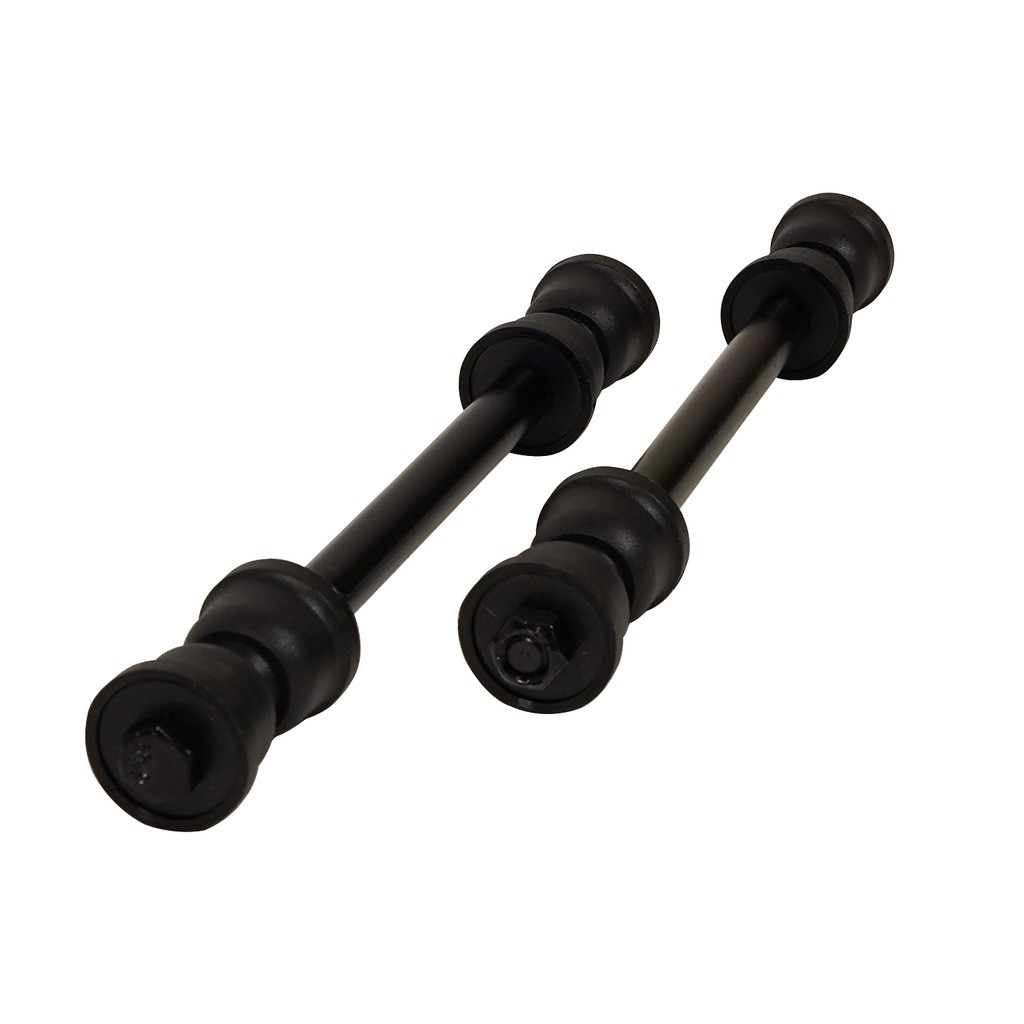

        • Sway bar end links 1-inch longer than factory to accommodate leveling kits
        • Durable polyurethane sway bar end link bushings shaped for articulation and durability
        • 1-inch longer Sway bar end links prevent damage to Tie Rod Seals/Boots

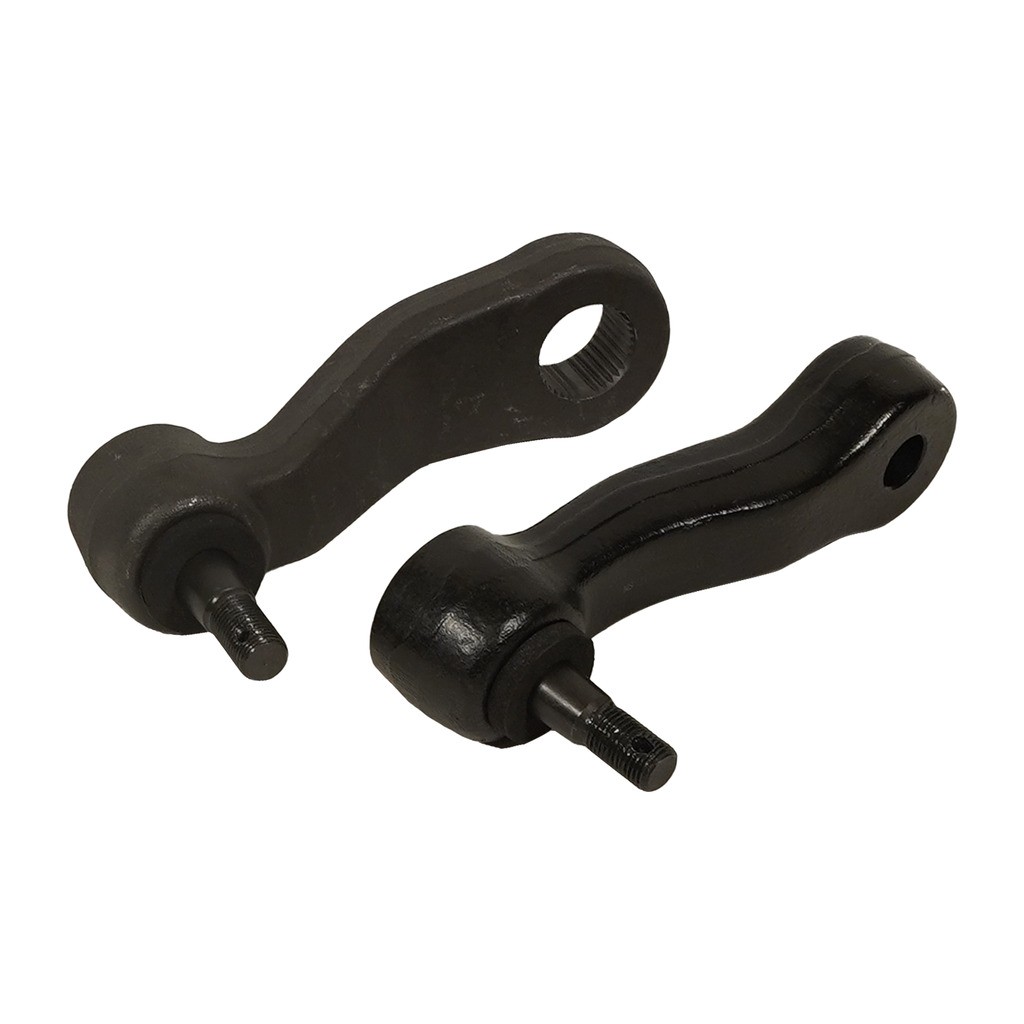

        • Greaseable pitman arm and idler arm
        • Compatible with OEM components
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $1272.95

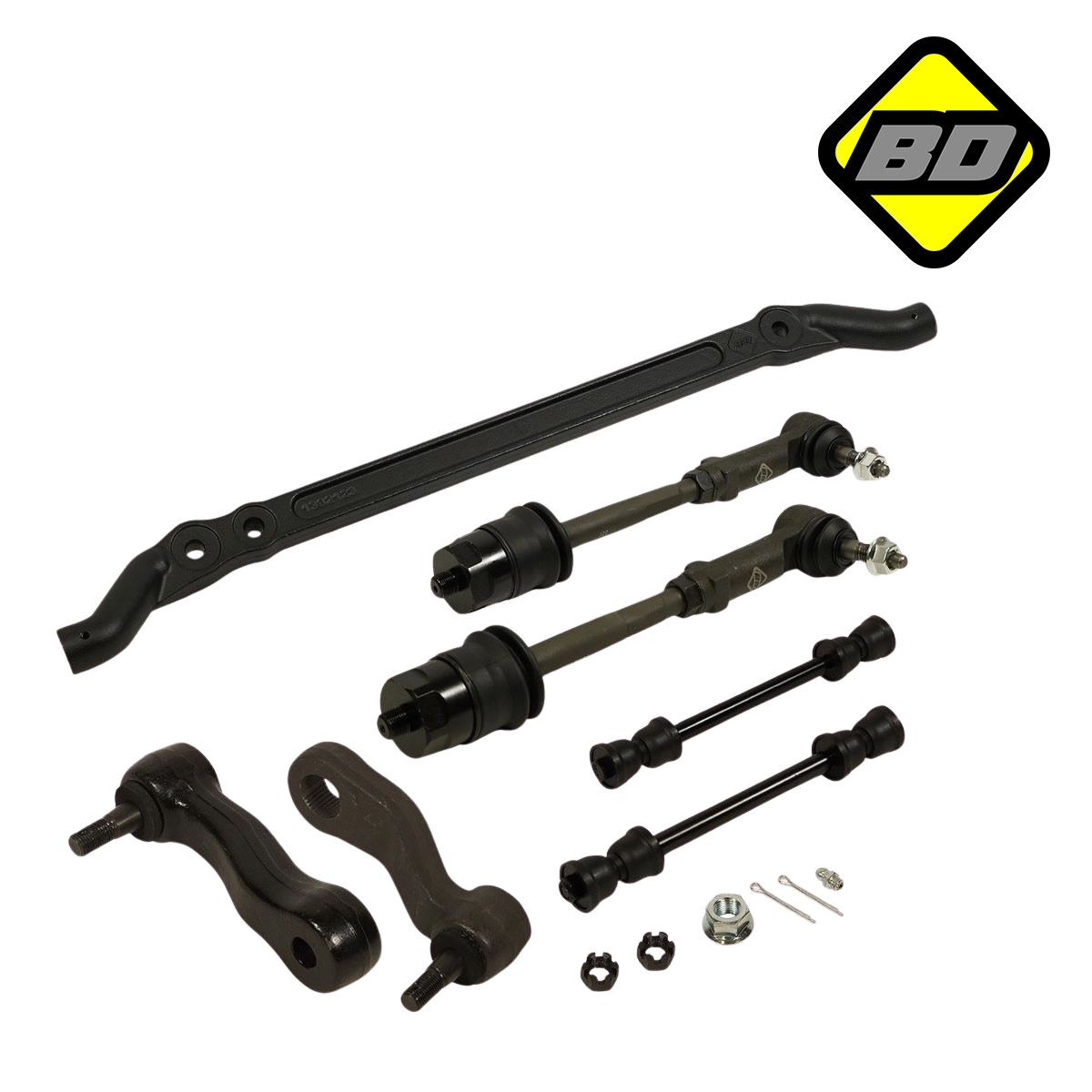

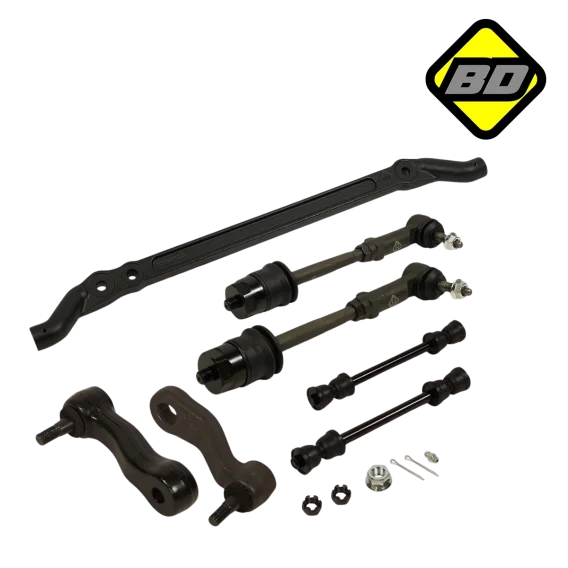

        A major common weak point on Chevrolet/GM HD series trucks is the steering linkage and tie rods with high torque engines, lift kits, and larger tires putting greater strains on the steering system than what OEM intended. These common failures include loose steering, front wheels toe-in under load while in four-wheel drive, and broken tie rods. If you have performance upgrades in your truck, lifted it, or do serious towing, you will want to upgrade your steering kit BEFORE doing catastrophic damage to your truck! This kit includes centerlink, tie-rods (2), sway bar end links (2), pitman arm (3-spline), and idler arm. The forged I-Beam Centerlink is 30% stronger than OEM which reduces flex in the steering system and creates a strong base for the tie rods to be attached to. The tie rods are 1.5x thicker than OEM for reduced flex and have larger inner ball joints for reduced wear. Testing has shown that BD tie rods can take over double the amount of force than what OEM rods can handle. Ball joints come with sintered bearings and allow for better load holding and increased life. Longer, high-strength through bolt-designed sway bar end links are included to accommodate larger tie rods and leveling kits. Polyurethane bushings have OEM-style shaping for articulation and durability. Ball joints, pitman, and idler arm are all greaseable. The entire kit retains factory geometry for accurate steering and will allow for any OEM replacement parts to drop in without any geometry sacrifice or modification required.

          • SKU
            1032160-BKJX
          • Weight
            37 lbs
          • Dimensions (L x W x H)
            38 x 9 x 4 in
          • Barcode
            00990011410656
          • Manufacturer Part #
            1032160
        • Category
          Steering
        • Engine
          Gasoline
        • Make
          Chevy/GM
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1057937
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2001ChevroletSilverado 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2001ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2001GMCSierra 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2001GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2002ChevroletSilverado 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2002ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2002GMCSierra 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2002GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2003ChevroletSilverado 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2003ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2003GMCSierra 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2003GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2004ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2004GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2005ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2005ChevroletSilverado 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2005GMCSierra 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2005GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2006GMCSierra 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2006GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2006ChevroletSilverado 1500 HDComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2006ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2007ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2007ChevroletSilverado 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2007ChevroletSilverado 1500 HD ClassicComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2007GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2007GMCSierra 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2007GMCSierra 1500 HD ClassicComes with Pitman Arm;; EngineBase: 6.0 L (364 cid) (5967 cc) V8 Bore: 4.00 in.(101.6mm) Stroke: 3.62 in.(92.0mm);
        2008ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2008ChevroletSilverado 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2008GMCSierra 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2008GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2009ChevroletSilverado 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2009ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2009GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2009GMCSierra 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2010ChevroletSilverado 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2010ChevroletSilverado 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2010GMCSierra 2500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
        2010GMCSierra 3500 HDComes with Pitman Arm;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm);
