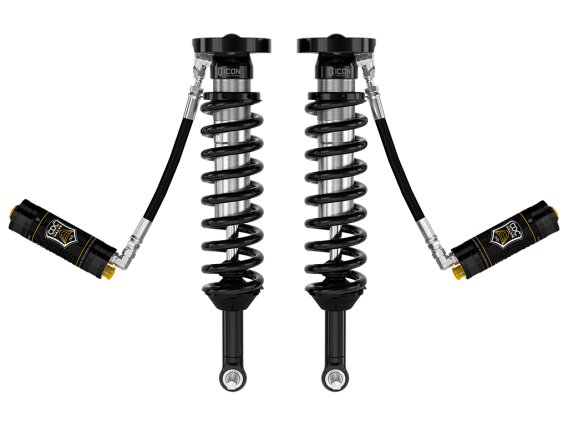

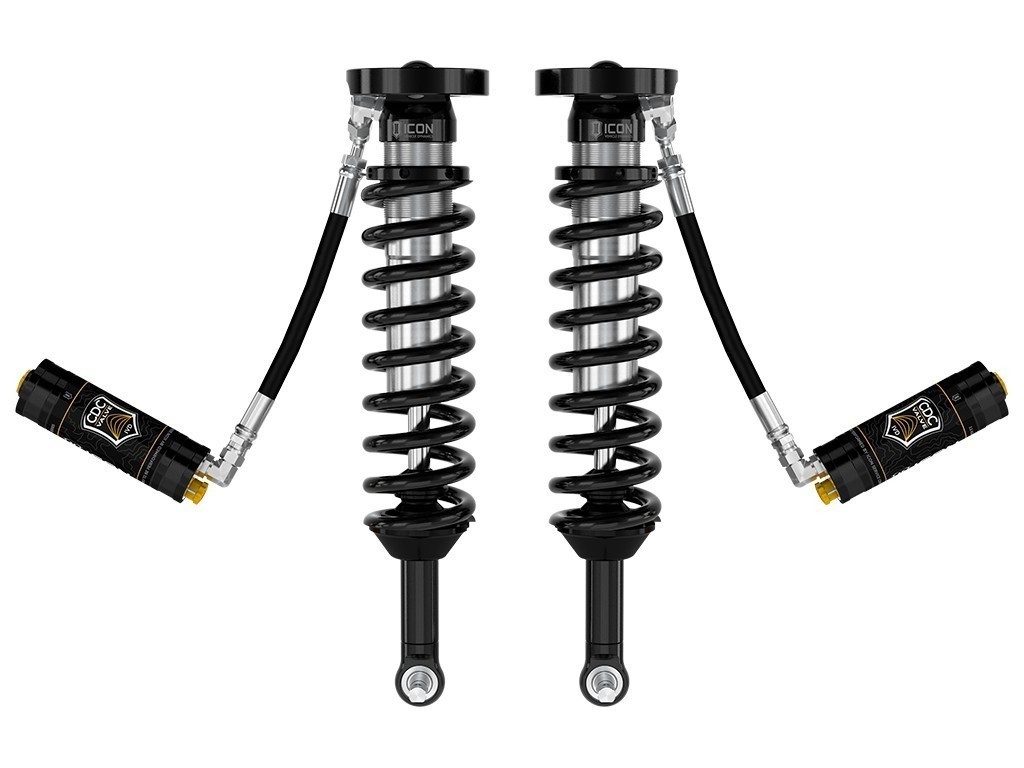

ICON 2023 GMC Canyon/Chevrolet Colorado Trail Boss & ZR2, 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV
SKU: FRDK-71670C
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
- 20% increase in front wheel travel and improved ride quality over stock
- PTFE lined spherical bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5" of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
Vehicle Specific
Check if this part fits your vehicle.
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023 GMC Canyon and 2023 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.
- California Proposition 65WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
- 2917Yes
- 3390Performance
- 408Flat on Bar Pin
- 409Top of Upper Mount Plate
- 48BAR PIN
- 49Mounting Plate
- 50No
- 51Yes
- 522.5
- AAP_UDA_12EA
- AAP_UDA_221
- AAP_UDA_455
- Add-On Part198001 - BILLET SPANNER WRENCH KIT
- Coil Over Springs IncludedYes
- Damping TypeOil
- Dust ShieldNo
- MaterialSteel
- Maximum Lift2.5
- OEM Wheels & Tires FitmentYes
- Recommended Aftermarket Tires35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels17x8.5" w/ 5.46” Backspace / 18mm Offset
- Service Parts252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Shaft Diameter0.875
- Spring ColorBlack
- Spring MaterialSteel
- Spring Rate TypeLinear
- 8703No
- Remote ReservoirYes
- Adjustable DampingYes
- Damping Adjustment TypeManual
- Minimum Lift1.75
- BrandICON Vehicle Dynamics
- Extended information
- EmissionsInfo missing
- Life Cycle StatusAvailable To Order
