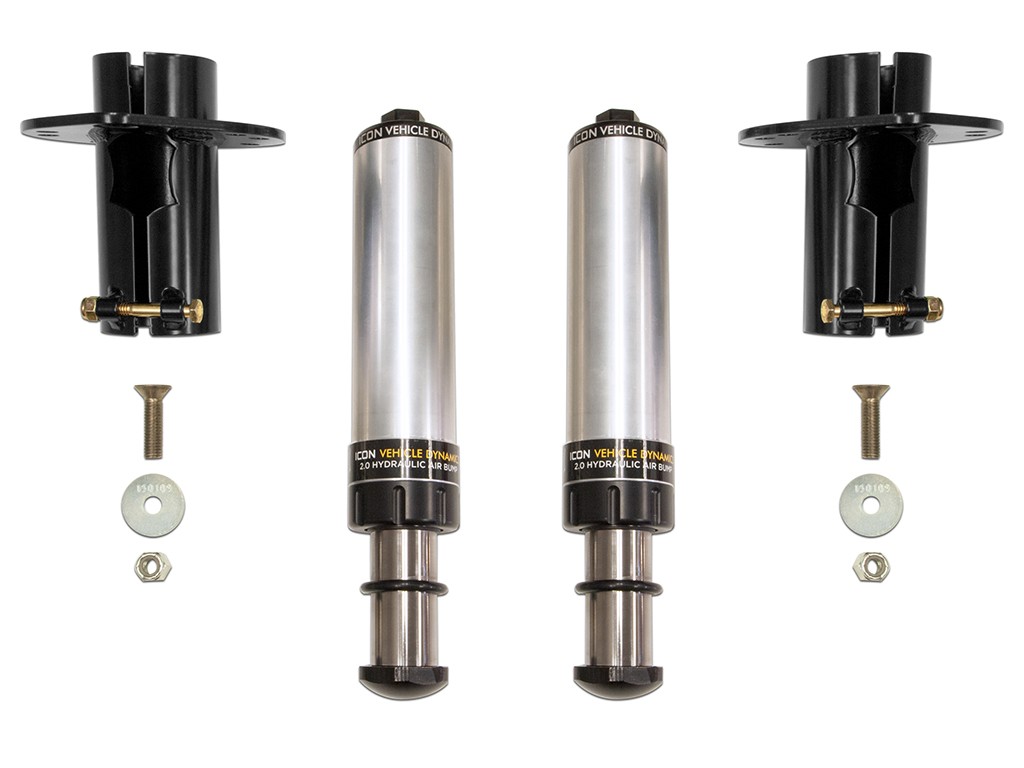

ICON 2020-Up Jeep JT/2018-Up JL, Hydraulic Bump Stop Kit
2020-UP JEEP JT / 2018-UP JEEP JL / 2007-2018 JEEP JK FRONT HYDRAULIC BUMP STOP KIT
- Straightforward bolt-on installation
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- 2.5” travel hydraulic bump stop reduces front end bottom-out and improves overall vehicle performance

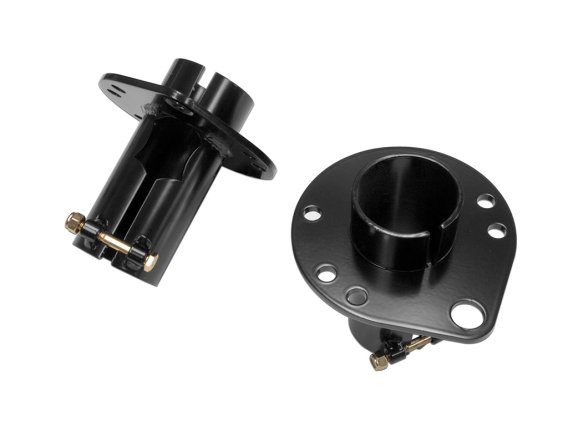

- Steel bump stop brackets guaranteed for life against breakage or manufacturer defect
- Velocity sensitive technology exponentially increases bottom-out resistance
- Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
- Heavy duty 1.25” CNC machined nitro steel shafts
- Multi-stage CAD plated body for maximum corrosion resistance
- Replaceable noise-reducing striker pad
- Fully serviceable
The ICON Vehicle Dynamics Front Hydraulic Bump Stop Kit for the 2007-2018 Jeep Wranger JK, 2018-UP Jeep Wrangler JL and 2020-Up Jeep Gladiator was deigned to provide unparalleled off-road performance at the limits of wheel travel by adding an extra layer of ICON damping ability to the front of your Jeep. The function of the bump stop is to control and limit the final position of the suspension during up-travel. The factory bump stops have a limited energy absorption capacity and an uncontrolled release of this energy upon rebound – translating into a harsh ride and poor handling during more aggressive driving in rough terrain. ICON’s Front Hydraulic Bump Stop Kit features velocity sensitive technology meaning that as the shaft speed increases the damping ramps up to provide excellent bottoming resistance that won’t negatively affect articulation. This energy is then released in a much more controlled manner allowing drivers to focus on the obstacles in front of them rather than being bounced around the cab.
- California Proposition 65WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- 17Silver
- 30yes
- 3390Performance
- AAP_UDA_12EA
- AAP_UDA_221
- AAP_UDA_455
- Attachment TypeBolt On
- Bumper MaterialHydraulic
- Diameter2
- Length2.5
- Service Parts202004 - 2.0 AIR BUMP REBUILD KIT
- BrandICON Vehicle Dynamics
- Extended information
- EmissionsInfo missing
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2007 | Jeep | Wrangler | |
2008 | Jeep | Wrangler | |
2009 | Jeep | Wrangler | |
2010 | Jeep | Wrangler | |
2011 | Jeep | Wrangler | |
2012 | Jeep | Wrangler | |
2013 | Jeep | Wrangler | |
2014 | Jeep | Wrangler | |
2015 | Jeep | Wrangler | |
2016 | Jeep | Wrangler | |
2017 | Jeep | Wrangler | |
2018 | Jeep | Wrangler | |
2018 | Jeep | Wrangler JK | |
2019 | Jeep | Wrangler | |
2020 | Jeep | Gladiator | |
2020 | Jeep | Wrangler | |
2021 | Jeep | Gladiator | |
2021 | Jeep | Wrangler | |
2022 | Jeep | Wrangler | |
2022 | Jeep | Gladiator |
