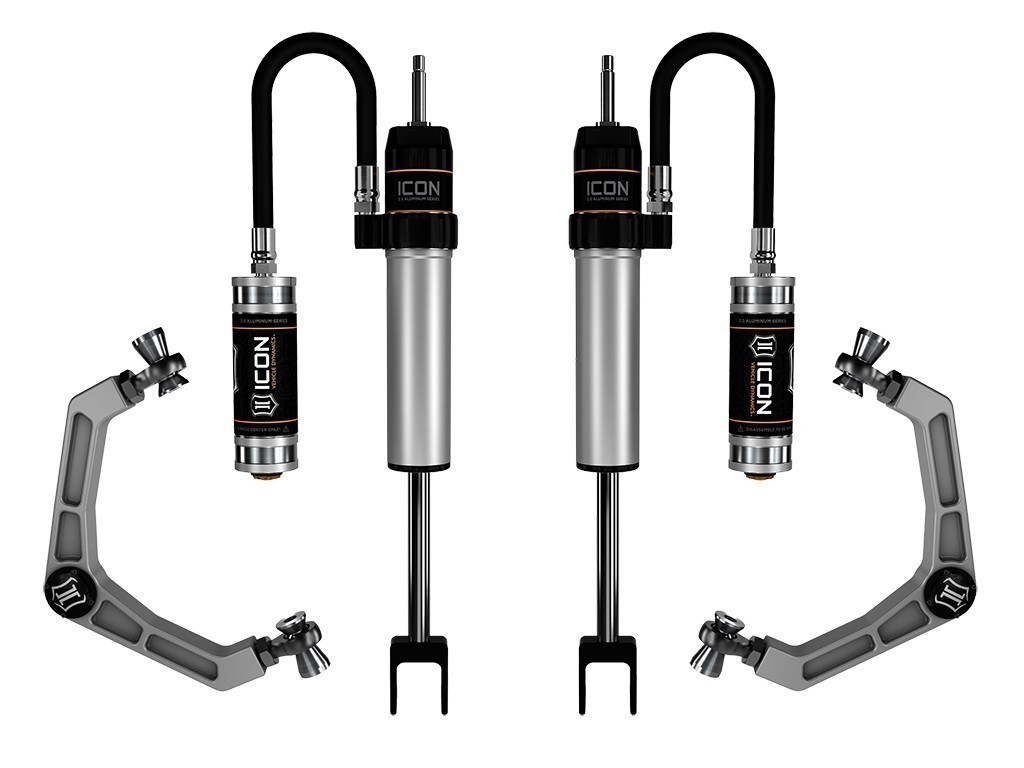

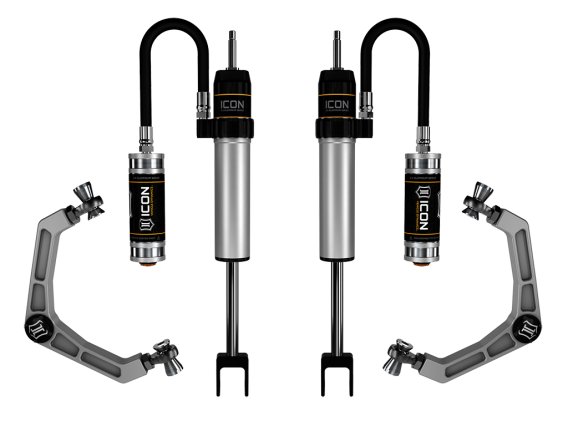

        ICON 2020-Up GM 2500/3500 HD, 0-2” Lift, 2.5 VS Shock System RR/CDCV, Billet UCA

        SKU: FRDK-78734

        2020-UP GM HD 0-2" LIFT REMOTE RESERVOIR SHOCK SYSTEM WITH BILLET UCA

        • Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • 7/8" diameter induction hardened, chrome plated shock shaft
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • 100% Rebuildable
        • 100% Revalveable
        • CNC machined 6061 billet aluminum construction for light weight and exceptional strength
        • Additional camber and caster adjustability allows for precise wheel alignment
        • PTFE Lined 7/8” FK Rod Ends for improved response
        • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • Nitrogen charged monotube design with remote reservoir
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
        • ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
        • Built in o-ring sealed dust cover cap
        • Vehicle specific taper pin provides OE-like fitment
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $4199.93

        Out of stock
        Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.
          • SKU
            FRDK-78734
          • Weight
            50 lbs
          • Barcode
            00840103410562
          • Dimensions (L x W x H)
            31 x 13 x 7 in
          • Manufacturer Part #
            78734
        • 2330
          Yes
        • 2354
          Performance
        • 2371
          Yes
        • 2386
          Billet
        • 2389
          Aluminum
        • 30
          Yes
        • 3390
          Performance
        • 40
          No
        • 4888
          Silver
        • 73
          Rod End Bearing
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • California Proposition 65
          WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
        • 2339
          yes
        • 2382
          Press In
        • 2383
          Threaded
        • 2384
          Yes
        • Add-On Part
          77202 - 20-UP GM HD FRONT SPLASH GUARD KIT
        • Finish
          Powdercoated
        • OEM Wheels & Tires Fitment
          Yes
        • Recommended Aftermarket Tires
          35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
        • Recommended Aftermarket Wheels
          ICON Alloys - 20x9" w/ 5.5” Backspace / 12mm Offset
        • Service Parts
          614520 - DELTA JOINT INSTALL ADAPTER AND SHIM
        • Bushing Color
          Gold
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2020ChevroletSilverado 2500 HD
        2020ChevroletSilverado 3500 HD
        2020ChevroletSilverado 3500 HD HD
        2020GMCSierra 2500 HD
        2020GMCSierra 3500 HD
        2020GMCSierra 3500 HD HD
        2021GMCSierra 3500 HD HD
        2021GMCSierra 2500 HD
        2021ChevroletSilverado 3500 HD HD
        2021ChevroletSilverado 2500 HD
        2022GMCSierra 3500 HD HD
        2022GMCSierra 2500 HD
        2022ChevroletSilverado 3500 HD HD
        2022ChevroletSilverado 2500 HD
