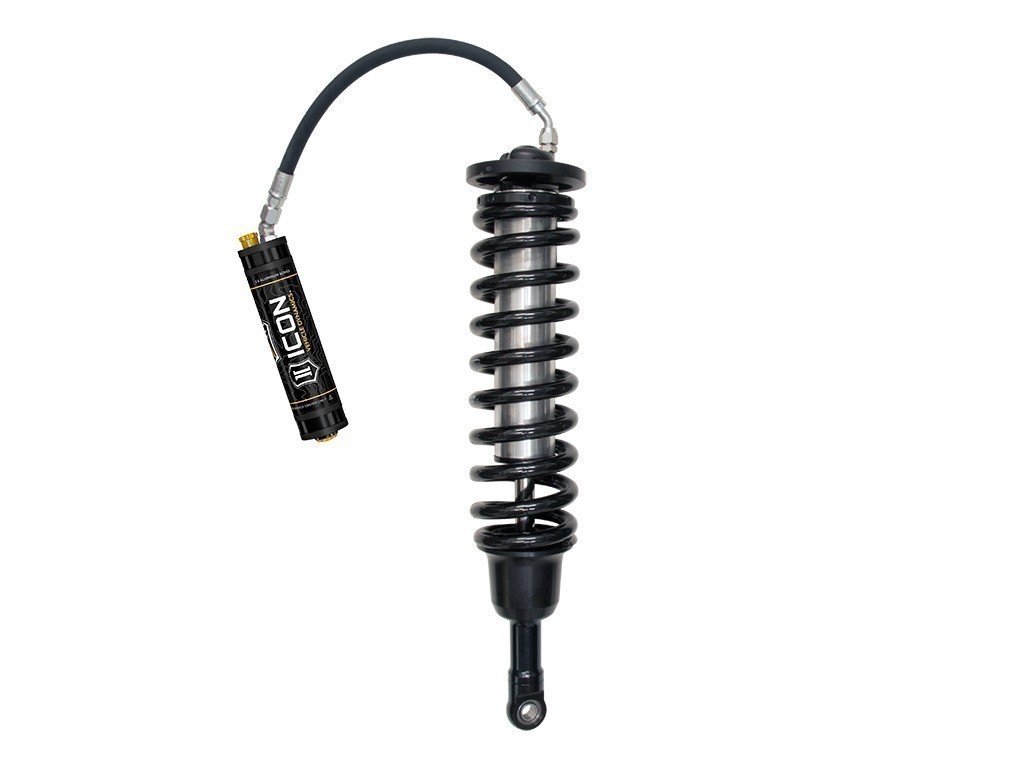

ICON 2010-14 Ford Raptor Front 3.0 VS Remote Reservoir/CDCV Coilover, Driver
SKU: FRDK-95000L
2010-2014 FORD RAPTOR FRONT 3.0 VS COILOVER REMOTE RESERVOIR CDCV DRIVER SIDE
- 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shock
- Oversized 1” Heavy Duty CNC Machined Shock Shafts
- Extended Droop Travel and Increased Overall Performance on and off road
- Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
- Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
- Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
- Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs that are Precision CNC Honed & Hard Anodized
- Adjustable Ride Height from 1 – 3.5” of Lift
- ICON Engineered Eibach 3 5/8” ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
Vehicle Specific
Check if this part fits your vehicle.
ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street "pickup truck" and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.
- California Proposition 65WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- 3390Performance
- 408Center of Eylet
- 409Top of Upper Mount Plate
- 48Eyelet
- 49Mounting Plate
- 50No
- 523
- AAP_UDA_12EA
- AAP_UDA_221
- AAP_UDA_455
- Add-On Part252012 - -4 TO -10 HOSE SHIELD KIT
- Coil Over Springs IncludedYes
- Damping TypeOil
- Dust ShieldNo
- OEM Wheels & Tires FitmentYes
- Recommended Aftermarket Tires35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket WheelsICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Service Parts611019 - COILOVER HARDWARE KIT PAIR
- Shaft Diameter1
- Spring ColorBlack
- Spring MaterialSteel
- 2917yes
- 51yes
- Remote ReservoirYes
- Adjustable DampingYes
- BrandICON Vehicle Dynamics
- Extended information
- EmissionsInfo missing
- Life Cycle StatusAvailable To Order
