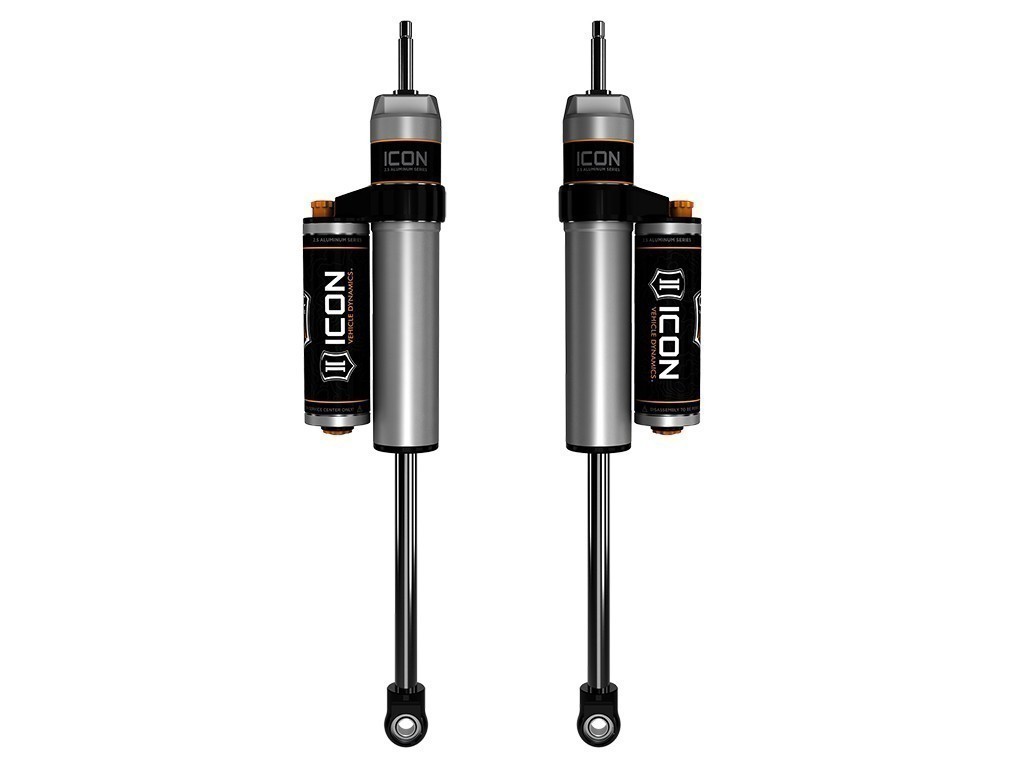

ICON 2007-18 Jeep JK Wrangler, 3" Lift, Rear, 2.5 VS Piggyback/CDCV Shocks, Pair

        SKU: FRDK-27725CP

        2007-2018 JK 3" LIFT REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR

        • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • PTFE lined spherical bearings and application specific mounting hardware
        • 6061 aircraft grade aluminum CNC machined components
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • 100% Rebuildable
        • 100% Revalveable
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • Nitrogen charged monotube design with piggyback reservoir
        • Double-sealed Schrader caps reduce risk of damage
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $1959.93

        Out of stock
        ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
          • SKU
            FRDK-27725CP
          • Weight
            25 lbs
          • Dimensions (L x W x H)
            39 x 10 x 9 in
          • Barcode
            00840103401799
          • Manufacturer Part #
            27725CP
        • California Proposition 65
          WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • 3390
          Performance
        • 30
          Yes
        • 408
          CENTER OF EYELET
        • 409
          Shoulder of Stem
        • 48
          EYELET
        • 49
          Stem
        • 50
          NO
        • 51
          Yes
        • 905
          2.25
        • Cylinder Color
          Silver
        • Cylinder Material
          Aluminum
        • Damping Type
          Oil
        • External Reservoir
          Yes
        • Service Parts
          611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
        • Shaft Diameter
          0.875
        • Shaft Material
          Chrome
        • 359
          2.5
        • 40
          Yes
        • Add-On Part
          252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
