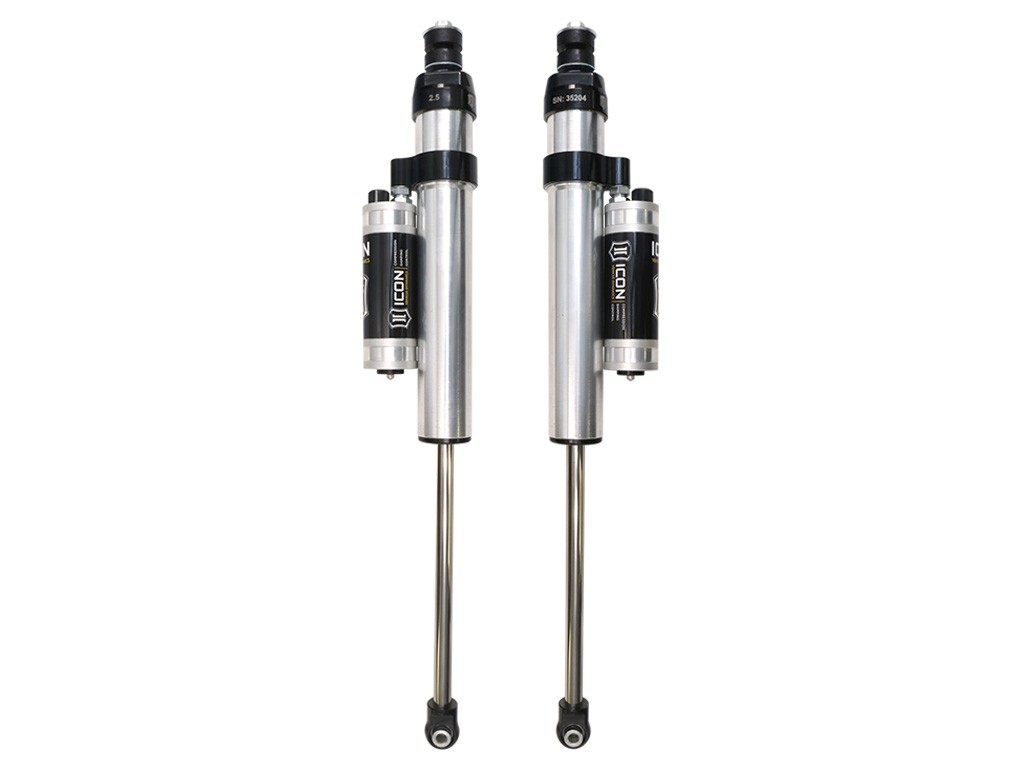

        ICON 2000-06 Toyota Tundra, 6” Lift, Rear, 2.5 VS Piggyback/CDCV Shocks, Pair

        SKU: FRDK-57716CP-CB

        2000-2006 TUNDRA 6" LIFT REAR 2.5 VS PIGGYBACK CDCV SHOCK PAIR

        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • 100% Rebuildable
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
        • 6061 aircraft grade aluminum CNC machined components
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • PTFE lined spherical bearings and application specific mounting hardware
        • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 100% Revalveable
        • Nitrogen charged monotube design with piggyback reservoir
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $2099.93

        Out of stock
        ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Seriesbypass shocks.
          • SKU
            FRDK-57716CP-CB
          • Weight
            23 lbs
          • Dimensions (L x W x H)
            39 x 10 x 9 in
          • Barcode
            00840103403274
          • Manufacturer Part #
            57716CP-CB
        • California Proposition 65
          WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
        • AAP_UDA_12
          EA
        • AAP_UDA_22
          1
        • AAP_UDA_4
          55
        • 3390
          Performance
        • 30
          Yes
        • 408
          Center of Eylet
        • 409
          Shoulder of Stem
        • 48
          EYELET
        • 49
          Stem
        • 50
          NO
        • 51
          Yes
        • 905
          2.25
        • Cylinder Color
          Silver
        • Cylinder Material
          Steel
        • Damping Type
          Oil
        • External Reservoir
          Yes
        • Service Parts
          611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
        • Shaft Diameter
          0.875
        • Shaft Material
          Chrome
        • 359
          2.5
        • 40
          Yes
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2000ToyotaTundra
        2001ToyotaTundra
        2002ToyotaTundra
        2003ToyotaTundra
        2004ToyotaTundra
        2005ToyotaTundra
        2006ToyotaTundra
