        ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-3" Lift, Stage 3 Suspension System

        SKU: FRDK-K53083

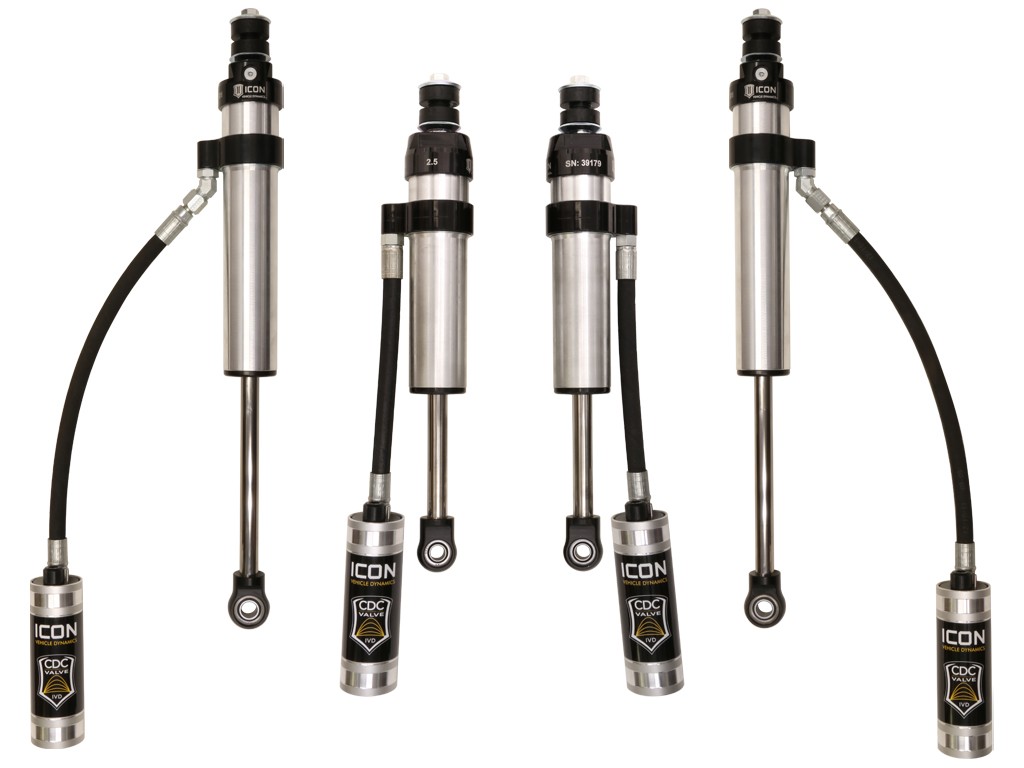

        ICON 2.5” suspension systems lift your Toyota LC100 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

        • Vehicle specific tuned front and rear shocks for superior shock damping and control
        • Remote reservoirs provided for extended shock damping performance
        • ICON CDCV equipped shocks front and rear for fully adjustable tuneability of your shocks
        • 6061 Aircraft grade aluminum CNC machined components
        • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
        • FK rod end bearings for extended longevity and minimal deflection
        • No cutting or welding necessary for install
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $3919.86

        Out of stock
        The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 3 shock system for maximum suspension travel and performance with tuning adjustability. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
          • SKU
            FRDK-K53083
          • Weight
            51 lbs
          • Dimensions (L x W x H)
            39 x 10 x 9 in
          • Barcode
            00840103417172
          • Manufacturer Part #
            K53083
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
