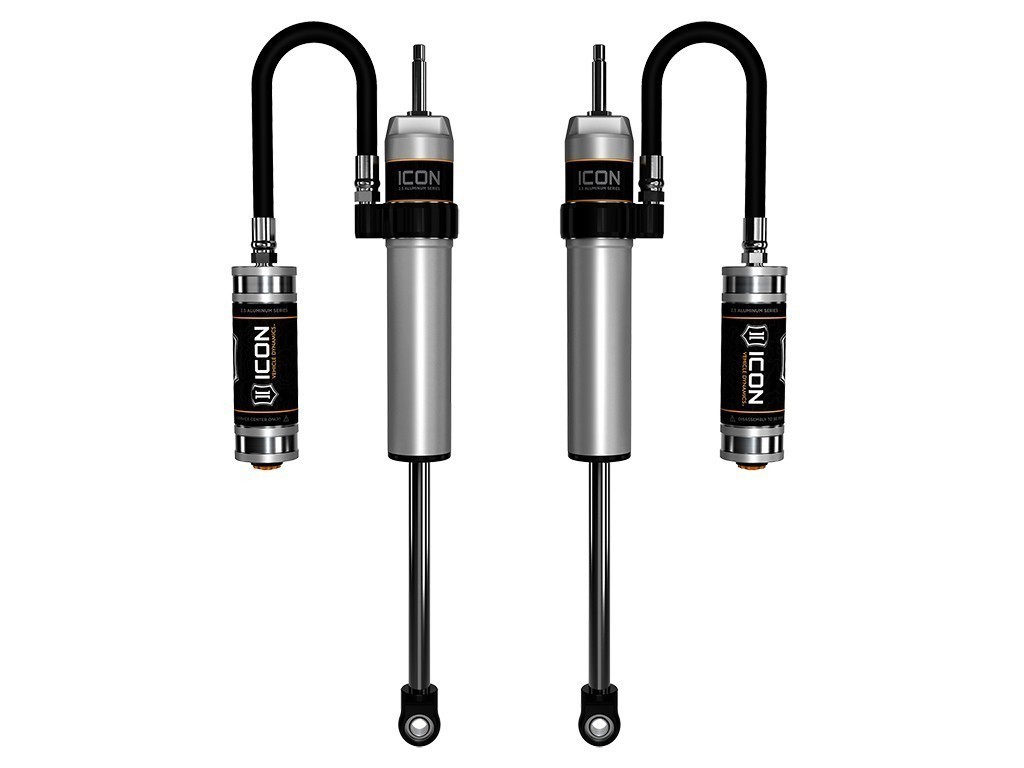

        ICON 1991-07 Toyota Land Cruiser, 0-3” Lift, Rear, 2.5 VS RR Shocks, Pair

        SKU: FRDK-57802P

        1991-2007 LAND CRUISER 80/100 SERIES 0-3" LIFT REAR 2.5 VS REMOTE RESERVOIR SHOCK PAIR

        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • 6061 aircraft grade aluminum CNC machined components
        • 100% Rebuildable
        • 100% Revalveable
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • PTFE lined spherical bearings and application specific mounting hardware
        • 7/8” diameter induction hardened, chrome plated shock shafts
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • Nitrogen charged monotube design with piggyback reservoir
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $1560.93

        Out of stock
        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
          • SKU
            FRDK-57802P
          • Weight
            31 lbs
          • Dimensions (L x W x H)
            39 x 15 x 9 in
          • Barcode
            00840103403427
          • Manufacturer Part #
            57802P
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        1991ToyotaLand Cruiser
        1996LexusLX450
        1996ToyotaLand Cruiser
        1998LexusLX470
        1998ToyotaLand Cruiser
        1997LexusLX450
        1997ToyotaLand Cruiser
        1999LexusLX470
        1999ToyotaLand Cruiser
        2000LexusLX470
        2000ToyotaLand Cruiser
        2001LexusLX470
        2001ToyotaLand Cruiser
        2002LexusLX470
        2002ToyotaLand Cruiser
        2003LexusLX470
        2003ToyotaLand Cruiser
        1992ToyotaLand Cruiser
        1993ToyotaLand Cruiser
        1994ToyotaLand Cruiser
        1995ToyotaLand Cruiser
        2004LexusLX470
        2004ToyotaLand Cruiser
        2005LexusLX470
        2005ToyotaLand Cruiser
        2006LexusLX470
        2006ToyotaLand Cruiser
        2007LexusLX470
        2007ToyotaLand Cruiser
