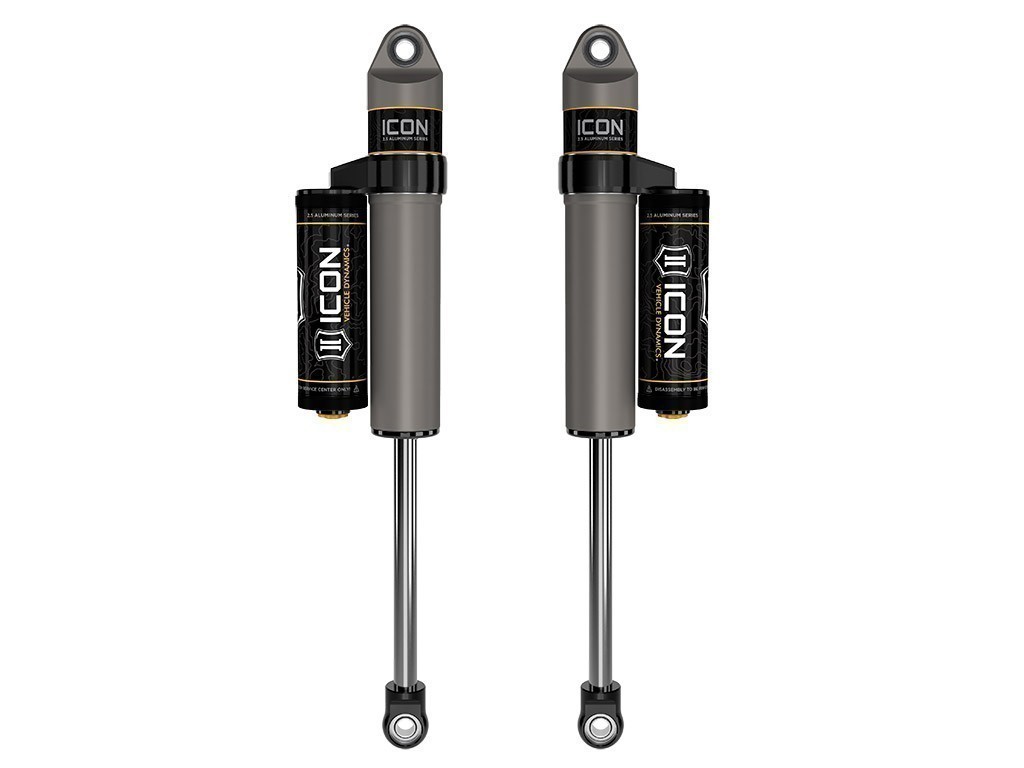

        ICON 09-23 Ford F150 2/4WD/ 04-08 F150 4WD Rear 2.5 VS Shocks PB Reservoir, Pair

        SKU: FRDK-97720P

        ICON 2.5 Series shocks are configured specifically for each application in both length and damping tune. Piggyback reservoir improves cooling and creates an internal Bump Zone that when used creates an additional 20% of damping force.

        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • PTFE lined spherical bearings and application specific mounting hardware
        • 6061 aircraft grade aluminum CNC machined components
        • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
        • 100% Rebuildable
        • 100% Revalveable
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • Nitrogen charged monotube design with piggyback reservoir
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 7/8” diameter induction hardened, chrome plated shock shaft
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $1595.93

        Only 3 left in stock
        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
          • SKU
            FRDK-97720P
          • Weight
            22 lbs
          • Dimensions (L x W x H)
            39 x 15 x 9 in
          • Barcode
            00840103407395
          • Manufacturer Part #
            97720P
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
