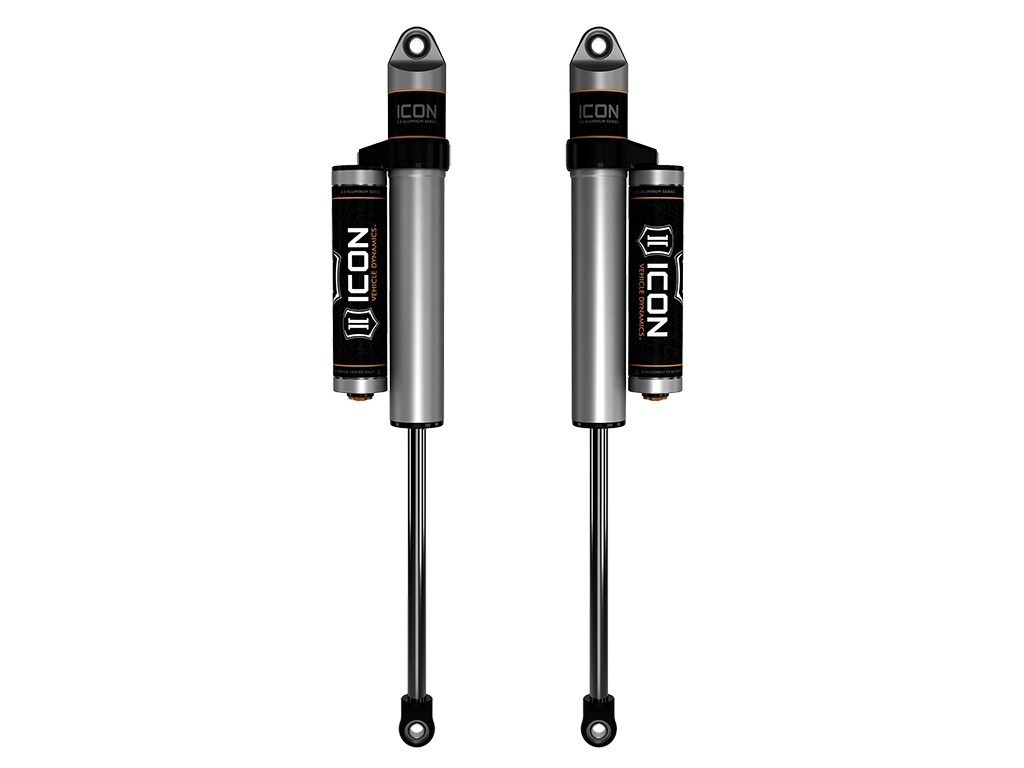

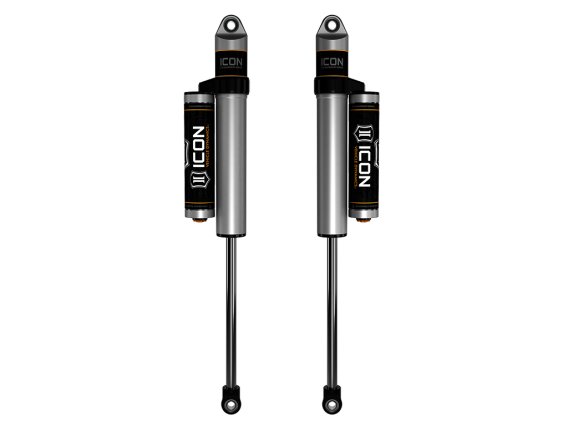

        ICON 08-16 Ford F250/350 4WD 4.5-9” Lift Front, 2.5 VS PB Secondary Shocks, Pair

        SKU: FRDK-61710P

        2008-2016 FSD 4WD 4.5-9" FRONT SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR

        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 100% Revalveable
        • Nitrogen charged monotube design with piggyback reservoir
        • 100% Rebuildable
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • Double-sealed Schrader caps reduce risk of damage
        • 6061 aircraft grade aluminum CNC machined components
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • PTFE lined spherical bearings and application specific mounting hardware
        • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $1532.93

        Out of stock
        ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
          • SKU
            FRDK-61710P
          • Weight
            25 lbs
          • Dimensions (L x W x H)
            39 x 10 x 9 in
          • Barcode
            00840103405407
          • Manufacturer Part #
            61710P
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2008FordF-250 Super Duty
        2008FordF-350 Super Duty
        2009FordF-250 Super Duty
        2009FordF-350 Super Duty
        2010FordF-250 Super Duty
        2010FordF-350 Super Duty
        2011FordF-250 Super Duty
        2011FordF-350 Super Duty
        2012FordF-250 Super Duty
        2012FordF-350 Super Duty
        2013FordF-250 Super Duty
        2013FordF-350 Super Duty
        2014FordF-250 Super Duty
        2014FordF-350 Super Duty
        2015FordF-250 Super Duty
        2015FordF-350 Super Duty
        2016FordF-250 Super Duty
        2016FordF-350 Super Duty
