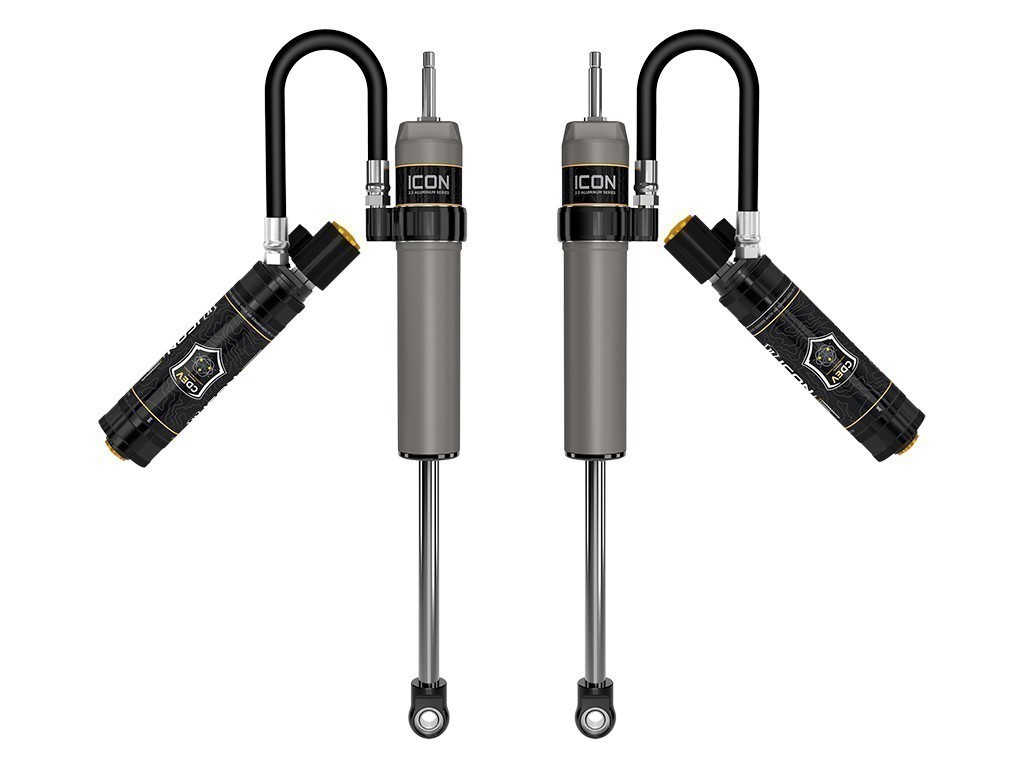

        ICON 05-24 Ford F-250/F-350 Super Duty 4WD, 0-2.5” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair

        SKU: FRDK-67800EP

        ICON 2.5 Aluminum Series shocks are designed to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

        • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
        • Fully rebuildable and re-tunable
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • PTFE lined spherical bearings and application specific mounting hardware
        • 6061 aircraft grade aluminum CNC machined components
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $2659.93

        Only 2 left in stock

        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

          • SKU
            FRDK-67800EP
          • Weight
            28 lbs
          • Dimensions (L x W x H)
            39 x 15 x 9 in
          • Barcode
            00840103414454
          • Manufacturer Part #
            67800EP
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2017FordF-250 Super Duty
        2017FordF-350 Super Duty
        2018FordF-250 Super Duty
        2018FordF-350 Super Duty
        2020FordF-250 Super Duty
        2020FordF-350 Super Duty
        2022FordF-250 Super Duty
        2022FordF-350 Super Duty
        2023FordF-250 Super Duty
        2023FordF-350 Super Duty
        2019FordF-250 Super Duty
        2019FordF-350 Super Duty
        2021FordF-350 Super Duty
        2021FordF-250 Super Duty
        2024FordF-250 Super Duty
        2024FordF-350 Super Duty
