        ICON 03-09 4Runner/FJ Cruiser 0-3.5" Lift Stage 7 Suspension System, Tubular UCA

        SKU: FRDK-K53057T

        2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5" LIFT STAGE 7 SUSPENSION SYSTEM WITH TUBULAR UCA

        • Increased wheel travel and ride quality over stock
        • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
        • Adjustable rear track bar proper rear axle placement under vehicle
        • Bolt-on system means no cutting or welding necessary for install
        • Vehicle specific tuned front and rear shocks for superior shock damping and control
        • CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
        • Adjustable coilovers provide 0-3.5" of front lift height
        • Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
        • Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
        • 6061 aircraft grade aluminum CNC machined components
        • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
        • FK Rod End bearings for extended longevity and minimal deflection
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $8434.51

        Out of stock

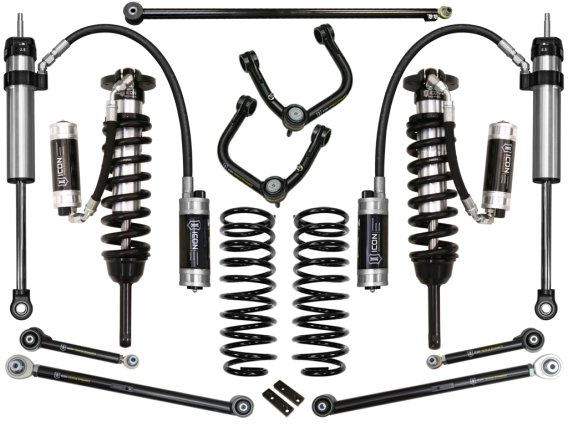

        ICON’s 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser Stage 7 suspension system provides the ultimate level of on and off-road performance of the vehicle. This system includes all of the components featured in the Stage 6 setup – ICON tubular Delta Joint upper control arm kit, 2.5 Series Remote Reservoir front coilovers and 2.5 Aluminum Series rear shocks, 2” rear coil springs, adjustable rear track bar, and a tubular rear upper and lower link arm kit - but sees the addition of ICON's Compression Damping Control Valve (CDCV) front and rear. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable “fade” occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON’s “Bump Zone” technology which significantly increases damping ability in the last 2” of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.
          • SKU
            FRDK-K53057T
          • Weight
            177 lbs
          • Dimensions (L x W x H)
            27 x 12 x 8 in
          • Barcode
            00840103416915
          • Manufacturer Part #
            K53057T
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
