        BD TowMaster Ford 5R110 Trans & Converter Package 2003-2004 4wd

        SKU: 1064464SM-BKJX

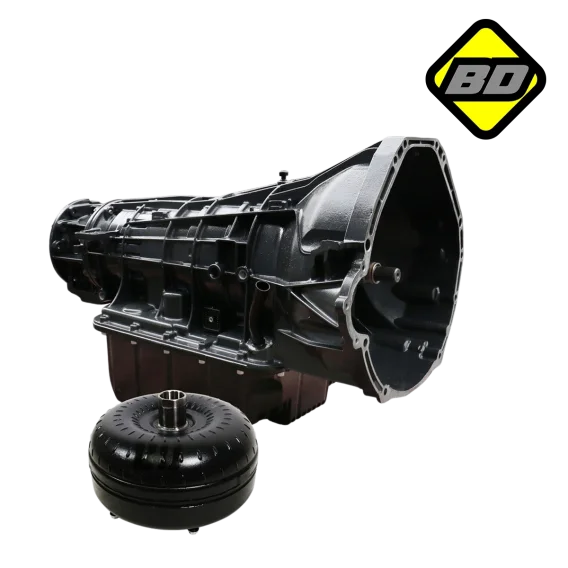

        BD TowMaster Ford 5R110 Transmission & Converter Package - 2003-2004 4wd

        • TRANSMISSION:
        • Increase the durability of your drivetrain
        • Clutch Count: INTERMEDIATE 5 (67% increase over stock)
        • Enhanced Stall - Street/Towing applications
        • Torque multiplying cast aluminum stators
        • Lower rpm response than the stock converter
        • More efficient operation
        • Less heat and better fuel economy
        • Stamp-forged steel front cover
        • Furnace-brazed fins
        • Up to triple the amount of lock-up clutch material
        • Clutch Count: DIRECT 6 (20% increase over stock)
        • Clutch Count: OVERDRIVE 5 (67% increase over stock)
        • Each transmission is dyno tested
        • BD aluminum HD deep pan, increases oil capacity by 6qt
        • Upgraded sump filter
        • Replace plastic pressure plugs in valve body with aluminum
        • Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
        • Reworked front pump
        • Clutch Count: COAST CLUTCH 3
        • Clutch Count: FORWARD 4
        • Clutch Count: LOW REVERSE 6
        • TORQUE CONVERTOR:
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $7078.95 +$2400.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

          • SKU
            1064464SM-BKJX
          • Weight
            335 lbs
          • Dimensions (L x W x H)
            23.5 x 44.5 x 27.3 in
          • Barcode
            00990011407014
          • Manufacturer Part #
            1064464SM
        • Category
          Auto Trans & Converter Packages
        • Engine
          6.0L Powerstroke 03-07
        • Make
          Ford
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1041242
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2003FordF-250 Super DutyIncl. HD Transmission Pan; 5R110 4wd transmissions; Includes multi-disc torque converter;; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2003FordF-350 Super DutyIncl. HD Transmission Pan; 5R110 4wd transmissions; Includes multi-disc torque converter;; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2003FordF-450 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2003FordF-550 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2004FordF-250 Super DutyIncl. HD Transmission Pan; 5R110 4wd transmissions; Includes multi-disc torque converter;; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2004FordF-350 Super DutyIncl. HD Transmission Pan; 5R110 4wd transmissions; Includes multi-disc torque converter;; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2004FordF-450 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2004FordF-550 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2005FordF-550 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2005FordF-450 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2005FordF-350 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2005FordF-250 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2006FordF-250 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2006FordF-350 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2006FordF-450 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2006FordF-550 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2007FordF-250 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2007FordF-350 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2007FordF-450 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
        2007FordF-550 Super Duty; EngineBase: 6.0 L (363 cid) V8 Bore: 3.74 in.(95.0mm) Stroke: 4.13 in.(105.0mm);
