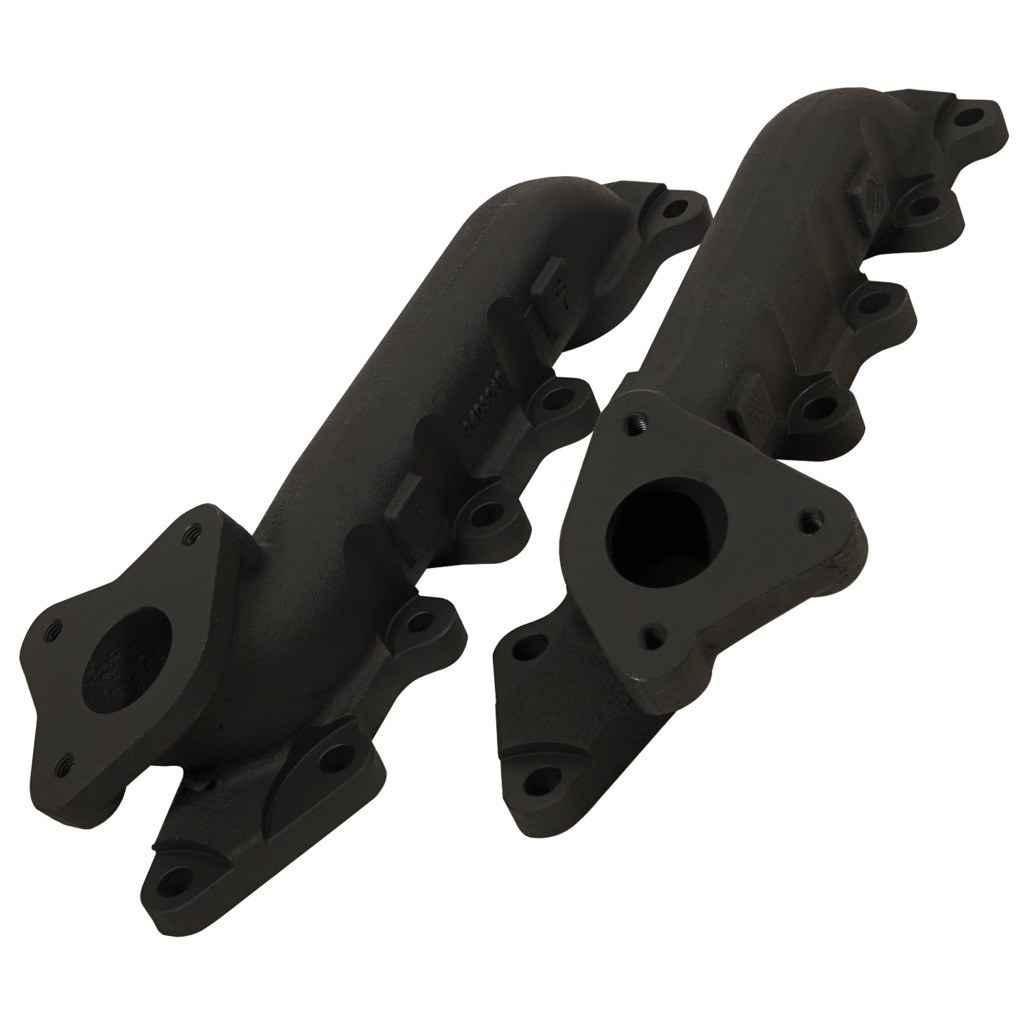

        BD Exhaust Manifolds Ford F-150 3.5L Ecoboost 2011-2016

        SKU: 1043001-BKJX

        BD Exhaust Manifolds Ford F-150 3.5L Ecoboost 2011-2016

        • Utilize 3 additional exhaust stud locations
        • Lincoln Mark LT 2011-2014
        • Lincoln Navigator 2015-2017
        • Suggest optional 1043002 addition parts kit for easier install
        • BD Thick wall high-silicon ductile cast iron resists thermal warping
        • 15mm longer exhaust studs + spacers
        • New studs, spacers, and nuts included
        • Replaces Ford OEM part numbers: BL3Z-9430-B, BL3Z-9430-D, BL3Z-9431-B, BL3Z-9431-D
        • Ford Expedition 2015-2017
        • Ford F-150 2011-2016
        • Ford F-150/Lobo 2015-2016
        • Ford Transit 2015-2023
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $579.95

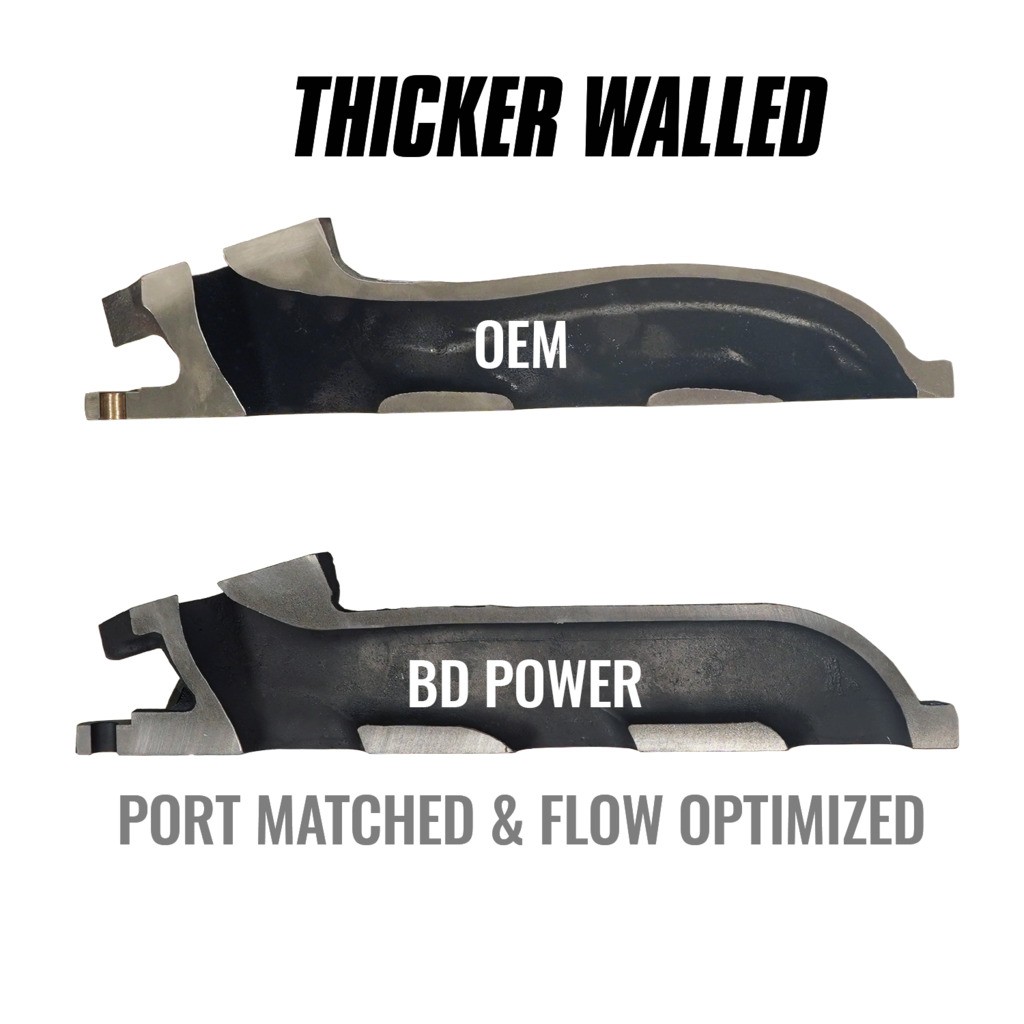

        The 2011-2016 Ford 3.5L has an inherent design flaw where not all of the OE stud locations are utilized by the OE manufacturer which leads to warped exhaust manifolds, broken exhaust studs and blown manifold gaskets. The cylinder head on Fords 3.5L Gas Ecoboost has threaded holes for 11 exhaust studs to be used, however the OE manifold only utilizes 8 of those stud locations. BD has designed a manifold that not only utilizes all 11 stud locations, but also improves exhaust flow and has improved durability, the way it should have come from the factory. BD's Ford 3.5L exhaust manifolds are made from thicker-walled high silicone ductile iron designed to resist thermal warping. Each kit includes 22 exhaust spacers and 22 class 8.8 studs designed to further improve thermal durability.

          • SKU
            1043001-BKJX
          • Weight
            20 lbs
          • Dimensions (L x W x H)
            28 x 9 x 8 in
          • Barcode
            00990011409278
          • Manufacturer Part #
            1043001
        • Category
          Manifolds & Up-pipes
        • Engine
          Gasoline
        • Make
          Ford
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1043001
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2011FordF-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2012FordF-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2013FordF-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2014FordF-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015LincolnNavigator; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordTransit-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordTransit-250CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordF-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordExpeditionCARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2015FordLobo; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016LincolnNavigator; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordExpeditionCARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordTransit-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordTransit-250CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordF-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2016FordLobo; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2017LincolnNavigator; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2017FordExpeditionCARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2017FordTransit-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2017FordTransit-250CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2017FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2017FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2018FordTransit-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2018FordTransit-250CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2018FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2018FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2020FordTransit-250; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2020FordTransit-150; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2020FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2020FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2021FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2021FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2021FordTransit-250; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2021FordTransit-150; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2022FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2022FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2022FordTransit-250; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2022FordTransit-150; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2023FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2023FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2023FordTransit-250; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2023FordTransit-150; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2019FordTransit-350 HD; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2019FordTransit-350CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2019FordTransit-250CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
        2019FordTransit-150CARB EO D-553-18; EngineBase: 3.5 L (213 cid) (3496 cc) V6 Bore: 3.64 in.(92.5mm) Stroke: 3.41 in.(86.7mm);
