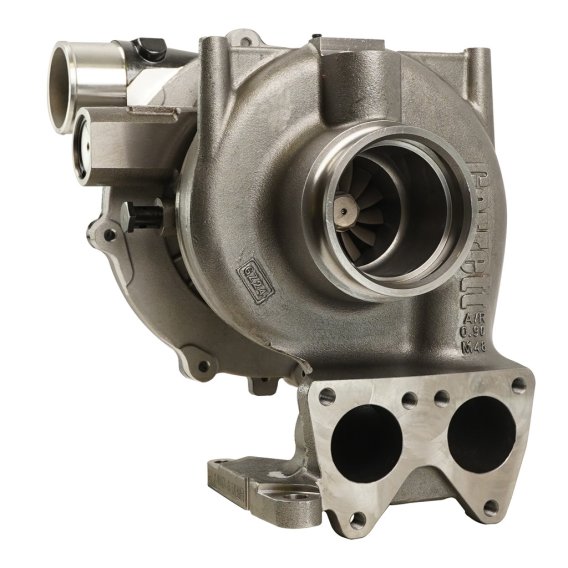

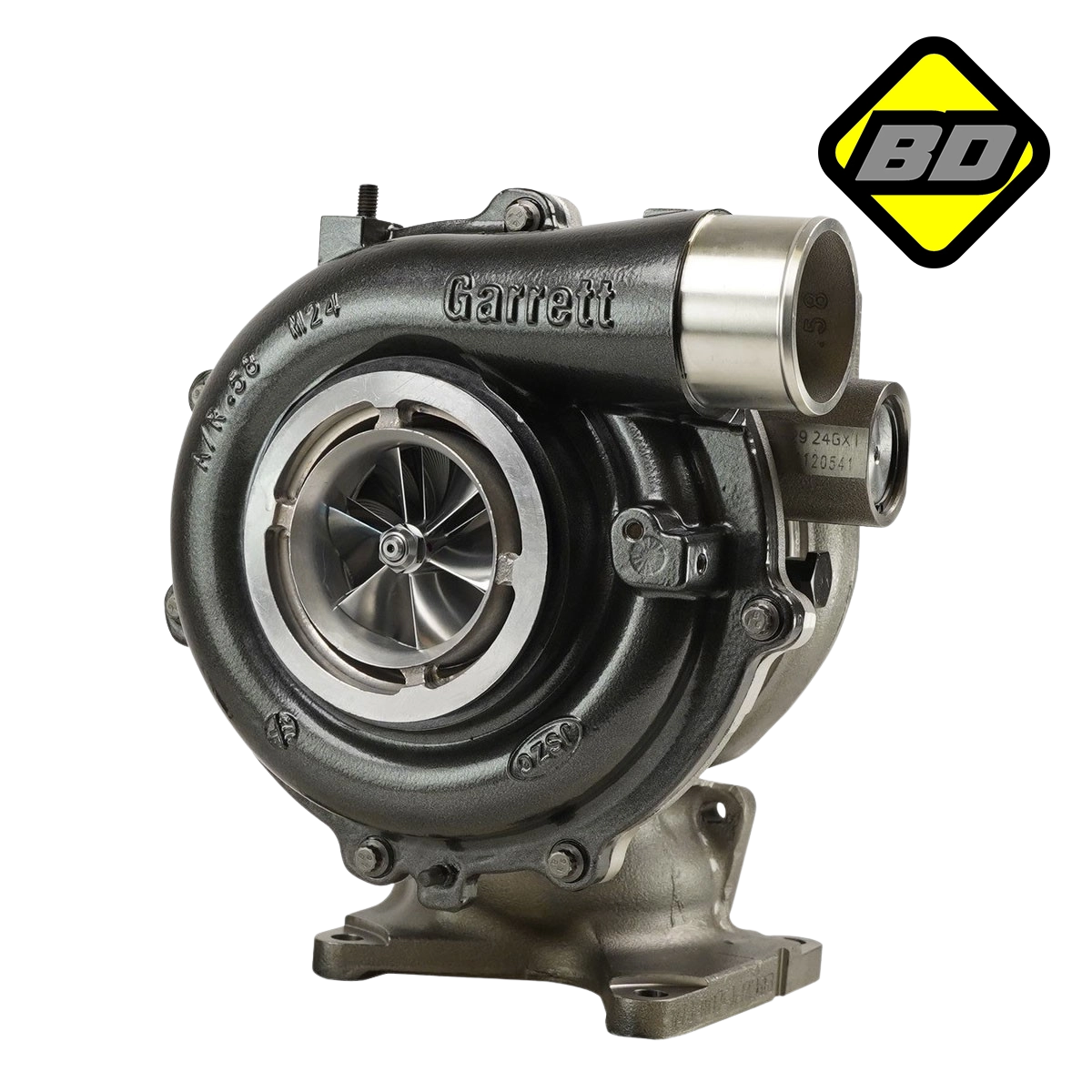

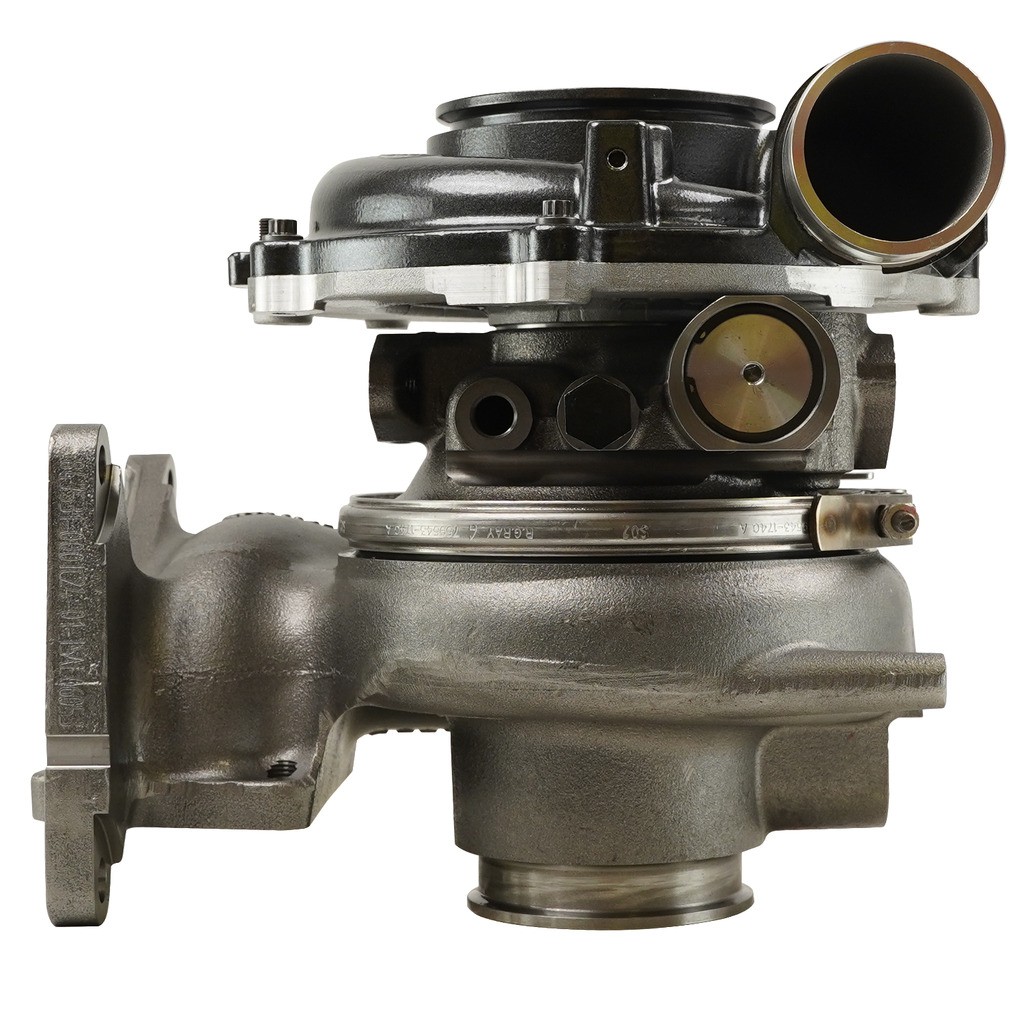

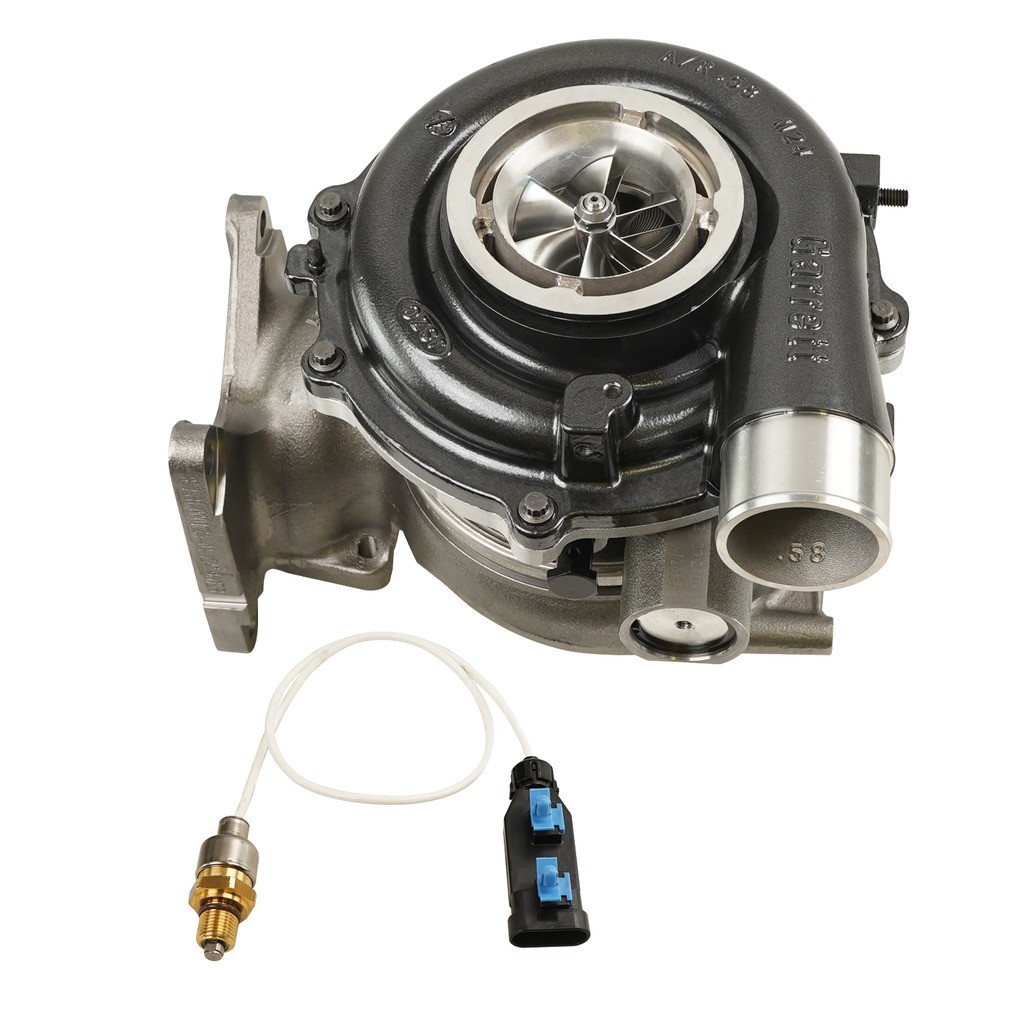

BD Duramax Screamer Turbo - Chevy 2004.5-2010 LLY/LBZ/LMM
BD Duramax Screamer Turbo - Chevy 2004.5-2010 LLY/LBZ/LMM 2500/3500 Silverado/Sierra/Express/Savana
- 65mm Billet compressor wheel
- Outflows the Garrett Powermax stage 1
- New technology 'mixed flow' larger turbine wheel increases turbo flow and efficiency
- Spools the exact same as an OEM Duramax LBZ turbo

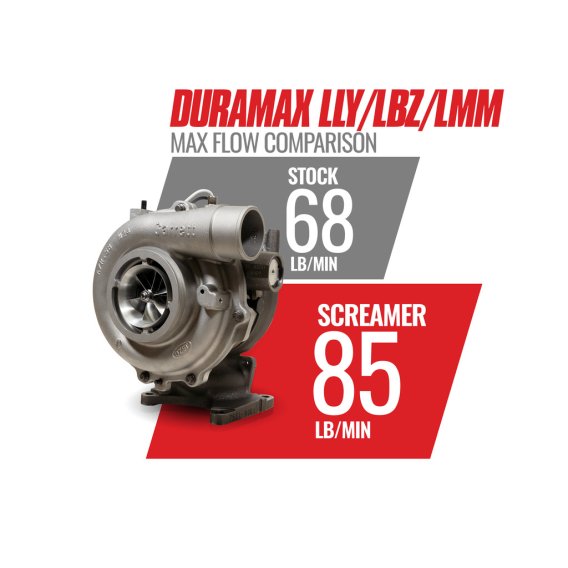

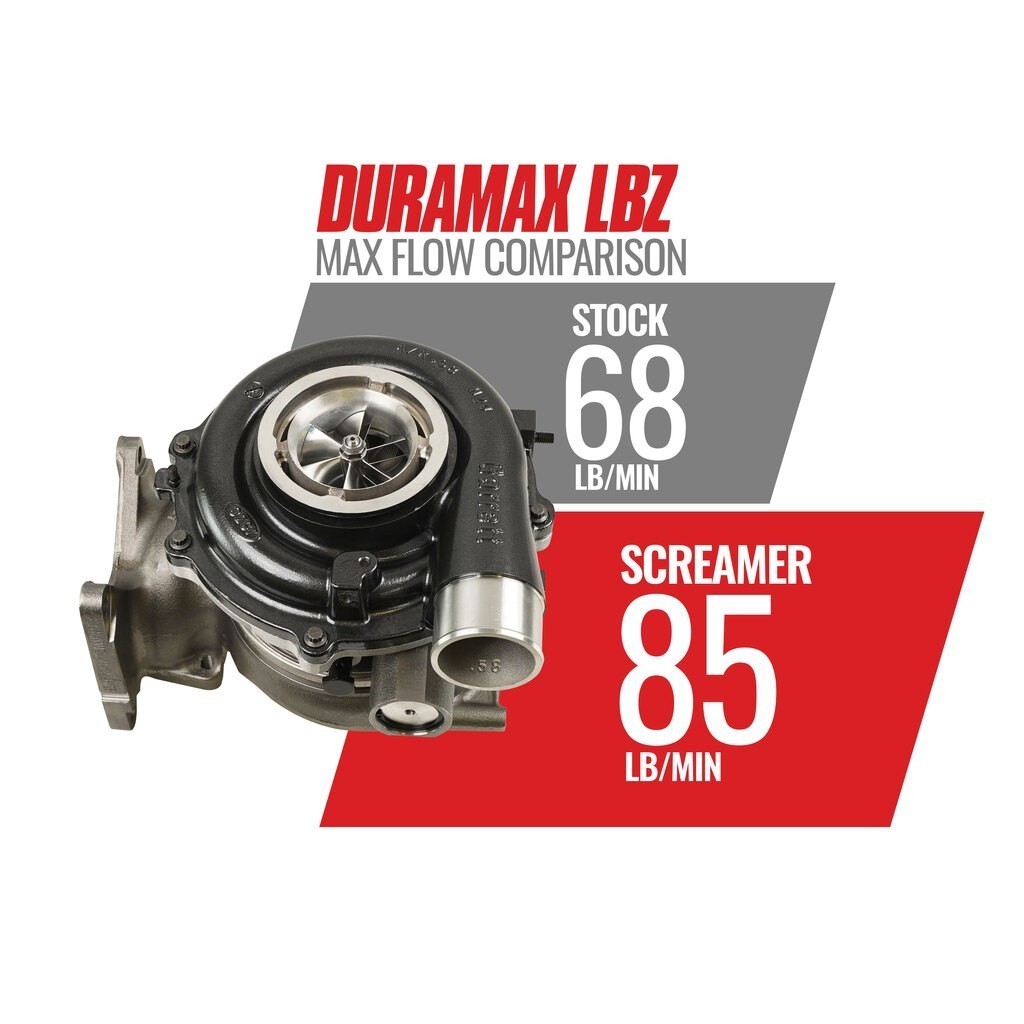

- Up to 85lb/min of airflow
- More boost, lower drive pressure and lower EGT's
- Suggested max 690 crank HP
- VSR high speed balanced
- LLY requires 771864-0001 adapter

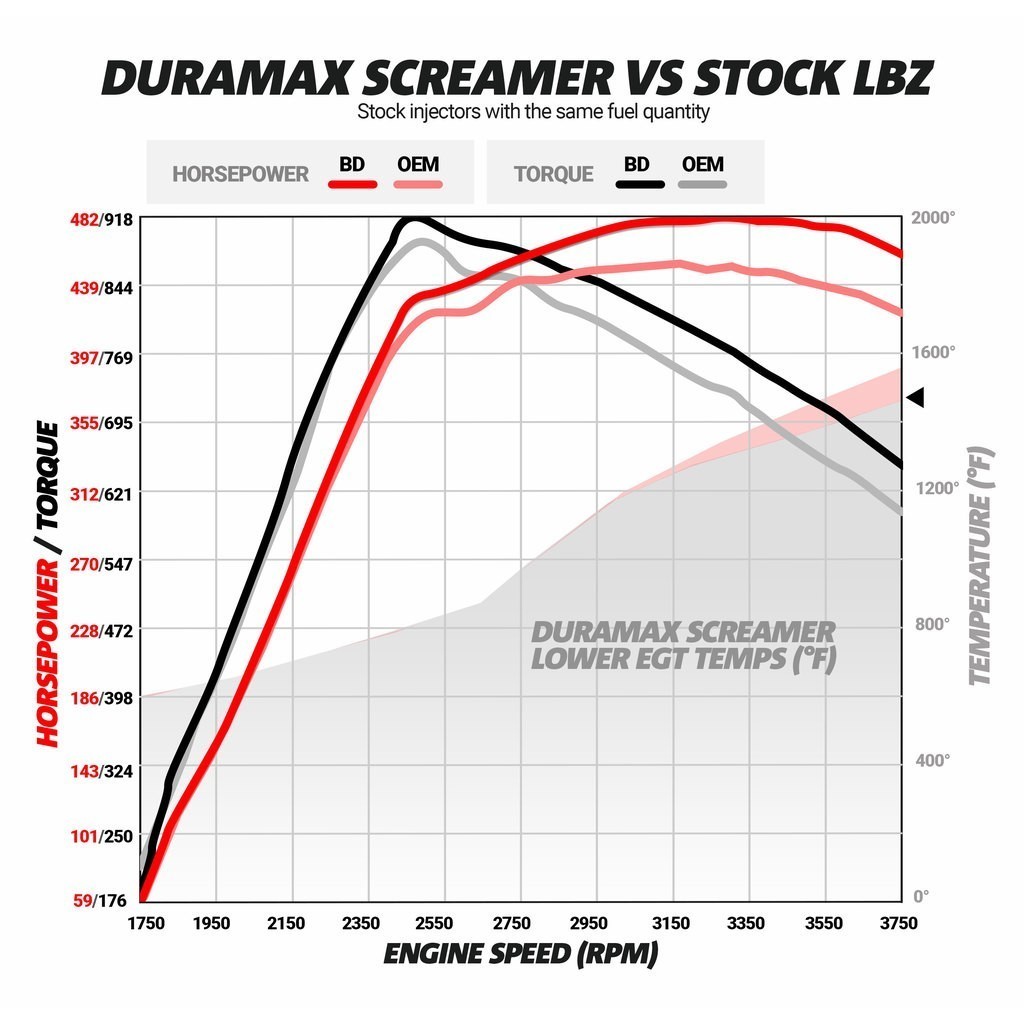

The drop-in, stock-appearing Screamer turbo for the 2004.5-2016 Duramax utilizes modern turbo technology that delivers increased airflow without compromising on low end response. Boost pressure can be increased to improve horsepower potential. Tests with the same tune and fuel quantity showed increased power output and a decrease in peak EGT's. The Duramax Screamer turbo works with any "box" tuner with further improvements achieved with custom tuning.
- CategorySingle Turbo Performance
- EngineDuramax 6.6L 07.5-10 LMM
- MakeChevy/GM
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1057938
- BrandBD Diesel
- Extended information
- EmissionsNot Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2004 | Chevrolet | Silverado 2500 HD | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2004 | GMC | Sierra 2500 HD | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2004 | GMC | Sierra 3500 | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2005 | Chevrolet | Silverado 2500 HD | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2005 | Chevrolet | Silverado 3500 | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2005 | GMC | Sierra 2500 HD | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2005 | GMC | Sierra 3500 | LLY engine; 2004.5-2005 LLY Turbos require 771864-0001 Adapter Cable;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | Chevrolet | Express 2500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | Chevrolet | Express 3500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | Chevrolet | Silverado 2500 HD | LLY engine; LBZ engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | Chevrolet | Silverado 3500 | LLY engine; LBZ engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | GMC | Savana 2500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | GMC | Savana 3500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | GMC | Sierra 2500 HD | LLY engine; LBZ engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2006 | GMC | Sierra 3500 | LLY engine; LBZ engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Silverado 2500 HD | LBZ engine; LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Express 2500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Express 3500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Silverado 3500 HD | LBZ engine; LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | Chevrolet | Silverado 3500 Classic | LBZ engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | GMC | Savana 2500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | GMC | Savana 3500 | LLY engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | GMC | Sierra 2500 HD | LBZ engine; LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2007 | GMC | Sierra 3500 HD | LBZ engine; LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2008 | Chevrolet | Silverado 2500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2008 | Chevrolet | Silverado 3500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2008 | GMC | Sierra 3500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2008 | GMC | Sierra 2500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2009 | Chevrolet | Silverado 3500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2009 | Chevrolet | Silverado 2500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2009 | GMC | Sierra 2500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2009 | GMC | Sierra 3500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2010 | Chevrolet | Silverado 2500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2010 | Chevrolet | Silverado 3500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2010 | GMC | Sierra 2500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
2010 | GMC | Sierra 3500 HD | LMM engine;; EngineBase: 6.6 L (403 cid) (6599 cc) V8 Bore: 4.06 in.(103.0mm) Stroke: 3.90 in.(99.0mm); |
