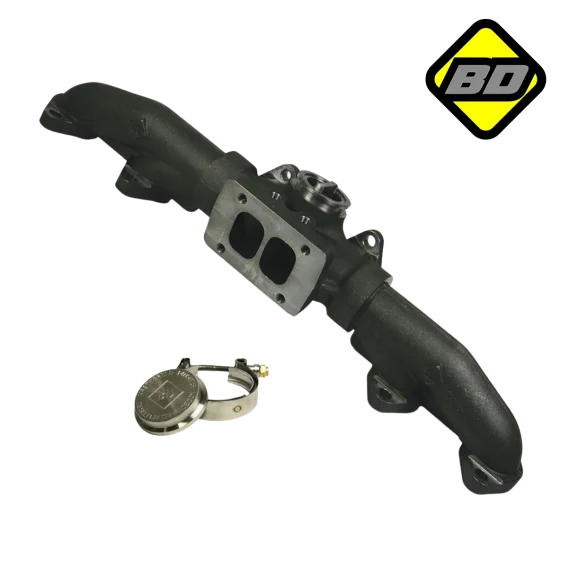

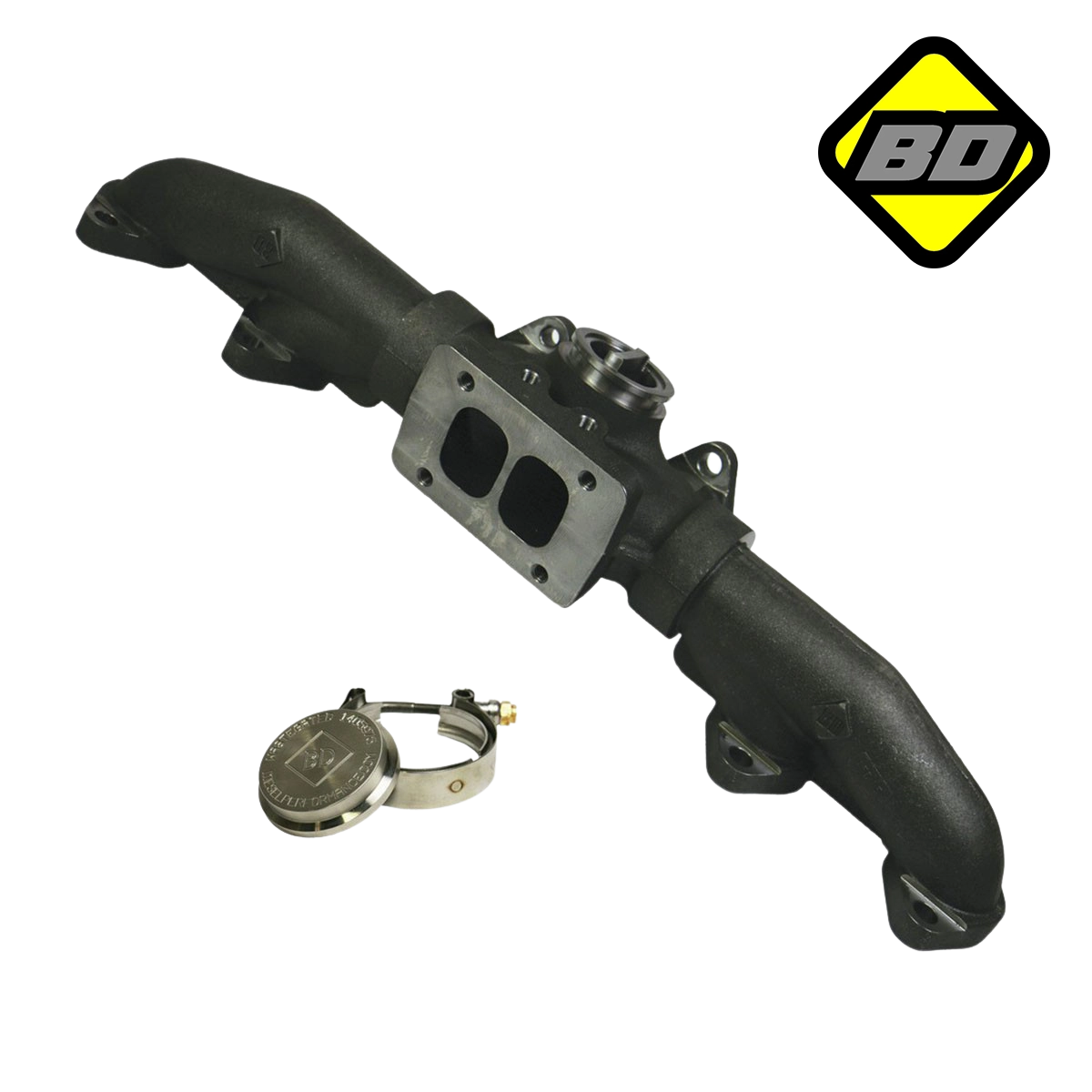

        BD Cummins 20-degree Wastegated T6 Exhaust Manifold Dodge 1998.5-2007 5.9L

        SKU: 1045996-T6-BKJX

        BD Cummins 20-degree Wastegated T6 Exhaust Manifold Dodge 1998.5-2007 5.9L

        • Gasket, Bolt and Spacers kits are available separately
        • Better cylinder exhaust evacuation to keep EGTs down
        • Combustion Pulse remains constant with the W/G valve closed
        • Machined for use with 45mm Hyper Gate or Turbo Smart
        • Block off plate and clamp provided
        • Gate port area is 1.67 sq. in. - 33% of T4 / 12% of T6 inlet
        • Improves turbo response
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $870.95

        Protect your turbocharger with a performance manifold designed with a waste gate in mind. Cast and machined wastegate port completely divides the manifold into two sections to retain the divided pulse manifold flow. Internal geometry is optimized through Computational Fluid Dynamics (CFD), which increases flow throughout the RPM band for your high flowing T4 of T6 based turbo. Thick-wall cast high silicone ductile iron retains heat energy. Precision slip joints allow the manifold to expand and contract, which reduces cyclic thermal fatigue and greatly increase manifold longevity. 1/8-NPT ports are pre-drilled and tapped.

          • SKU
            1045996-T6-BKJX
          • Weight
            27 lbs
          • Dimensions (L x W x H)
            27 x 6.5 x 5 in
          • Barcode
            00990011404914
          • Manufacturer Part #
            1045996-T6
        • Category
          Manifolds & Up-pipes
        • Engine
          6.7L Cummins 13-18
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1045996-WGK
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Off Road - This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-pollution-controlled vehicles only.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        1998DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port; 24-valve engine;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        1998DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port; 24-valve engine;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        1999DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        1999DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2000DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2000DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2001DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2001DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2002DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2002DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2003DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2003DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2004DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2004DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2005DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2005DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2006DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2006DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2007DodgeRam 2500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2007DodgeRam 3500T6 Turbo Mount Flange; 45mm Wastegate capped port;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
