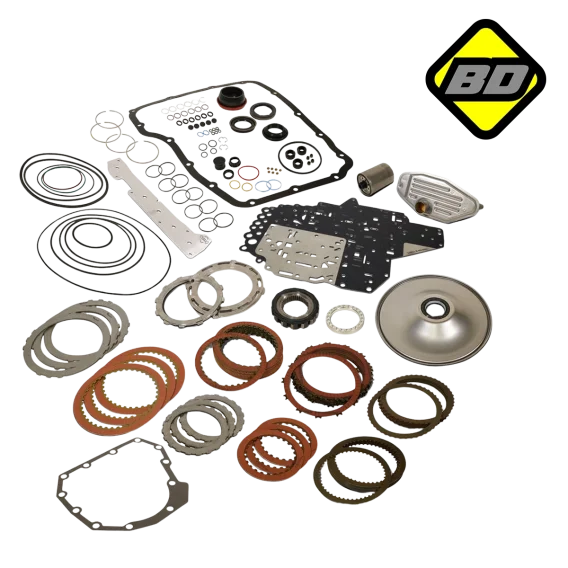

        BD Build-It Dodge 68RFE Trans Kit 2019+ Stage 3 Master Kit c/w ProTect 68

        SKU: 1062027-BKJX

        BD Build-It Dodge 68RFE Trans Kit 2019+ Stage 3 Master Kit c/w ProTect 68

        • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
        • Qty 15: OD Clutch Friction
        • Qty 15: OD Clutch Steel
        • Qty 7: Reverse Clutch Friction
        • Qty 7: Reverse Clutch Steel
        • Filter - Pan
        • Filter - Spin On
        • Pump Cover
        • Billet OD/Reverse Selector Plate
        • Billet OD/UD Reaction Plate
        • Stiffer Billet Intermediate Reaction Plate
        • Heavy duty accumulator plate to prevent accumulator blowout
        • Stiffer Billet OD/Rev Reaction Plate
        • Billet 4C Spring Retaining Ring
        • Gasket - Oil Pan
        • Gasket - Solenoid Pack
        • Gasket Kit - Oil Cooler
        • Seal - Solenoid Pack Connector
        • Seal - 4wd Output Shaft
        • Seal - 2wd Output Shaft
        • Seal - Input Shaft
        • Seal Kit - 2-4C
        • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
        • Seal Kit - Input Drum
        • Seal Kit - Solenoid Pack
        • Seal Kit - Internal
        • Seal Kit - External
        • O-Ring - pump Cover
        • Check balls
        • Upgraded One Way Clutch/Sprag
        • Over Drive clutches 17% increase and Under Drive clutches 20% increase
        • Qty 3: 2C Clutch Friction
        • Qty 3: 2C Clutch Steel
        • Qty 3: 4C Clutch Friction
        • Qty 3: 4C Clutch Steel
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $1712.95

        Are you looking to rebuild your own transmission, and need some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets, and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is essentially everything we put in our own transmission rebuilds.

          • SKU
            1062027-BKJX
          • Weight
            21 lbs
          • Dimensions (L x W x H)
            23 x 16 x 11 in
          • Barcode
            00990011409490
          • Manufacturer Part #
            1062027
        • Category
          Overhaul Kits & Parts
        • Engine
          6.7L Cummins 19-up
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Suggested Product
          1062035
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2019Ram2500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2019Ram3500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2020Ram3500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2020Ram2500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2021Ram2500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2021Ram3500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2022Ram3500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2022Ram2500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2023Ram3500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2023Ram2500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2024Ram3500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2024Ram2500Stage 3; 68RFE transmission;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
