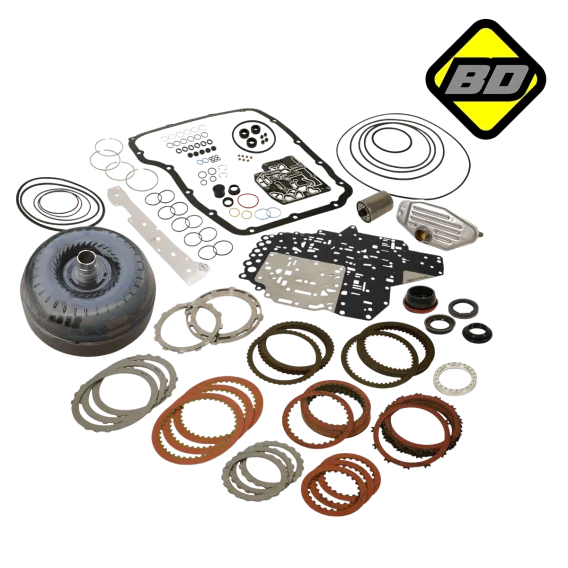

        BD Build-it Dodge 68RFE kit 2007.5-18 Stage 2 w/Torque Converter

        SKU: 1063022-BKJX

        BD Build-it Dodge 68RFE kit 2007.5-18 Stage 2 w/Torque Converter

        • BUILD-IT KIT:
        • Filter - Pan, Spin On
        • Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
        • Stiffer Billet Intermediate Reaction Plate, OverDrive/Rev Reaction Plate
        • Billet 4C Spring Retaining Ring
        • Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
        • Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
        • Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
        • O-Ring - pump Cover
        • TORQUE CONVERTER:
        • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
        • Good for 550 flywheel HP
        • Ideal replacement for stock torque converter
        • High performance Enhanced stall stator
        • Great for street and towing applications
        • Lower rpm response than the stock converter
        • Furnace brazed turbine fins for improved fluid coupling efficiency
        • Damper springs replaced
        • 11.625 inch dual-clutch
        • Billet forged front cover with thicker walls and stronger mounting pads
        • Return label included to ship back core for free
        • Heavy duty accumulator plate to prevent accumulator blowout
        • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
        • Over Drive clutches 17% increase and Under Drive clutches 20% increase
        • Qty 2: Check Balls 1/4in
        • Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
        • Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
        • Qty 15: OD Clutch Friction, OD Clutch Steel
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $2818.95 +$850.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds. The BD 68RFE ProForce Torque Converter is designed for stock and modified 6.7L Diesels, from 350 to 550 flywheel horsepower, used in street and towing applications, at a great price. Featuring BD's exclusive "Enhanced Stall" performance cast aluminum stator that improves efficiency and durability for low RPM response in stock to higher horsepower applications. The 68RFE ProForce uses a billet forged front cover machined with thicker walls and stronger mounting pads and a 11.625 inch dual-clutch. The turbine fins are furnace-brazed for improved fluid coupling efficiency and new piston damper springs are installed for longevity and durability.

          • SKU
            1063022-BKJX
          • Weight
            94 lbs
          • Barcode
            00990011410007
          • Dimensions (L x W x H)
            22 x 15 x 21 in
          • Manufacturer Part #
            1063022
        • Category
          Overhaul Kits & Parts
        • Engine
          6.7L Cummins 13-18
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Box 1 Height
          10.00
        • Box 1 Length
          22.00
        • Box 1 Weight
          20.00
        • Box 1 Width
          15.00
        • Box 2 Height
          11.00
        • Box 2 Length
          15.00
        • Box 2 Weight
          74.00
        • Box 2 Width
          15.00
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number.
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2007DodgeRam 2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2007DodgeRam 3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2008DodgeRam 2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2008DodgeRam 3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2009DodgeRam 2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2009DodgeRam 3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2010DodgeRam 2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2010DodgeRam 3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2011Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2011Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2012Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2012Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2013Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2013Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2014Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2014Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2015Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2015Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2016Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2016Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2017Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2017Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2018Ram2500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
        2018Ram3500Stage 2 Kit; 68RFE transmission; Comes with exchange Torque Converter; Tuner or module is required to increase transmission pump pressures; Recommend Option - BD Heavy Duty Transmission Pan;; EngineBase: 6.7 L (408 cid) L6 Bore: 4.2126 in.(107.0mm) Stroke: 4.8819 in.(124.0mm);
