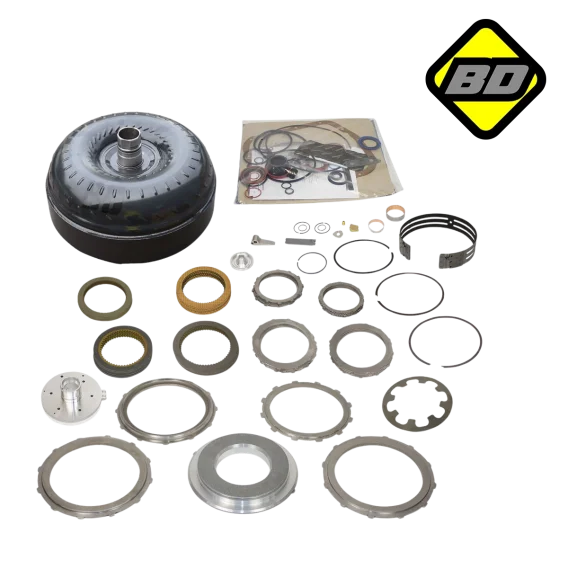

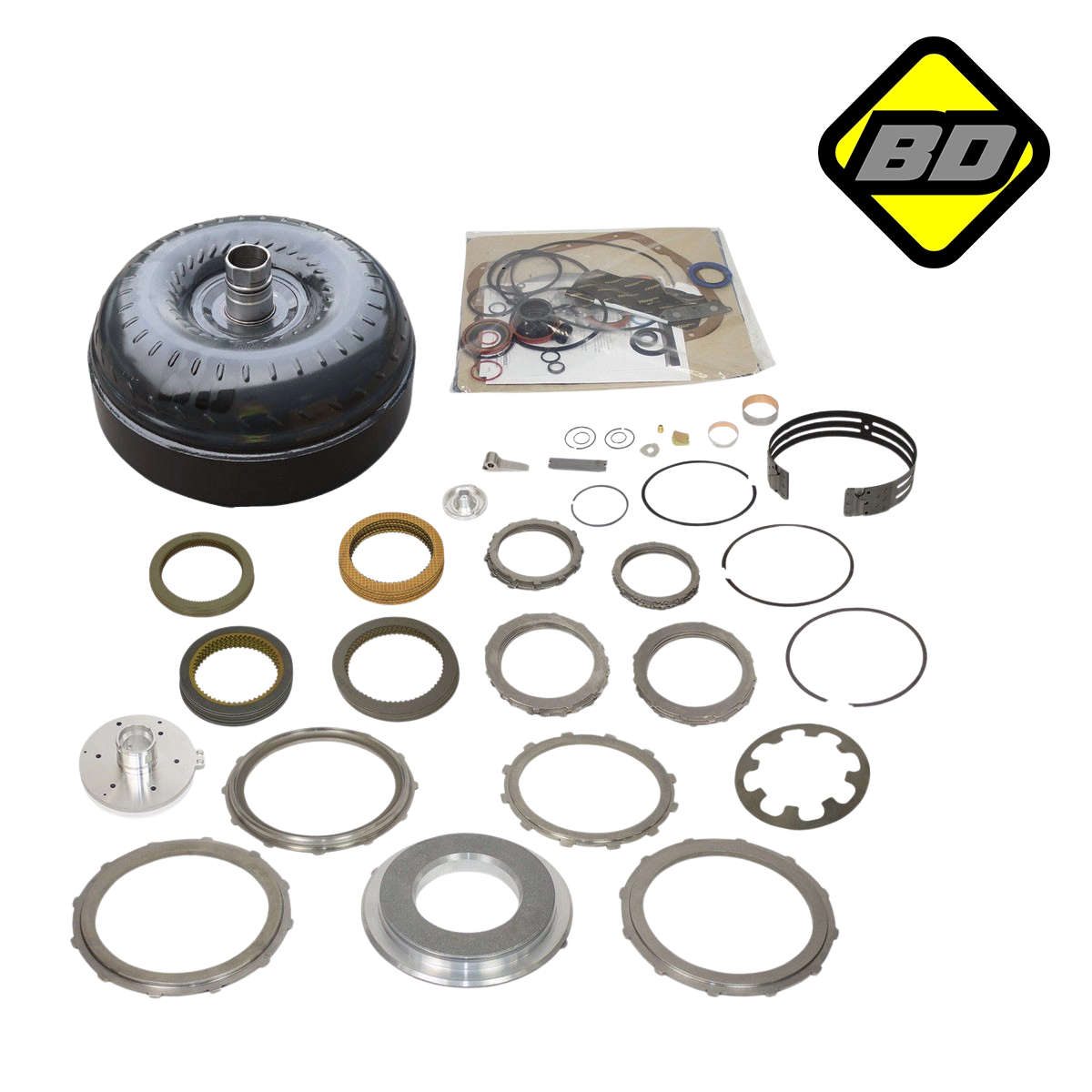

BD Build-it Dodge 48RE Kit 2003-2007 Stage 4 w/Torque Converter
Next image
        • BD Build-it Dodge 48RE Kit 2003-2007 Stage 4 w/Torque Converter
        • BD Build-it Dodge 48RE Kit 2003-2007 Stage 4 w/Torque Converter
        • BD Build-it Dodge 48RE Kit 2003-2007 Stage 4 w/Torque Converter

        BD Build-it Dodge 48RE Kit 2003-2007 Stage 4 w/Torque Converter

        SKU: 1063014-BKJX

        BD Build-it Dodge 48RE Kit 2003-2007 Stage 4 w/Torque Converter

        • BUILD-IT KIT:
        • Shifter Bracket & Lever Kit - 4.2 Ratio
        • Gasket Kit - Overhaul
        • Pressure Plate - Dir/Fwd (Frt) .145", Dir/Fwd (Frt) .185"
        • BD Pressure Plate Forward (Rr) Beveled Machined, O/D Brake F&R Machined
        • BD Piston - Dir. Clutch (Frt) Machined
        • Piston Retainer Kit
        • Servo Cover Ring, Piston Cover
        • Snap Ring - Direct Clutch .062, Direct Clutch .074, Direct Clutch .088
        • Rear Clutch Piston Spring
        • Steel - Fwd (Dir/Hi/Rev), O/D Brake, O/D Dir .525", Frt (Dir/Hi/Rev) Oversize
        • Same parts used in our own performance transmissions
        • Strut - Front Band
        • Washer - Int. Shaft Thrust .052
        • TORQUE CONVERTER:
        • Enhanced Stall - Street/Towing applications
        • HD springs absorb shock of engagement
        • Increased clutch count
        • Stamp forged 1-piece cover
        • Eliminates warpage from clutch heat
        • Taller cover can be rebuilt more often
        • All kits include the basic rebuild parts and gaskets
        • Trapezoid teeth design
        • Engineered tighter tolerances
        • Self-centering trapezoid teeth design increases contact decreases wear and chatter
        • Thrust bearings - not plastic thrust washers
        • Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
        • Cast stator designs maximizes torque
        • New sprag components ensure long term durability
        • Furnace brazed turbine fins for improved fluid coupling efficiency
        • Reduced overall weight by 12lbs compared to competitors
        • Free shipping for returning core! (details included with product)
        • Band - High Temp/Energy - Raybestos
        • Band Anchor - Billet
        • Accumulator Piston - Billet Dual Ring
        • Bushing - Front Clutch Drum 0.85, Pump - Bronze W/Dimples
        • Clutch Disc
        • Friction - Front (Dir/Hi/Rev) Allomatic, O/D Allomatic, O/D Direct Borg Warner, Rear (Fwd) Borg Warner
        0.0
        BD Diesel
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: BD Diesel
        • $3694.95 +$850.00 Core Charge
          Core Charge

          A core is some portion of a part that can be recycled or reused by the manufacturer. This helps to reduce product cost and is good for our environment. For this reason a product with a core has an additional charge associated with it. If the old part is returned in reusable condition, the core charge will be refunded.

        Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds. Not all multi-disc converters are created equal and with BD's ProForce 3D, less is more. Our in-house CNC machined billet cover is designed to prevent warping and improper balancing. With our cover design, we were able to increase strength while maintaining the factory height. We have engineered the clutch piston and damper assembly for increased strength, while retaining smooth and reliable vibration damping. With self-centering trapezoid clutch teeth design, our clutch packs ensure proper alignment and less wear resulting a longer converter life cycle.

          • SKU
            1063014-BKJX
          • Weight
            89 lbs
          • Barcode
            00990011410052
          • Dimensions (L x W x H)
            17 x 15 x 18 in
          • Manufacturer Part #
            1063014
        • Category
          Overhaul Kits & Parts
        • Engine
          5.9L Cummins 04.5-07
        • Make
          Dodge
        • Prop 65 (C, R or CR)
          CR
        • Prop 65 - Short Label
        • Prop 65 Yes/No
          Yes
        • Box 1 Height
          7.00
        • Box 1 Length
          17.00
        • Box 1 Weight
          20.00
        • Box 1 Width
          14.00
        • Box 2 Height
          11.00
        • Box 2 Length
          15.00
        • Box 2 Weight
          69.00
        • Box 2 Width
          15.00
        • Brand
          BD Diesel
        • Extended information
          • Emissions
            Emission verification to be determined in ACES, vehicle application data.
          • Life Cycle Status
            Available To Order
        Customer reviews
        Please sign in to add review
        There are no comments yet. Be the first to leave a comment

        Shipping Times

        Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.

        Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.

        Where Do We Ship

        We will ship our products within Canada and the United States.

        Please Note: There are limitations what can be shipped to the United States.

        Damaged Shipments

        We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.

        We accept the following payment methods:


        Return Policy

        It happens sometimes we would like to return it. Here are our return rules:

        • Prior to any return you must contact us and get an approval for a  RMA number.
        • Product must be unopened and have no damage.
        • You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
        • Regular products are subject to a 5% Restocking fee.
        • Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
        • Electronics & Tuning is a final sale and cannot be returned.
        • Fitment Type
          Vehicle Specific
        YearMakeModelNotes
        2003DodgeRam 2500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2003DodgeRam 3500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2004DodgeRam 2500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2004DodgeRam 3500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2005DodgeRam 3500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2005DodgeRam 2500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2006DodgeRam 2500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2006DodgeRam 3500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2007DodgeRam 2500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
        2007DodgeRam 3500Stage 4 Master Rebuild Kit; Comes with exchange Torque Converter; 48RE transmission;; EngineBase: 5.9 L (359 cid) L6 Bore: 4.02 in.(102.0mm) Stroke: 4.72 in.(120.0mm);
