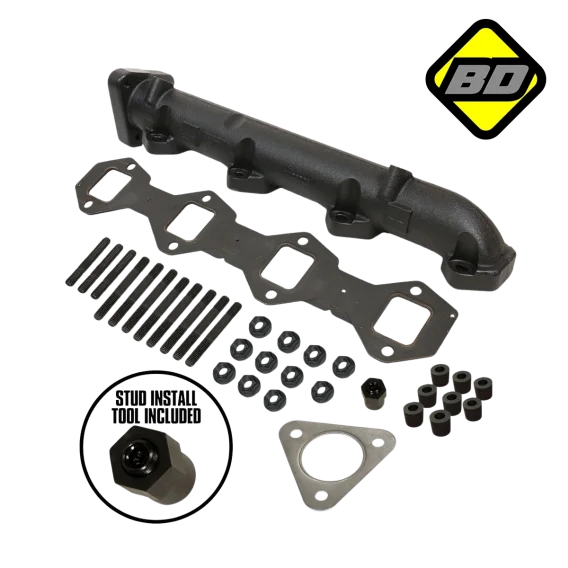

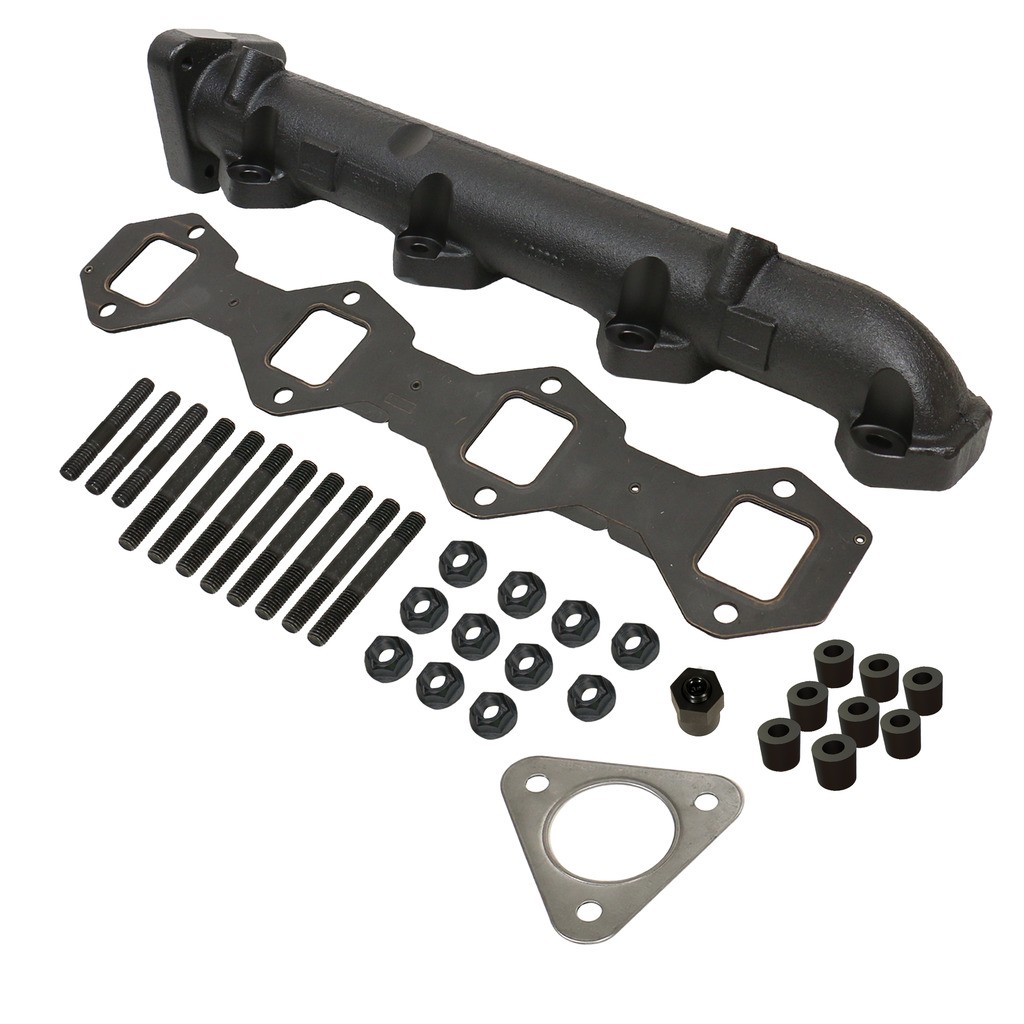

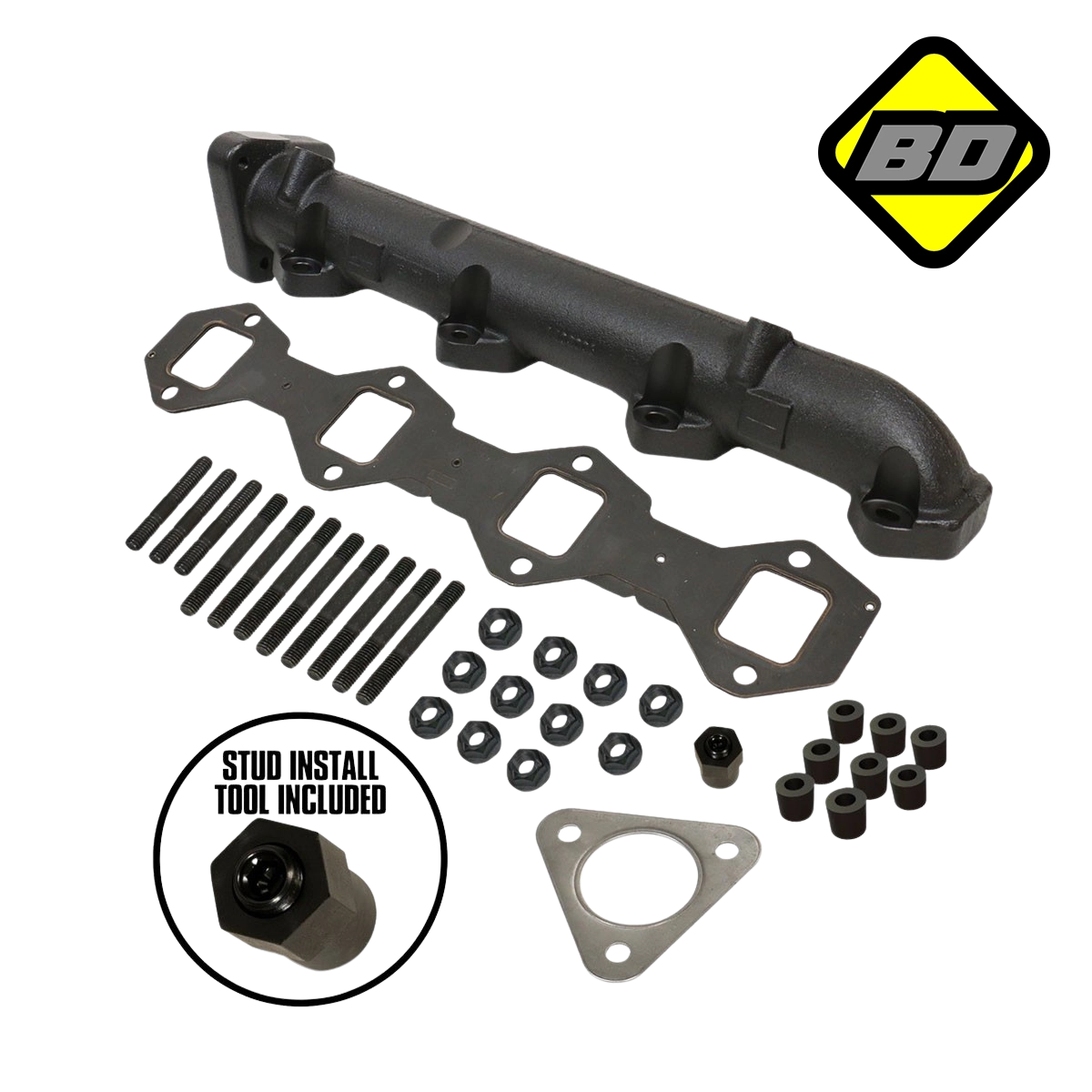

BD 6.7L Powerstroke Driver's Side Exhaust Manifold Kit - Ford 2011-2019
BD 6.7L Powerstroke Driver's Side Exhaust Manifold Kit - Ford 2011-2019 F250/F350/F450/F550 Super Duty
- Perfect for BD Scorpion Turbo Kit
- High temperature POR 15 black coated
- Includes 16 studs and spacers for BD Scorpion Kits
- Includes exhaust manifold and cross over tube gaskets
- High-silicon ductile cast iron
- 75% thicker walls retain heat and prevents warping
- Machined thicker bolting flange
- Includes the longest stud and spacer kit that fits across all 8-cylinders
- Longer exhaust studs improve thermal durability
- Thick spacers are black oxide coated
- Designed using computation fluid dynamics
- Exhaust ports are gasket matched

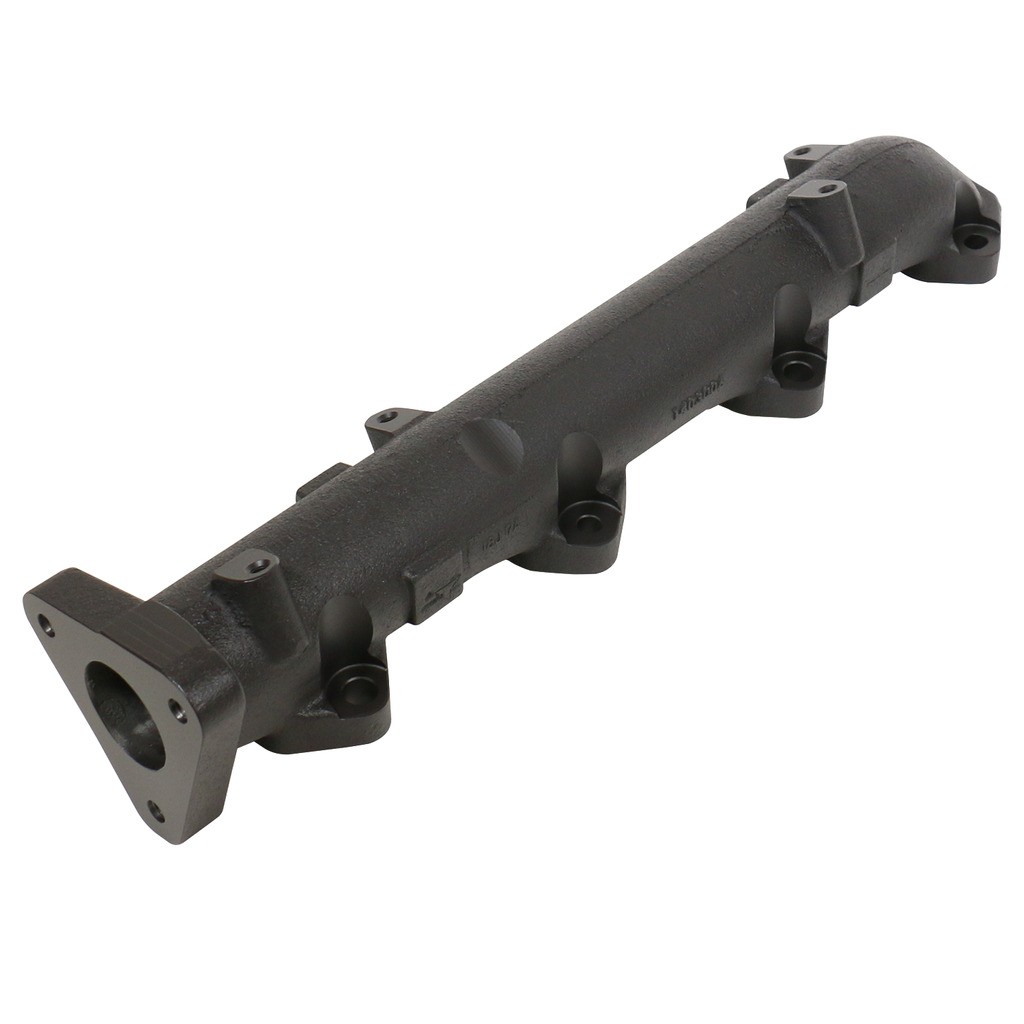

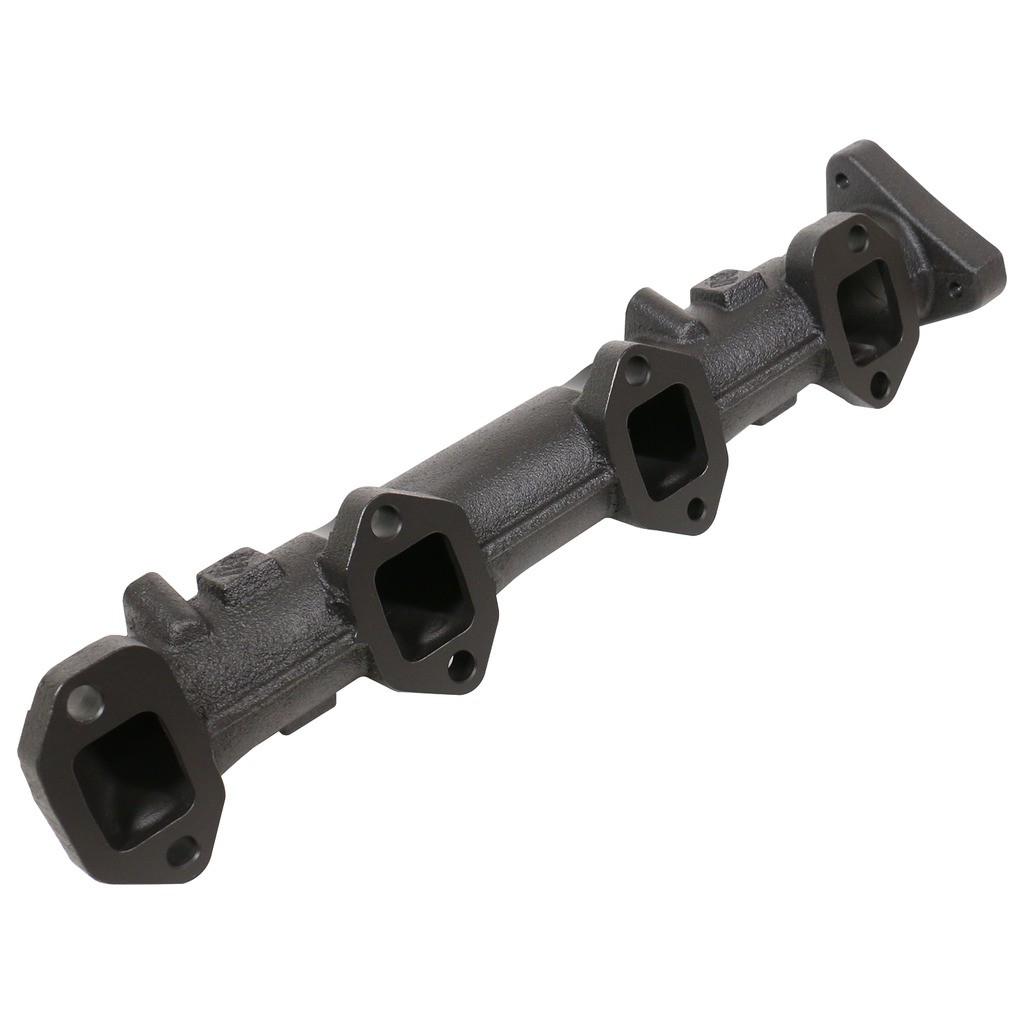

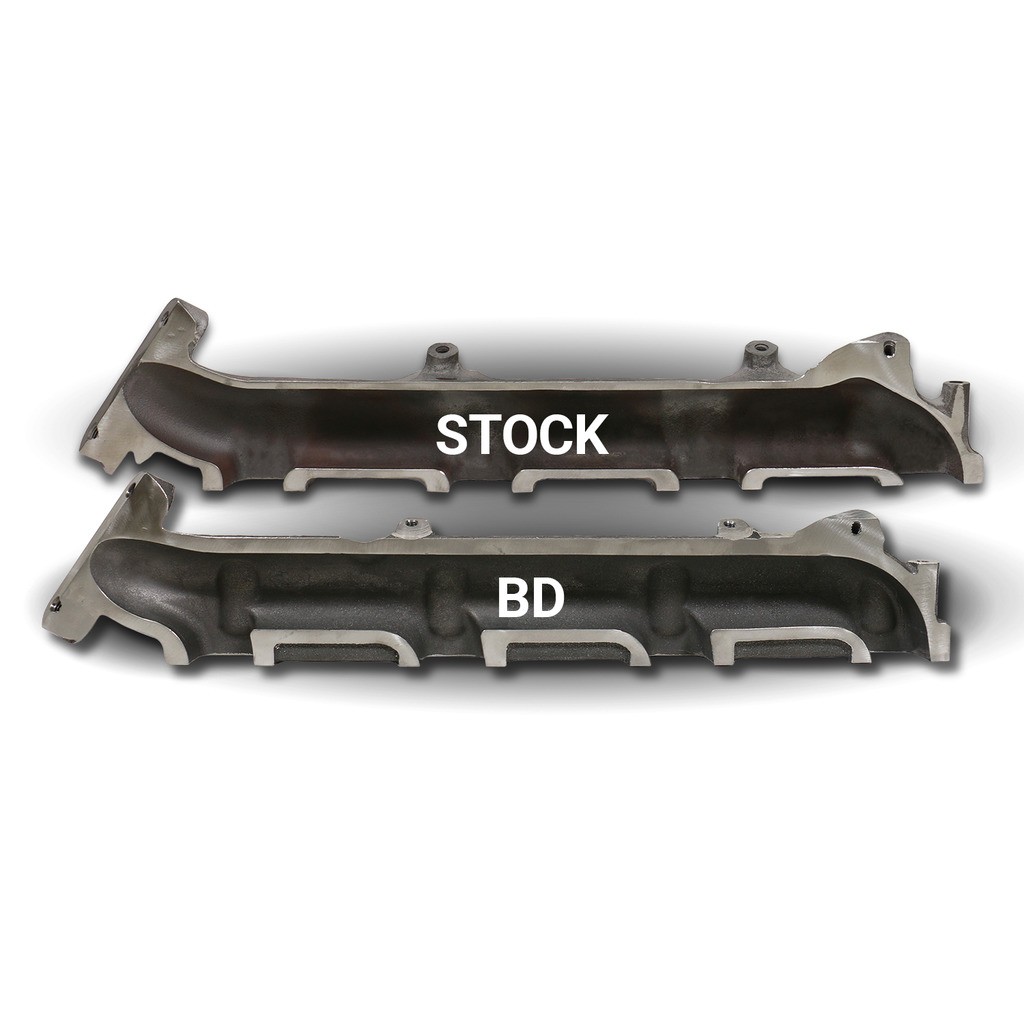

BD focused on solving one of the Ford 6.7L common failures, the exhaust manifolds. Crafted with a heavy duty 0.275" thick-walled Hi-Silicon ductile casting, this makes these manifolds 75% thicker to combat cracking due to high exhaust temperatures. Thermal durability has been improved with longer exhaust studs and spacers plus thicker, more durable machined bolting flanges. Fully EGR compatible, BD's exhaust manifold set is the perfect replacement for reliability and peace of mind.
- CategoryManifolds
- Engine6.7L Powerstroke 17-up
- MakeFord
- Prop 65 (C, R or CR)CR
- Prop 65 - Short Labelbddiesel_prop65_warning.png
- Prop 65 Yes/NoYes
- Suggested Product1045804
- BrandBD Diesel
- Extended information
- EmissionsEmission verification to be determined in ACES, vehicle application data.
- Life Cycle StatusAvailable To Order
Shipping Times
Most customers will see their parts within 3-5 business days. We will primarily ship with Purolator ground & DHL Express to ensure the fastest shipping possible.
Please Note: These are only estimates and shipping time may vary depending on your location, out of country and rural locations expect longer wait times.
Where Do We Ship
We will ship our products within Canada and the United States.
Please Note: There are limitations what can be shipped to the United States.
Damaged Shipments
We provide the option to purchase insurance as we are not responsible for any damage while with a courier, we don’t often see issues, but it does happen. If you purchased insurance we will put in a claim, if no insurance was purchased there will be no refunds or exchanges.
Return Policy
It happens sometimes we would like to return it. Here are our return rules:
- Prior to any return you must contact us and get an approval for a RMA number.
- Product must be unopened and have no damage.
- You must pay for the shipping back, please insure so if anything happens you can make a claim, we are not responsible for damage during shipping and is the sole responsibility of the customer.
- Regular products are subject to a 5% Restocking fee.
- Items over 50 lbs. or special orders will be subject to a 20% Restocking fee.
- Electronics & Tuning is a final sale and cannot be returned.
- Fitment TypeVehicle Specific
Year | Make | Model | Notes |
---|---|---|---|
2011 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2011 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2011 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2011 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2012 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2012 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2012 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2012 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2013 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2013 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2013 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2013 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2014 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2014 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2014 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2014 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2015 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2015 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2015 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2015 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2016 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2016 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2016 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2016 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2017 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2017 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2017 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2017 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2018 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2018 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2018 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2018 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2019 | Ford | F-250 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2019 | Ford | F-350 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2019 | Ford | F-450 Super Duty | CARB EO D-553-17; Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
2019 | Ford | F-550 Super Duty | Includes longer studs and spacers plus all gaskets;; EngineBase: 6.7 L (406 cid) (6651 cc) V8 Bore: 3.90 in.(99.1mm) Stroke: 4.25 in.(107.9mm); |
