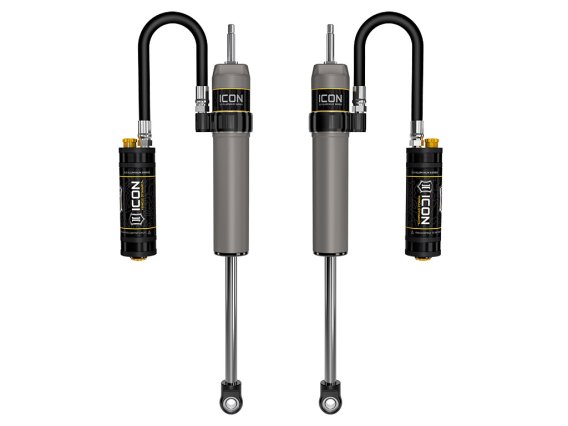

ICON 2005-2024 Ford Super Duty 4WD, 0-2.5” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair

        SKU: FRDK-67800CP

        ICON 2.5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street. With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.

        • Nitrogen charged monotube design with remote reservoir
        • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
        • 100% Revalveable
        • 100% Rebuildable
        • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
        • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
        • 6061 aircraft grade aluminum CNC machined components
        • 7/8” diameter induction hardened, chrome plated shock shaft
        • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
        • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
        • PTFE lined spherical bearings and application specific mounting hardware
        • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
        0.0
        ICON Vehicle Dynamics
        Vehicle Specific
        Check if this part fits your vehicle.
        • Brand: ICON Vehicle Dynamics
        • $2019.95

        Only 2 left in stock

        ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

          • SKU
            FRDK-67800CP
          • Weight
            28 lbs
          • Dimensions (L x W x H)
            39 x 15 x 9 in
          • Barcode
            00840103405919
          • Manufacturer Part #
            67800CP
        • Brand
          ICON Vehicle Dynamics
        • Extended information
          • Emissions
            Info missing
          • Life Cycle Status
            Available To Order
